Summary of Contents for Fellowes ESI LOTUS-DX-BLK

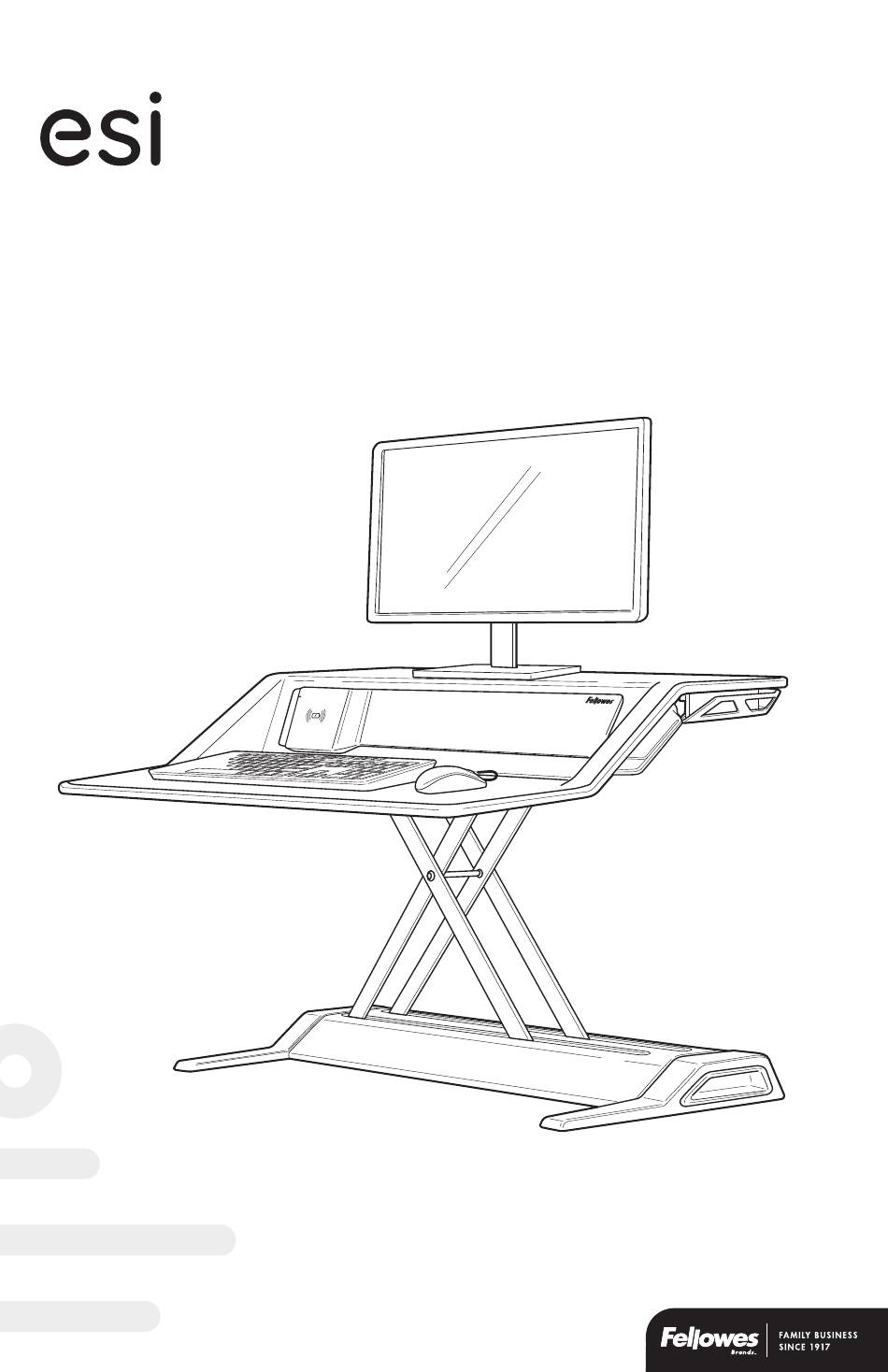

- Page 1 Lotus ™ assembly and operation instructions sit-stand workstation MODEL #’s: LOTUS-DX-BLK LOTUS-DX-WHT...
-
Page 2: Safety Warnings
Lotus DX safety warnings ≤ 13.6 Kg ≤ 30 lbs. ≤ 2.2 Kg ≤ 5 lbs. safety instructions/warning Read and follow all instructions and warning before use. • WARNING: PINCH POINT! KEEP HANDS CLEAR OF SUPPORT BARS DURING OPERATION. SERIOUS INJURY MAY OCCUR. •... -
Page 3: Product Parts
Lotus DX product parts contents workstation cable zip/tool cord funnel power cord power supply USB cord velcro Only compatible with Lotus monitor arm kit. capabilities Port Description Specifications Data Transfer Type B Connector (to computer) Rear USB Barrel Connector Power (8A) USB Port (Data Transfer) USB 3.0, 900mA USB Port (Data Transfer) -
Page 4: Cord Management
Lotus DX cord management set-up continued STEP 2 STEP 3 Place your monitor, keyboard and mouse on the Using both hands, push down slightly and engage workstation. Use the enclosed Velcro to secure both levers to raise the workstation to the highest the monitor(s) to the workstation. - Page 5 Lotus DX cord management step 2b Continue routing the cords around the workstation through the cord channel to the rear. Insert the cord funnel in 1 of 2 locations on the cord channel. Choose the location that will best accommodate your setup. step 2c The rear USB ports are meant for data transfer devices.
-
Page 6: Tension Adjustment
Lotus DX adjustments tension adjustment Patent pending Smooth Lift Technology™ makes it effortless to raise and lower your sit-stand. Place items onto the workstation and raise up to the highest position. Lotus is shipped at the lowest setting which will help offset 10lbs./4.5kg. -
Page 7: Usage Guidelines
Lotus DX usage guidelines usage guidelines NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 & 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 8: Warranty
To make a warranty claim, contact ESI at 800-833-3746 or customerservice@esiergo.com. You must provide proof of purchase, such as the original purchase order number. © 2018 Fellowes, Inc. Part # 872398 Lotus DX Rev A 03/2018...
