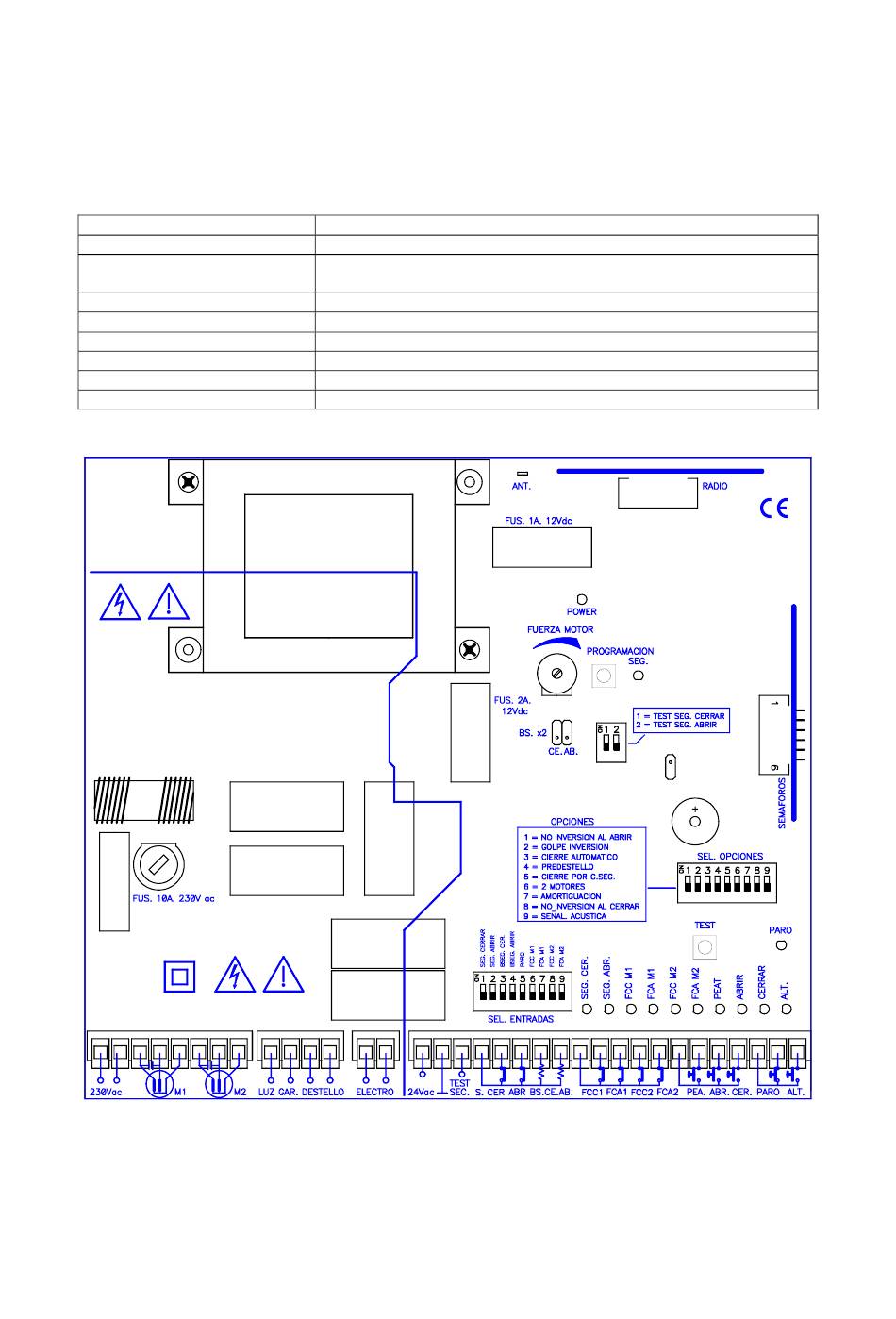

1257014-GB_v1.1
GENERAL DESCRIPTION
Control panel for 3/4CV single-phase motors at 230V on swing, folding and sliding garage doors for
residential and communal use
TECHNICAL CHARACTERISTICS
Panel supply
Power
Optional cards
Security device output
Electro-lock outlet
Operating temperature
Watertightness
Equipment category
Sizes
1 2
3 4 5
6 7 8
STD-1EU / STD-2EU
230V∼ (ac)
3/4CV
Pluggable receiver card 2 channels (433.92 / 868.35 MHz) and traffic
light card
24V∼ (ac) / 0,75A and autotest
12V= (dc) / 1A
-20ºC to +85ºC
IP54
Class II
225x195x85 mm
9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STD-2EU and is the answer not in the manual?

Questions and answers

Related Manuals for FAAC STD-2EU

Summary of Contents for FAAC STD-2EU

  • Page 1 1257014-GB_v1.1 STD-1EU / STD-2EU GENERAL DESCRIPTION Control panel for 3/4CV single-phase motors at 230V on swing, folding and sliding garage doors for residential and communal use TECHNICAL CHARACTERISTICS Panel supply 230V∼ (ac) Power 3/4CV Optional cards Pluggable receiver card 2 channels (433.92 / 868.35 MHz) and traffic...

  • Page 2: Installation

    1257014-GB_v1.1 STD-1EU / STD-2EU CONNECTION 230V∼ 230V∼ Motor 1 Motor 1 Common motor 1 Motor 2 (STANDARD/2-EU version) Motor 2 (STANDARD/2-EU version) Common motor 2 (STANDARD/2-EU version) Garage light contact (LUZ GAR.) Garage light contact (LUZ GAR.) Flash light contact (DESTELLO)

  • Page 3: Option Switch

    1257014-GB_v1.1 STD-1EU / STD-2EU Stop (PARO): Contact normally closed. This detains the operation on standby for a new order. Where not used, turn option 5 on the input switch to ON. Open (ABR.): Contact normally open to open. If it is pressed while the door is closing, it will stop and open.

  • Page 4: Input Switch

    1257014-GB_v1.1 STD-1EU / STD-2EU Note: If the security contact is not connected (option 1 and/or 2 of the input switch at ON), you must have the option 1 and/or 2 (TEST SEG. CERRAR / TEST SEG. ABRIR) of the option switch 2 at OFF.
  • Page 5 1257014-GB_v1.1 STD-1EU / STD-2EU PROGRAMMING • If, during programming, a stoppage is made, the control panel will automatically exit programming for safety reasons. • Before starting any type of time programming, it is wise to have the corresponding options correctly selected (option switch and input switch).

  • Page 6: Optional Cards

    1257014-GB_v1.1 STD-1EU / STD-2EU Programming to open one leaf only (motor 1) or for partial opening Close the door with the limit switches (where applicable) duly connected. With the door closed, press the Programming button and the programming led will switch on. Press the Pedestrian button, the panel will begin to memorise the opening time (different to that possibly programmed from the Start button) until the Pedestrian button is pressed again.

  • Page 7: Use Of The Equipment

    1257014-GB_v1.1 STD-1EU / STD-2EU IMPORTANT SAFETY INSTRUCTIONS FOR USE • Do not allow children to play with the door controls. • Keep the remote controls out of the reach of children. • Watch the door movement and keep people away until the door is fully open or closed.
