Page 1

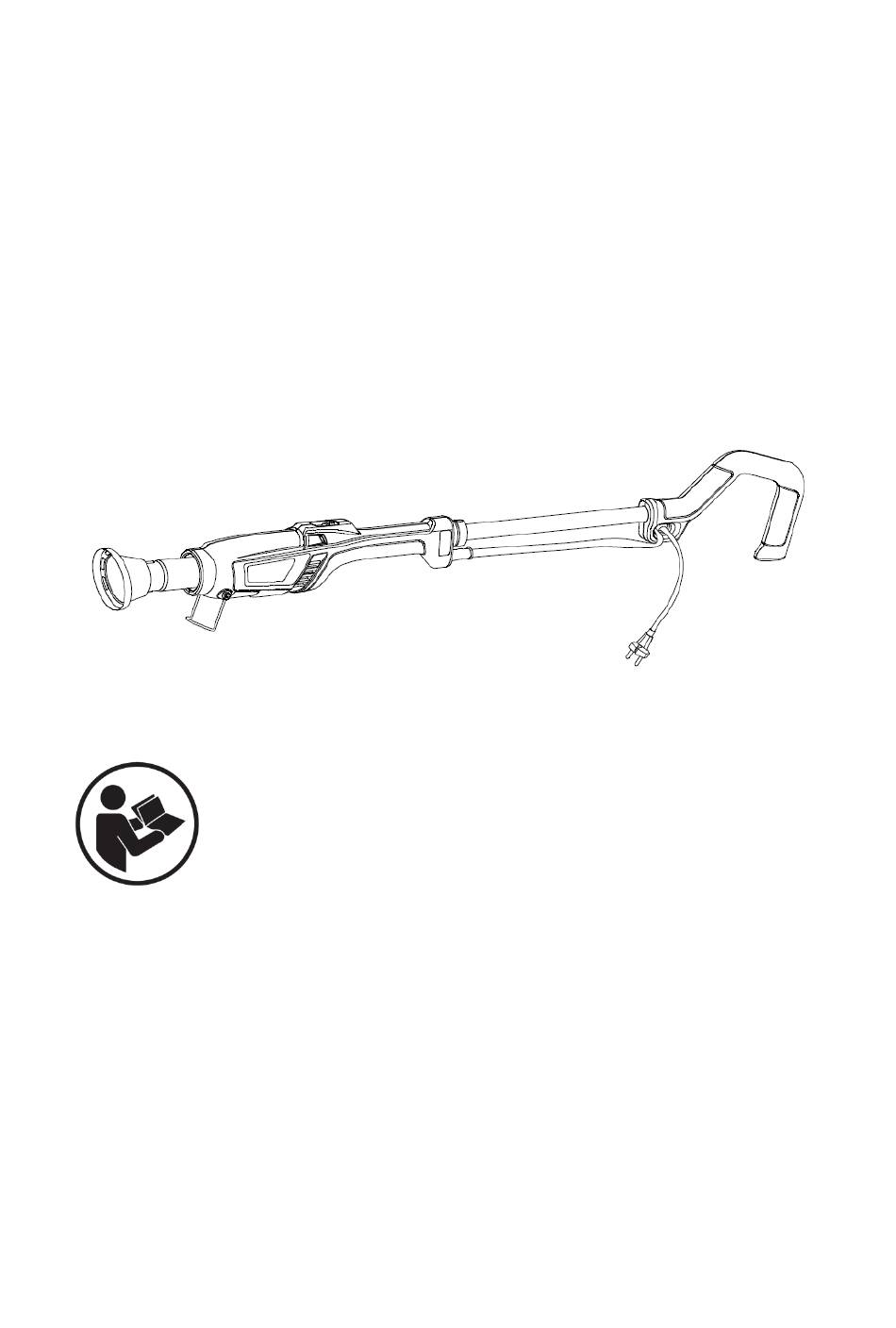

Original instructions Multi-functional Electric Weed Burner PLD2430 USER MANUAL Reduce risks of injury, please read this instruction manual before using your new power tools WARNING: Always switch off the appliance when non-working.
Page 2
Original instructions Fig. B Fig. C Optional Accessories...
Page 3
Original instructions PRODUCT : 1.switch (0/I/II) 2. Hot air nozzle 3. Kick stand 4. Air ventilation 5. Lock button 6. Extension pole 7. Handle grip 8. Weeding nozzle 9. Cable hook...
Original instructions EXPLANATION OF THE SYMBOLS Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual. Indicates electrical shock hazard. Do not expose to rain. Remove plug from the mains immediately if the cable is damaged or cut.
Page 6
Original instructions b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or dust. Power tools create sparks which may ignite the dust of fumes. c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Page 7
Original instructions before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
Original instructions Many accidents are caused by poorly maintained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.
Page 9
Original instructions – Caution is advised when using long extension cables • Do not use the appliance under moist circumstances; • The metal mouthpiece gets hot. Watch out and do not touch the metal mouthpiece; • Prevent damage of the heating element. Do not lock or block the mouth piece;...
Page 10
Original instructions When operating the appliance • If you are going to use the tool, vapours and gas can be released during a short time. This can be harmful for your health. Asthmatics can suffer hindrance of it; • Before connecting the plug to the mains voltage you have to check if the switch is in position “0”;...
Original instructions instructions. Always check that the power supply corresponds to the voltage on the rating plate. – – ’ Class II machine Double insulation You don t need any earthed plug Replacing cables or plugs If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to avoid a hazard.
Page 12
Original instructions To turn on the power: – Slide the switch (1) to position II, depending on the application To cooling the device: – After working with the device at high temperature setting (position II), the device is getting very hot. So it is suggested to slide the switch (1) to position I, to quickly cool down the device before turn off and device for storage.
Original instructions • To kill weeds, hold the weeding nozzle over the weeds for about 5 seconds. During these 5 seconds the cell structure of the weed is destroyed. As a result, the weed dies within a few days. • It is not necessary to completely burn the weeds, 5 seconds is more than sufficient.
Page 14
Original instructions plates and profiles, as well as moist woods. Welding of thermoplastic polymer, flooring materials of PVC and linoleum, PVC-coated fabric, tarpaulins and foils. Soldering of tin, special silver solder, SMD elements, cable lugs, and for loosening soldered connections. Paint removal-Removal of old and even thick coatings of oil paint , varnish and synthetic plaster.
Page 15
Original instructions Cone nozzle Welding, shrink sleeving (heat concentrated over small area ) Fish tail surface nozzle Drying, thawing (heat spread over wider area ) Scraper Stripping paint and varnish A fire may result if the appliance is not used with care, therefore –...
Page 16
Original instructions used for firmly support the device in the proper position. • Insert the plug into the socket. • Check to ensure the nozzle is not blocked before turning the device on. • Remove the device from the coals or the wood as soon as it starts to glow. •...
Original instructions EC-DECLARATION OF CONFORMITY (company name), declare by our own responsibility that the product Heat Gun, Model PLD2423, is according to the basic requirements, which are defined European Directives Electromagnetic Compatibility 2014/30/EC (EMC), 2014/35/EC (Machinery) and their amendments. For the evaluation of conformity, the following harmonized standards were consulted: EN 60335-1 EN 60335-2-45...
