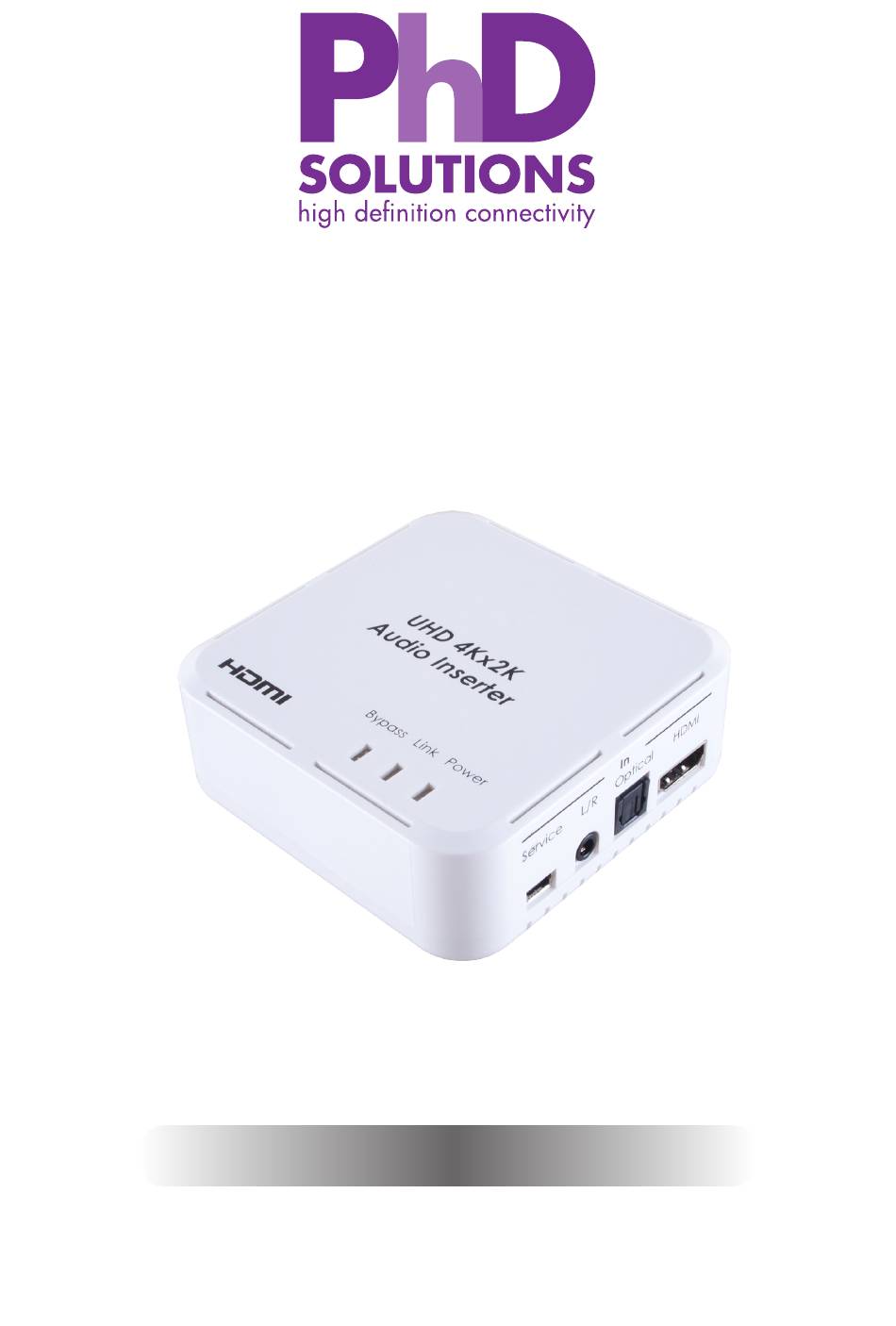

- Page 1 AUD-HDMI-INS-4K CPRO-11SI HDMI 4Kx2K Audio Inserter Operation Manual Operation Manual...
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Right Panel ........4 6.3 Left Panel ..........4 6.4 Front Panel ........5 7. -
Page 5: Introduction
1. INTRODUCTION The HDMI™ 4K x 2K Audio Inserter lets you insert an external audio signal into your HDMI or DVI (with HDMI to DVI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. -
Page 6: Features
5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rate up to 192 kHz • Supports Optical S/PDIF audio sampling rate up to 192 kHz • Supports L/R audio sampling rate up to 48 kHz •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel HDMI 4Kx2K Audio Inserter Bypass Link Power Bypass: This LED will illuminate when the input audio is switch to HDMI. Link: This LED will illuminate when input source is connected with HDMI signal. -
Page 8: Right Panel
6.2 Right Panel Service Optical HDMI Service: This port is reserved for fi rmware update only. L/R In: Connect from audio source equipment such as PC/Laptop or DVD/Blu-ray player with L/R audio signal output. Optical In: Connect from audio source equipment such as AV receiver or DVD player with optical signal output. -
Page 9: Front Panel
6.4 Front Panel DC 5V Optical Power HDMI HDMI/Optical/L/R: Audio in selection allows users to select among 3 of different audio input options. Switch among the original HDMI audio, Digital audio (Optical) and Analog stereo (L/R). Power: Press this button to switch on the device or to set it into standby mode. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVD Player Digital Audio Input Optical Blu-ray Player Blu-ray Player HDMI Input Service Optical HDMI HDMI Audio Inserter HDMI Out HDMI Output AV Receiver HDTV or Monitor... -
Page 11: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 300Mbps / 10.2Gbps Input Ports 1 x HDMI, 1 x Optical (Digital Audio), 1 × 3.5mm Phone Jack (L/R), 1 x Mini-USB (service only) Output Port 1 x HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical S/PDIF Audio Sampling Rate Up to 192 kHz L/R Audio Sampling Rate Up to 48 kHz... -
Page 12: Acronyms
Relative Humidity 20 ~ 90% RH (non-condensing) Power Consumption 2.37W 9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840 x 2160 / 4096 x 2160 Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 13 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 14 Product Service Provided 1. Damage requiring service All units should be serviced by a PhD Solutions qualified service person.: 2. Servicing Personnel Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorised PhD Solutions servicing personnel.
- Page 15 2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this product or arising out of any breach of this warranty. For example: damage for lost time, the cost of having a person/persons remove or re- •...
- Page 18 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
