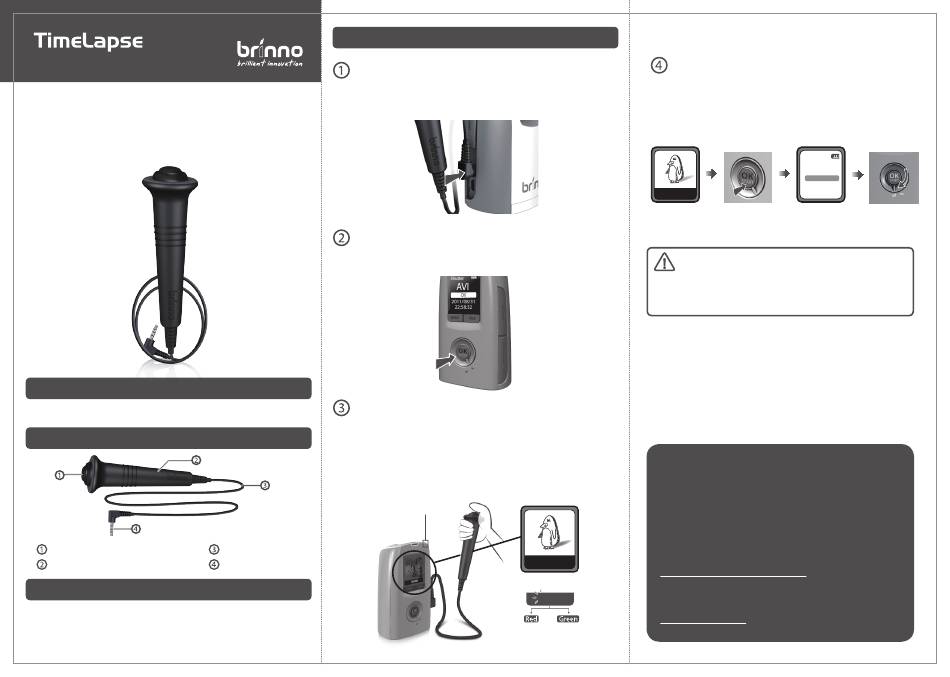

Brinno TimeLapse ATS100 Quick Start Manual

Shutter Line

ATS100

User Manual

Package Contents

1. ATS100 Shutter Line x1

Parts of ATS100

Shutter button
Handle

Specification

Dimensions WxHxL: 3 x 3 x 11cm (excluding cord)
Cord Length: 3ft.(91cm)

Instruction

Open Extension Port cover to plug into
shutter line connector and turn on
TimeLapse camera.
Viewfinder will display as shown, then press
OK to enter preview screen.

Start Capturing

2. User Manual
Hold the shutter button till the LED indicator
lights up, and viewfinder will show text "GRAB"
in red, it means TimeLapse camera is capturing.
Until the color of text "GRAB" back to green, can
capture next photo.
Cord
Plug
Weight: 59g
LED indicator
GRAB
GRAB
Capturing Stand by

Finish Capturing

Push start button for 3 seconds to back to the
setting screen, shut down TimeLapse camrea.
Remove SD card and enjoy your movie!
Shutter
AVI
OK
2011/08/31
22:58:32
GRAB

Precatuion for use

• Ensure your TimeLapse camera has set up
and already installed a SD card.
• When the viewfinder is in sleep mode, you can
push the shutter button to wake up.
• You can choose your recording as an AVI(video)
or JPEG(photo) by pressing MENU button.
Thank you for purchasing ATS100!
If you have any questions or problems setting
up your TimeLapse camera and Accessories,
please contact the sales staff where you
purchased our product or email us at Brinno
Incorporated directly.
