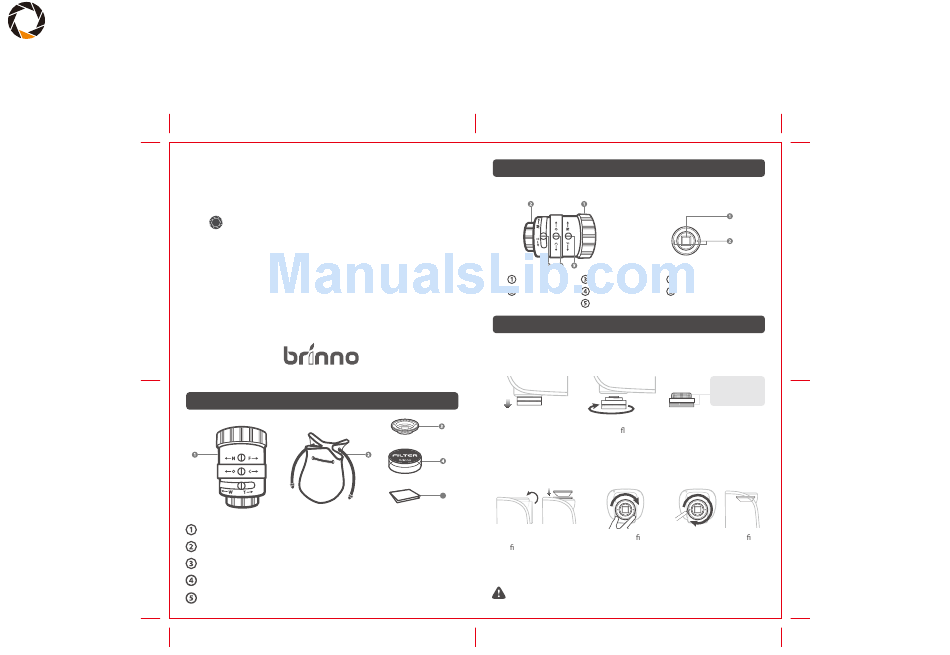

Brinno BCS 24-70 User Manual

Brinno Lens
2017/1
BCS 24-70 User manual_A2(301-0065-01)
(140x180mm) 80P白模造紙，單色印刷，十字折，成形尺寸: 80x70mm
BCS 24-70
Brinno Lens
24-70mm F1.4
User Manual
1. Package contents
Brinno Lens 24-70 mm F1.4 (BCS 24-70) x 1
Lens Bag x 1
IR Filter x 1
IR Filter case x 1
User manual x 1
2. Parts of device
Brinno Lens
Top cover
Zoom
Bottom cover Aperture
Focus
3. Installation
3-1 To remove the current lens kit(BCS 019) from TLC200 Pro
a. b.
a.
Turn TLC200 Pro face down to the oor to protect against dust getting on
b.
the sensor. Rotate counter-clockwise to unlock the BCS 019.
3-2 To install IR Filter on TLC200 Pro
a. b.
5
a. Rotate lens upwards, then place the IR lter horizontally. b. Screw in IR lter
with ngers. c. Insert the screwdriver* from TLC200 Pro into one of the driving
holes, turn clockwise until tight.
* For more information, please refer to the TLC200 Pro manual page 5(Package Content).
IR Filter works with BCS 019, BCS 18-55 and BCS 24-70. It's recommended to
keep IR Filter on TLC200 Pro.
IR Filter
Glass
Driving Holes
Store with the
lens covers to
protect the lens.
c.
