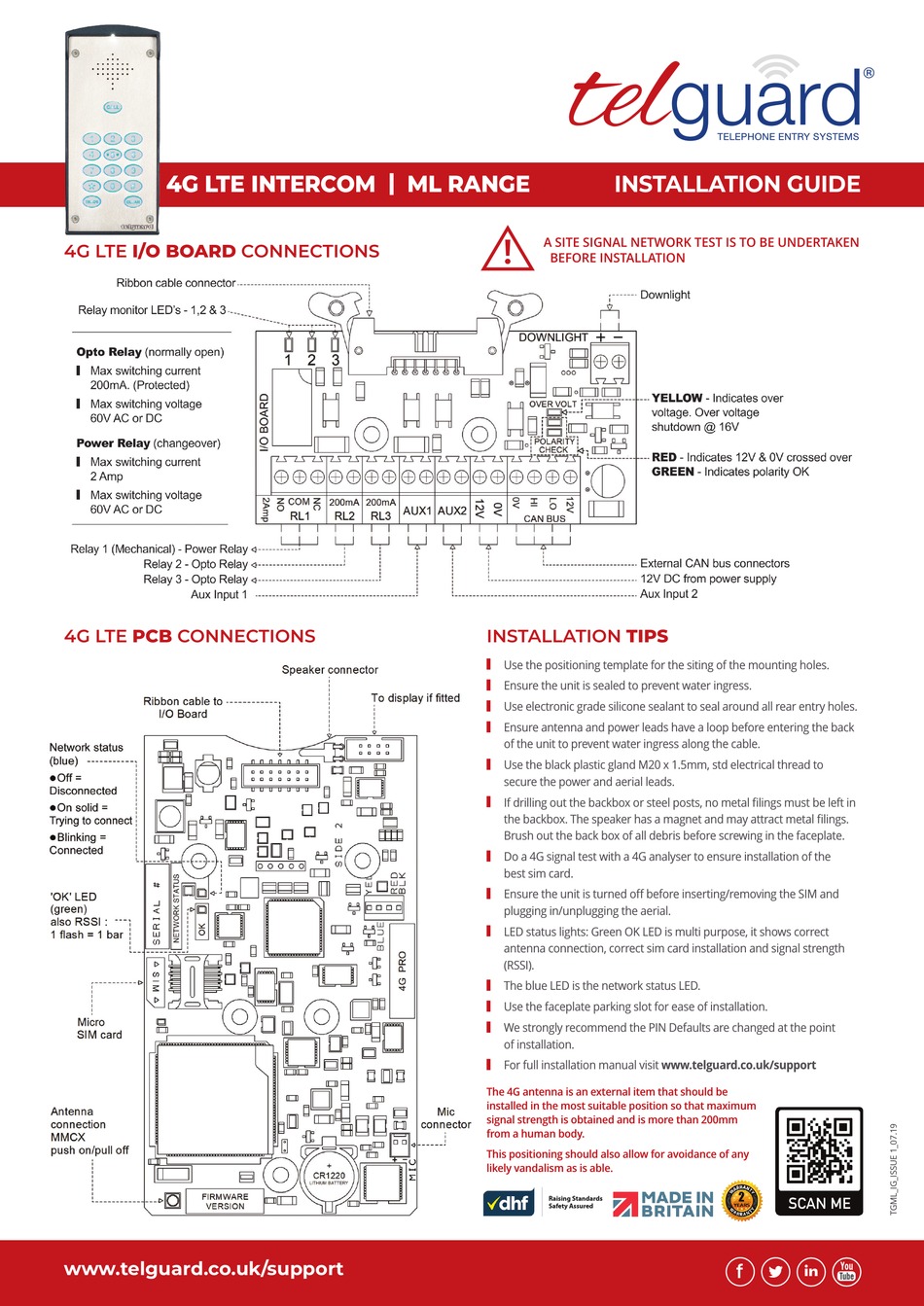

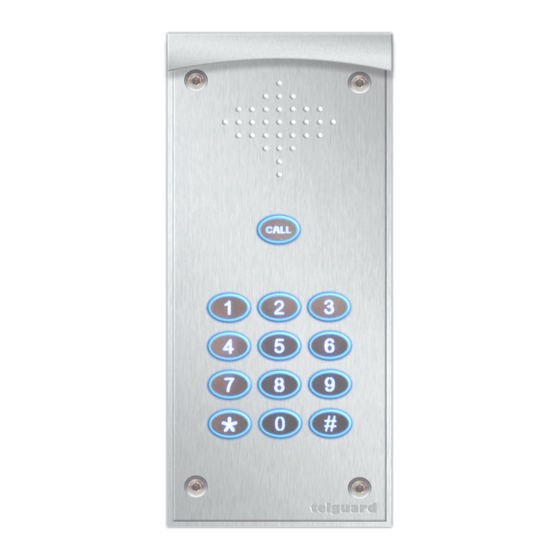

4G LTE INTErCoM | ML raNGE

4G LTE I/o Board CONNECTIONS

4G LTE PCB CONNECTIONS

www.telguard.co.uk/support

INSTALLATION GUIDE

A SITE SIGNAL NETWORK TEST IS TO BE UNDERTAKEN
!
BEFORE INSTALLATION

INSTALLATION TIPS

Use the positioning template for the siting of the mounting holes.
z
Ensure the unit is sealed to prevent water ingress.
z
Use electronic grade silicone sealant to seal around all rear entry holes.
z
Ensure antenna and power leads have a loop before entering the back
z
of the unit to prevent water ingress along the cable.
Use the black plastic gland M20 x 1.5mm, std electrical thread to
z
secure the power and aerial leads.
If drilling out the backbox or steel posts, no metal filings must be left in
z
the backbox. The speaker has a magnet and may attract metal filings.
Brush out the back box of all debris before screwing in the faceplate.
Do a 4G signal test with a 4G analyser to ensure installation of the
z
best sim card.
Ensure the unit is turned off before inserting/removing the SIM and
z
plugging in/unplugging the aerial.
LED status lights: Green OK LED is multi purpose, it shows correct
z
antenna connection, correct sim card installation and signal strength
(RSSI).
The blue LED is the network status LED.
z
Use the faceplate parking slot for ease of installation.
z
We strongly recommend the PIN Defaults are changed at the point
z
of installation.
For full installation manual visit www.telguard.co.uk/support
z
The 4G antenna is an external item that should be
installed in the most suitable position so that maximum
signal strength is obtained and is more than 200mm
from a human body.
This positioning should also allow for avoidance of any
likely vandalism as is able.
Raising Standards
Safety Assured
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telguard ML Series

  • Page 1: Installation Guide

    Use the faceplate parking slot for ease of installation. We strongly recommend the PIN Defaults are changed at the point of installation. For full installation manual visit www.telguard.co.uk/support The 4G antenna is an external item that should be installed in the most suitable position so that maximum signal strength is obtained and is more than 200mm from a human body.
  • Page 2 GSM one aPP APP GUIDE The settings and features are programmed using Commtel GSM One App and the SMS Short Command Guide which are both downloadable from www.telguard.co.uk /support PROGRAMMING APP GSM One Programming the most common settings and features. THE SMS SHORT COMMAND PROGRAMMING GUIDE The full range and advanced programming of all settings and features.
