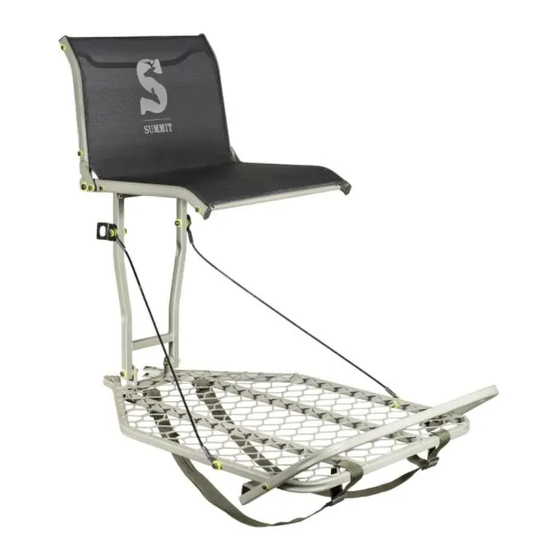

Summit Treestands Perch 82069 Manual

Summit Treestands Perch 82069 Manual

Hang on treestand

Advertisement

Quick Links

Perch, Stoop, Ledge
Hang On Treestand
© 2012 Summit Treestands, LLC
715 Summit Dr. Decatur, AL 35601
(256) 353-0634
info@summitstands.com
www.summitstands.com
WARNING
!
You must fully read, understand and follow these warnings and
instructions (written and video)! Failure to follow these instructions
may cause serious injury or death!!
WHEN HUNTING FROM A TREESTAND FALLS CAUSING INJURY OR DEATH CAN OCCUR ANY TIME AFTER LEAVING THE GROUND!
FOR THOSE REASONS ALWAYS USE A FALL ARREST SYSTEM (FAS) COMPRISING A FULL BODY HARNESS AT ALL TIMES AFTER LEAVING THE
GROUND. YOU MUST STAY CONNECTED AT ALL TIMES AFTER LEAVING THE GROUND WHILE USING ANY ELEVATED HUNTING PLATFORM.
SINGLE SAFETY BELTS AND CHEST HARNESSES ARE NO LONGER ALLOWED AND SHOULD NEVER BE USED. IF YOU ARE NOT USING A FULL
BODY HARNESS THAT IS PROTECTING YOU FROM A FALL, DO NOT LEAVE THE GROUND!
READ AND UNDERSTAND ALL OF THE MANUFACTURER'S WARNINGS AND INSTRUCTIONS AND USE ALL SAFETY DEVICES PROVIDED.
CONTACT SUMMIT TREESTANDS FOR ANY QUESTIONS. FAILURE TO DO SO COULD RESULT IN INJURY OR DEATH!
A SIGNAL DEVICE SUCH A MOBILE PHONE, RADIO, WHISTLE, SIGNAL FLARE OR PERSONAL LOCATOR DEVICE (PLD) MUST BE ON YOUR
PERSON AND READILY AVAILABLE AT ALL TIMES! ALWAYS INFORM SOMEONE OF YOUR HUNTING LOCATION, WHERE THE TREESTAND
WILL BE LOCATED AND THE EXPECTED DURATION OF THE HUNT!
DO NOT USE ANY TREESTAND UNLESS YOU ARE IN GOOD PHYSICAL SHAPE AND HAVE NO PHYSICAL LIMITATIONS OR MEDICAL
CONDITIONS WHICH MAY PREVENT YOU FROM SAFELY USING THIS PRODUCT. ALWAYS CONSULT A PHYSICIAN IF YOU HAVE ANY
QUESTIONS ABOUT YOUR PHYSICAL ABILITY TO USE THIS PRODUCT.
NEVER USE A TREESTAND WHILE TAKING DRUGS, ALCOHOL OR CERTAIN PRESCRIPTION DRUGS! ALWAYS CONSULT A PHYSICIAN IF YOU
HAVE ANY QUESTION ABOUT TAKING SPECIFIC MEDICATIONS AND USING THIS PRODUCT!
NEVER USE A TREESTAND DURING INCLEMENT WEATHER SUCH AS RAIN, LIGHTNING, WINDSTORMS OR ICY CONDITIONS! END YOUR
HUNT AND RETURN TO THE GROUND IF ANY OF THESE INCLEMENT CONDITIONS ARISE.
NEVER USE A TREESTAND WHEN FEELING ILL, NAUSEOUS, DROWSY OR DIZZY!
BE WELL RESTED AND NEVER HURRY. HURRYING CAUSES ACCIDENTS!
NEVER USE A TREESTAND ON A DEAD, LEANING, DISEASED, LOOSE BARKED TREE, ON A UTILITY POLE OR ON TREES THAT HAVE ANY
OBSTRUCTIONS THAT MAY LIMIT TREESTAND USE! NEVER RELY ON A TREE BRANCH FOR SUPPORT!
NEVER JUMP OR BOUNCE ON A TREESTAND TO SECURE IT TO THE TREE!
PULL UP A BOW, BACKPACK, FIREARM OR OTHER EQUIPMENT ONLY AFTER BEING SECURE IN THE TREESTAND. FIREARMS MUST BE
PULLED UP UNLOADED, CHAMBER OPEN AND MUZZLE DOWN! NEVER CLIMB WITH ANYTHING ON YOUR BACK.
NEVER MODIFY YOUR STAND IN ANY WAY BY MAKING REPAIRS, REPLACING PARTS, OR ALTERING, ADDING OR ATTACHING ANYTHING
TO IT EXCEPT IF EXPLICITLY AUTHORIZED IN WRITING BY THE MANUFACTURER!
PRACTICE INSTALLING, ADJUSTING AND USING YOUR TREESTAND AT GROUND LEVEL PRIOR TO USING IT AT ELEVATED POSITIONS!
INSTRUCTIONS (WRITTEN AND VIDEO) SHOULD BE KEPT IN A SAFE PLACE AND REVIEWED AT LEAST ANNUALLY. IT IS THE RESPONSIBILITY
OF THE TREESTAND OWNER TO FURNISH THE COMPLETE INSTRUCTIONS TO ANY PERSON WHO BORROWS OR PURCHASES THE
TREESTAND! THIS SUMMIT TREESTAND IS DESIGNED TO BE USED AS A COMPLETE SYSTEM - NEVER LOAN OR SELL ONLY A PORTION OF
THE HANG-ON TREESTAND SYSTEM.
BEFORE EACH USE OF YOUR SUMMIT TREESTAND, ALWAYS INSPECT THE TREESTAND AND HARNESS FOR ANY DAMAGE, CRACKS,
TEARS, CABLE WEAR OR ABRASION THAT MAY HAVE OCCURRED IN TRANSPORTING / STORING YOUR TREESTAND. DO NOT USE IF ANY
DAMAGE IS FOUND! CONTACT CUSTOMER SERVICE FOR THE APPROPRIATE REPAIR / REPLACEMENT PROCEDURE!
DO NOT LEAVE YOUR TREESTAND OUTDOORS OR STORE IT OUTDOORS WHEN IT IS NOT BEING USED! ANY STAND TUBING THAT IS
ALLOWED TO FILL WITH RAINWATER AND FREEZE WILL RUPTURE OR BURST - DO NOT USE YOUR TREESTAND IF THIS OCCURS!
PN 82069, 82070, 82071
You MUST also view the enclosed DVD BEFORE using your new treestand!!
WEIGHT LIMIT (all models)
SINGLE USER
300 LBS. X 1 TOTAL*
DO NOT EXCEED THIS LIMIT!
(* Includes all gear)
Stand minimum and maximum tree size: 8-20" diameter
82069/82070/82071, 2/2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the Perch 82069 and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit Treestands Perch 82069

  • Page 1 • READ AND UNDERSTAND ALL OF THE MANUFACTURER’S WARNINGS AND INSTRUCTIONS AND USE ALL SAFETY DEVICES PROVIDED. CONTACT SUMMIT TREESTANDS FOR ANY QUESTIONS. FAILURE TO DO SO COULD RESULT IN INJURY OR DEATH! • A SIGNAL DEVICE SUCH A MOBILE PHONE, RADIO, WHISTLE, SIGNAL FLARE OR PERSONAL LOCATOR DEVICE (PLD) MUST BE ON YOUR...
  • Page 2: Parts List

    INDEX GENERAL WARNINGS AND PRECAUTIONS, STAND WEIGHT LIMITS PG 1 SECTION 1 - INDEX PG 2 SECTION 2 - PARTS LIST PG 2 SECTION 3 - TOOLS REQUIRED PG 2 SECTION 4 - ASSEMBLY PG 3 SECTION 5 - INSTALLATION AND USE PG 3 - 6 SECTION 6 - TIPS PG 7...
  • Page 3 ASSEMBLY SEAT UPRIGHT 1. Position two Standoff Tabs on the inside of the Seat STANDOFF TABS Upright Bar as shown in figure 1. Use two of the 1/4” SEAT Washers on the outside of the Seat Upright tubing. UPRIGHT 2. Slide the Seat Pan up and line up the holes. The expanded metal side of the Seat Pan should face up as 1/4”...
  • Page 4 CABLES 1. Position one of the Hanging Tabs as shown in SEAT UPRIGHT figure 5. The bent end of the tab should wrap around ASSEMBLY the Upright tube and the open end should face the tree. HANGING 2. Line up one end of the cable with the same hole. The flat portion of the cable eyelet should sit flush against the Hanging Tab as shown in figure 6.
  • Page 5 INSTALLATION AND USE WARNING WARNING The use of a lineman’s style climbing belt / rope is YOU MUST read and understand the included mandatory when installing or climbing into a hang- Full Body Harness Instructions, Page 5, Section on treestand. NEVER attempt to install or climb into 5 for information on using your Lineman’s Belt.
  • Page 6 INSTALLATION (continued) 8. While staying connected to your lineman’s belt, position the safety harness safety strap above the stand. Following the written Harness Instructions, take your treestand safety strap and run it through the harness tether loop. Thread the safety strap buckle and pull tight as shown in figure 12. 9. Once you and your harness are securely connected to the harness safety strap, THEN AND ONLY THEN should you disconnect from your lineman’s belt.
  • Page 7 TIPS Sometimes on a cold, dry, hard bark tree a rubbing noise can be produced at the scalloped edge that engages the tree. This comes from friction forces. It can be eliminated a couple of ways. First, simply re-positioning your platform slightly will in most cases eliminate the noise. Second, a liquid or candle/ bowstring wax can be applied at the intersection of the tree and the scalloped edge to reduce the friction.
  • Page 8: Maintenance And Care

    (A) Warranty Summit Treestands, LLC (Summit) warrants to the original retail purchaser that all products manufactured by it are free from defects in material and manufacture at the time of shipment for twelve (12) months from the date of purchase. Summit will repair or replace any part found defective if the unit claimed to be defective shall be returned to Summit, postage prepaid, within the warranty period.

This manual is also suitable for:

Ledge 82071Stoop 82070
