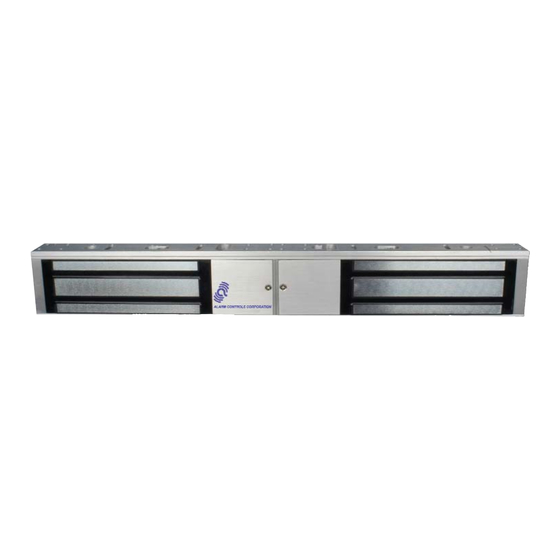

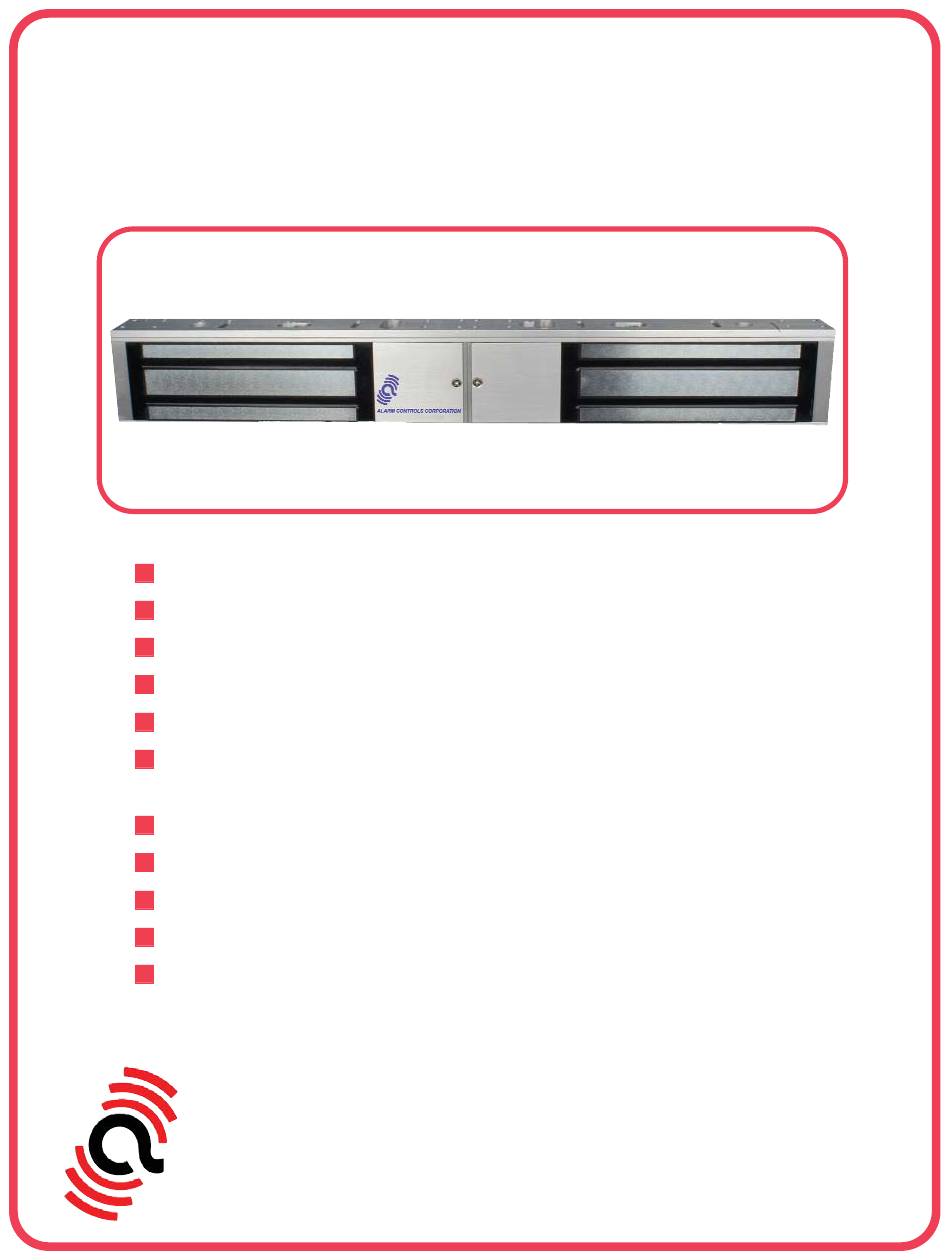

MODEL 1200D
1200 POUND DOUBLE MAGNETIC LOCK
U.L. LISTED, LISTING NUMBER R16756
1200 POUND MINIMUM HOLDING FORCE, EACH LOCK
MAGNET SIZE 21" L x 2-7/8" H x 1-1/2" W
ARMATURE SIZE 7-1/2" L x 2-3/8" W x 5/8" D EACH
12 OR 24 VOLT DC OPERATION, JUMPER SELECTABLE
CURRENT DRAW 400 MA.@12 VDC, 200 MA.@24 VDC
EACH MAGNET
BI-COLORED STATUS LED, DOOR STATUS SENSOR
BOND SENSOR WITH S.P.D.T. 3A. RELAY CONTACTS
ALL METAL NON-ALUMINUM PARTS ARE PLATED
CLEAR ANODIZED US 28 FINISH STANDARD
DURONIC US 40 FINISH AVAILABLE
ALARM CONTROLS CORPORATION
19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729
WWW.ALARMCONTROLS.COM EMAIL: INFO@ALARMCONTROLS.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alarm Controls Corporation 1200D
Summary of Contents for Alarm Controls Corporation 1200D
- Page 1 MODEL 1200D 1200 POUND DOUBLE MAGNETIC LOCK U.L. LISTED, LISTING NUMBER R16756 1200 POUND MINIMUM HOLDING FORCE, EACH LOCK MAGNET SIZE 21” L x 2-7/8” H x 1-1/2” W ARMATURE SIZE 7-1/2” L x 2-3/8” W x 5/8” D EACH 12 OR 24 VOLT DC OPERATION, JUMPER SELECTABLE CURRENT DRAW 400 MA.@12 VDC, 200 MA.@24 VDC...
- Page 2 MAGNETIC LOCK INSTALLATION INSTRUCTIONS PLEASE READ BEFORE INSTALLATION ALARM CONTROLS CORPORATION OFFERS A COMPLETE LINE OF MAGNETIC LOCKS AND ACCESSORY ITEMS TO ASSIST THE INSTALLER IN MANAGING EVERY APPLICATION. THE MAGNETIC LOCK IS DESIGNED TO MOUNT TO THE DOOR FRAME ON THE STOP SIDE OF THE DOOR IN A TYPICAL OUTSWINGING DOOR INSTALLATION,(SEE PAGE 2 FOR INSWINGING DOOR INSTALLATION).
- Page 3 INSWINGING DOOR INSTALLATION WITH L- Z BRACKET STEP 1 DOOR FRAME FASTEN THE L BRACKET ON THE DOOR FRAME IN A SUITABLE LOCATION. MOUNT THE MAGNETIC LOCK TO THE L BRACKET. MAKE SURE THAT THE MAGNETIC LOCK DOES NOT OBSTRUCT THE CLOSING OF THE DOOR.
-
Page 4: Magnetic Lock Care And Maintenance
MAGNETIC LOCK L / Z BRACKETS FOR INSWINGING DOORS AM2370 FOR 300 POUND MAGNETIC LOCK AM3370 FOR ALL 600 POUND MODELS OF SINGLE MAGNETIC LOCKS AM6370 FOR ALL 1200 POUND MODELS OF SINGLE MAGNETIC LOCKS AM3375 FOR ALL 600 POUND MODELS OF DOUBLE MAGNETIC LOCKS AM6375 FOR ALL 1200 POUND MODELS OF DOUBLE MAGNETIC LOCKS MAGNETIC LOCK CARE AND MAINTENANCE MAGNETIC LOCKS HAVE NO INTERNAL MOVING PARTS AND REQUIRE A MINIMUM AMOUNT OF MAINTENANCE. -
Page 5: Wire Gauge Chart
WIRE GAUGE CHART DISTANCE FROM POWER SUPPLY TO MAGNETIC LOCK 12 VDC 1000 FEET FEET FEET FEET FEET FEET FEET FEET FEET 24 VDC 24 GA. 22 GA. 22 GA. 22 GA. 20 GA. 18 GA. 18 GA. 16 GA. 14 GA. - Page 6 MAGNETIC LOCK WIRING INSTRUCTIONS MODELS WITH BOND SENSOR AND DOOR STATUS SENSOR 600LB, 600DLB, 1200LB, 1200D To remove the header plate, it may be necessary to remove the wiring compartment screw. A long wiring compartment screw can be used to increase security by limiting access to the header plate mounting screw from below the lock.
- Page 7 WHEN THE MAGNETIC LOCK IS ENERGIZED AND THE DOOR IS CLOSED A S.P.D.T. RELAY TURNS ON WHEN THE DOOR IS OPEN THE RELAY DOES NOT TURN ON. DOOR CLOSED DOOR OPEN COMM ALARM CONTROLS CORPORATION 19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM...
