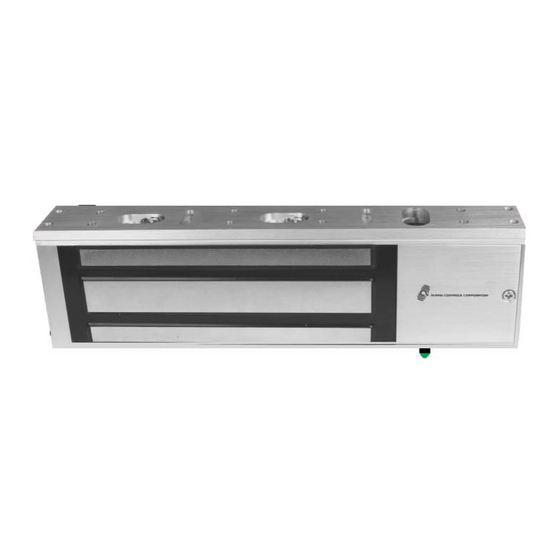

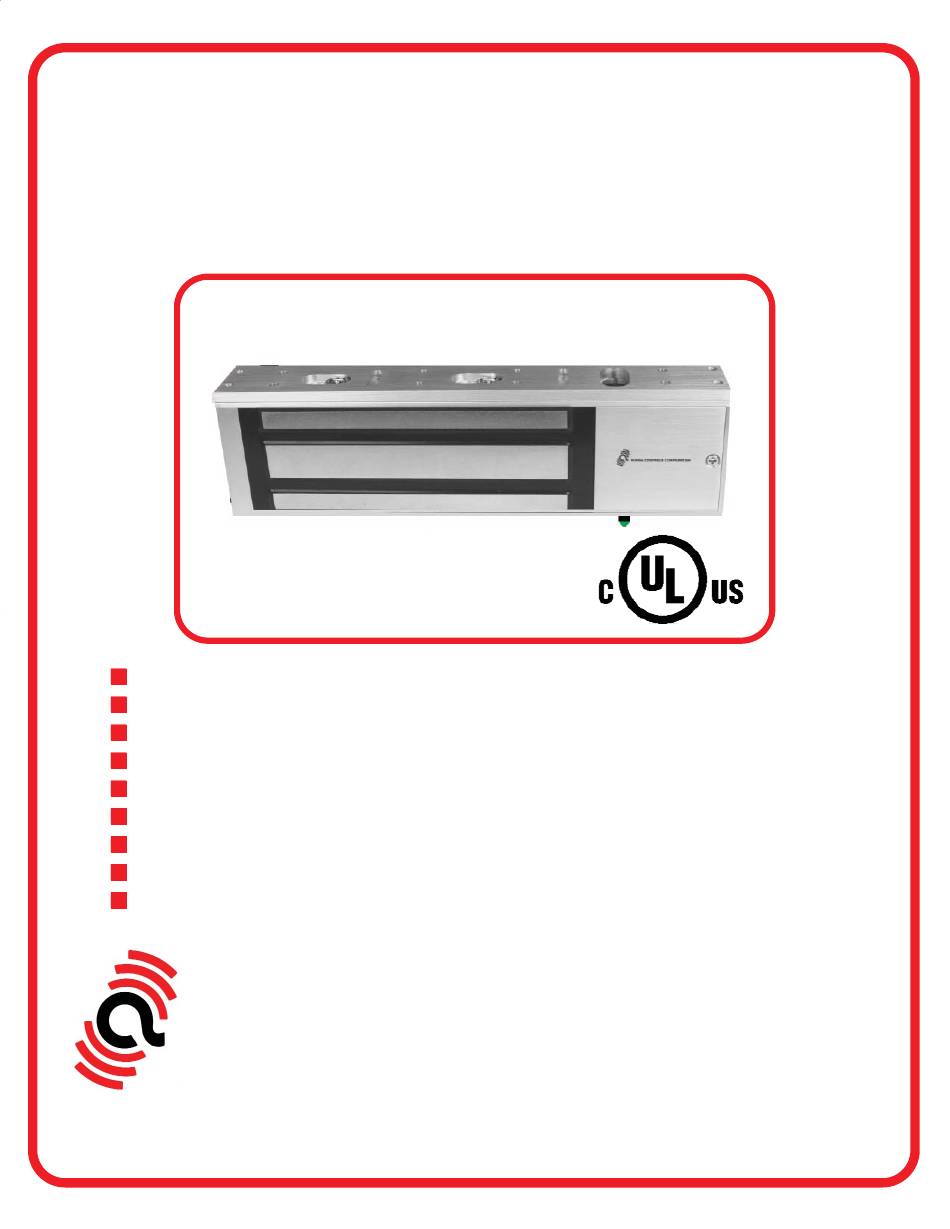

MODEL 1200LB
1200 POUND MAGNETIC LOCK
WITH LED, BOND SENSOR & DOOR STATUS SENSOR
1200 POUND MINIMUM HOLDING FORCE
MAGNET SIZE: 10-1/2" L x 2-7/8" H x 1-1/2" W
ARMATURE SIZE: 7-3/8" L x 2-3/8" W x 9/16" D
12 OR 24 VOLTS DC, JUMPER SELECTABLE
400 MA. @ 12 VDC, 200 MA. @ 24 VDC
BI-COLOR LED, S.P.D.T. 3A. RELAY CONTACTS
SIGNALS A POWERED & SECURELY SEALED DOOR
CLEAR ANODIZED U.S. 28 FINISH STANDARD
ALL NON-ALUMINUM PARTS ARE PLATED
ALARM CONTROLS CORPORATION
19 BRANDYWINE DRIVE DEER PARK, NY 11729
1 631 586-4220 1 800 645-5538
WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM
Advertisement
Related Manuals for Alarm Controls Corporation 1200LB
Summary of Contents for Alarm Controls Corporation 1200LB
- Page 1 MODEL 1200LB 1200 POUND MAGNETIC LOCK WITH LED, BOND SENSOR & DOOR STATUS SENSOR 1200 POUND MINIMUM HOLDING FORCE MAGNET SIZE: 10-1/2” L x 2-7/8” H x 1-1/2” W ARMATURE SIZE: 7-3/8” L x 2-3/8” W x 9/16” D 12 OR 24 VOLTS DC, JUMPER SELECTABLE 400 MA.
-
Page 2: Mounting Brackets
MOUNTING BRACKETS MODELS AM 3300 & AM 6300 MODEL AM 3331 & AM 6331 1/2” HEADER PLATES FOR MAGNETIC LOCKS 1/4” HEADER PLATES FOR DOUBLE LOCKS LOWERS MAGNETIC LOCK BY 1/2” LOWERS MAGNETIC LOCK BY 1/4” MODEL AM 3300 MODEL AM 3331 FOR 600 SERIES FOR MODEL 600D SERIES 1”... - Page 3 MOUNTING BRACKETS FOR EVERY INSTALLATION REQUIREMENT MODEL AM 3310 & AM 6310 MODEL AM 6320 ARMATURE HOUSINGS FOR MAGNETIC LOCKS ANGLE BRACKET FOR MAGNETIC LOCKS USE TO EXTEND THE DOOR HEADER FOR USE ON FREEZER & EXTRA THICK DOORS ARMATURE MODEL AM 3310 HOUSING FOR 600 SERIES...
- Page 4 SOUND LEVEL 80 db @ 3 FEET MODULE REPLACES EXISTING CIRCUIT BOARD VENTED COVER SUPPLIED IMPORTANT FEATURES ALARM CONTROLS CORPORATION MAGNETIC LOCKS ARE MANUFACTURED TO RIGID ALL MAGNETIC LOCKS HAVE A LIMITED LIFETIME STANDARDS AND ARE ASSEMBLED WITH THE WARRANTY FINEST MATERIALS AND WORKMANSHIP.
- Page 5 MAGNETIC LOCK INSTALLATION INSTRUCTIONS PLEASE READ BEFORE INSTALLATION ALARM CONTROLS CORPORATION OFFERS A COMPLETE LINE OF MAGNETIC LOCKS AND ACCESSORY ITEMS TO ASSIST THE INSTALLER IN MANAGING EVERY APPLICATION. THE MAGNETIC LOCK IS DESIGNED TO MOUNT TO THE DOOR FRAME ON THE STOP SIDE OF THE DOOR IN A TYPICAL OUTSWINGING DOOR INSTALLATION,(SEE PAGE 2 FOR INSWINGING DOOR INSTALLATION).
- Page 6 INSWINGING DOOR INSTALLATION WITH L- Z BRACKET STEP 1 DOOR FRAME FASTEN THE L BRACKET ON THE DOOR FRAME IN A SUITABLE LOCATION. MOUNT THE MAGNETIC LOCK TO THE L BRACKET. MAKE SURE THAT THE MAGNETIC LOCK DOES NOT OBSTRUCT THE CLOSING OF THE DOOR.
- Page 7 MAGNETIC LOCK L / Z BRACKETS FOR INSWINGING DOORS AM2370 FOR 300 POUND MAGNETIC LOCK AM3370 FOR ALL 600 POUND MODELS OF SINGLE MAGNETIC LOCKS AM6370 FOR ALL 1200 POUND MODELS OF SINGLE MAGNETIC LOCKS AM3375 FOR ALL 600 POUND MODELS OF DOUBLE MAGNETIC LOCKS AM6375 FOR ALL 1200 POUND MODELS OF DOUBLE MAGNETIC LOCKS MAGNETIC LOCK CARE AND MAINTENANCE MAGNETIC LOCKS HAVE NO INTERNAL MOVING PARTS AND REQUIRE A MINIMUM AMOUNT OF MAINTENANCE.
-
Page 8: Wire Gauge Chart
WIRE GAUGE CHART DISTANCE FROM POWER SUPPLY TO MAGNETIC LOCK 12 VDC 1000 FEET FEET FEET FEET FEET FEET FEET FEET FEET 24 VDC 24 GA. 22 GA. 22 GA. 22 GA. 20 GA. 18 GA. 18 GA. 16 GA. 14 GA. - Page 9 MAGNETIC LOCK WIRING INSTRUCTIONS MODELS WITH BOND SENSOR & DOOR STATUS SENSOR 600LB, 600DLB, 1200LB, 1200D IMPORTANT ON ALL MODELS REMOVE TERMINAL COVER SCREW BOND SENSOR TO ACCESS HEADER MOUNTING SCREW WIRING INSTRUCTIONS CONNECT POSITIVE LOCK POWER TO V+ TERMINAL...
