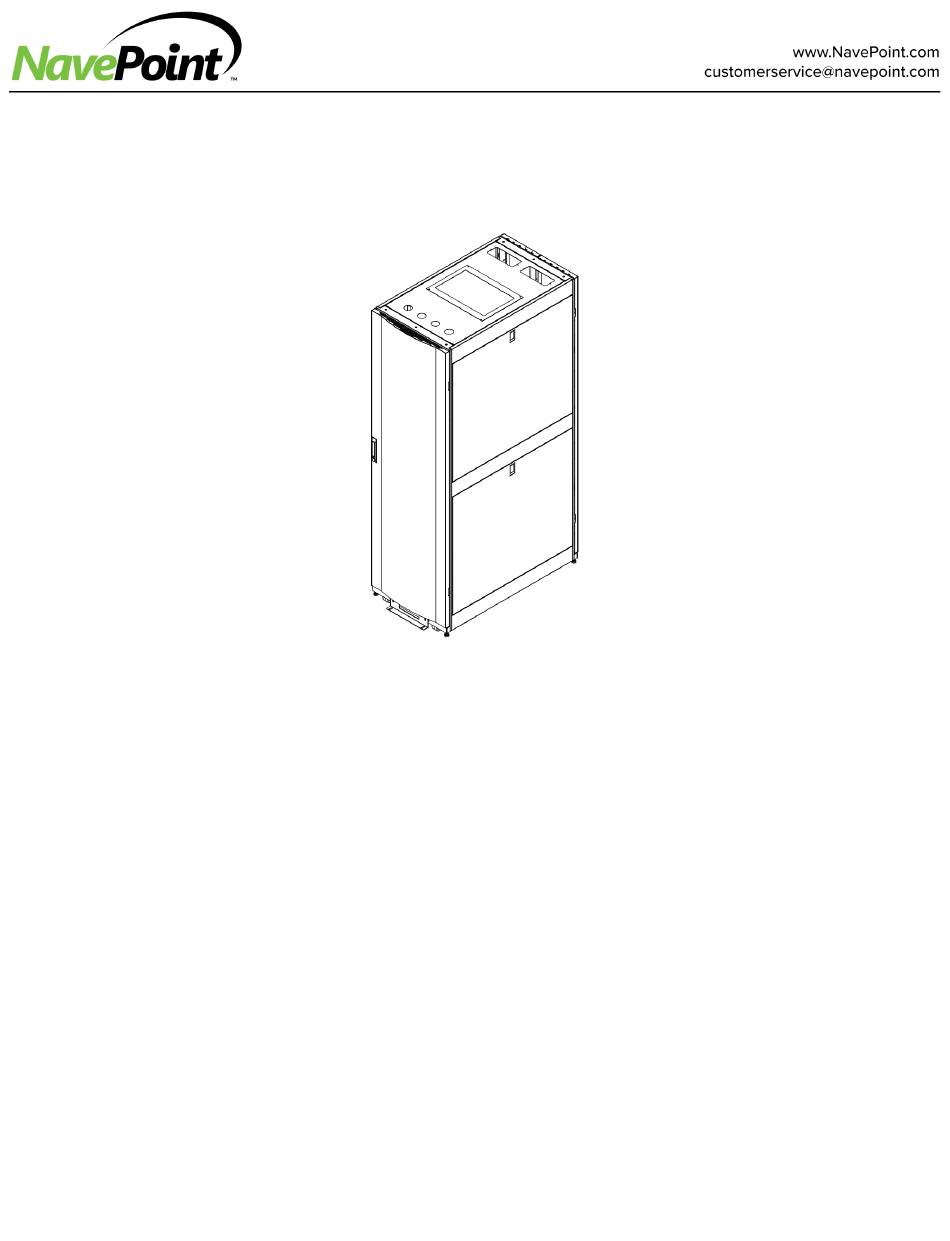

OWNER'S MANUAL: NavePoint 42U Server Cabinet
Keep this information for further reference.
Thank you for purchasing a NavePoint product. If you have any questions regarding the installation or use of your product, please
call us at 888.505.1363.
Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not
attempt to install or use product if it has been damaged.
Improper installation or use of this product could result in damage to the product, other equipment, or personal injury. NavePoint
cannot be held responsible for damage to equipment or personal injury resulting from improper use or installation of product. If
product is intended to store/mount equipment, please ensure the equipment stored/mounted does not exceed the specified weight
capacity.
Limitations of Liability: In no event will NavePoint, LLC. be liable for any damages, whether direct or indirect, special, punitive,
incidental or consequential damages (including, but not limited to, lost profits or revenue, loss of use, lost business opportunities or
loss of goodwill) or for the costs of procuring substitute products, arising out of or in connection with the use of the product,
whether such liability arises from any claim based upon contract, warranty, tort (including negligence), product liability or otherwise,
whether or not seller has been advised of the possibility of such loss or damage. In no event will seller's total cumulative liability,
from all causes of action and all theories of liability, exceed the total amounts actually paid to seller by customer under the order
that gives rise to any liability hereunder.
© 2019 NavePoint, LLC
v20190912-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42U and is the answer not in the manual?

Questions and answers

Summary of Contents for NavePoint 42U

  • Page 1 OWNER’S MANUAL: NavePoint 42U Server Cabinet Keep this information for further reference. Thank you for purchasing a NavePoint product. If you have any questions regarding the installation or use of your product, please call us at 888.505.1363. Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not attempt to install or use product if it has been damaged.
  • Page 2: Feature Identification

    1- Front Door (Perforated or Glass) 2- Back Door 3- Removable Side Panel (4x) 4- Top Panel (Fan Compatible or Cable Management) 5- Bottom Panel 6- Vertical Mounting rails (4x) 7- Cable Management Rails (2x) 8- Casters (4x) 9- Levelers (4x) www.NavePoint.com customerservice@navepoint.com...
  • Page 3 The cabinet should be moved close to its installation location before it is unpacked. (Use a forklift or pallet jack to move the shipping container.) WARNING: Do not pull the cabinet toward you as it may result in injury. www.NavePoint.com customerservice@navepoint.com...
  • Page 4: Enclosure Configuration

    2: Use an open-end wrench to lower each leveler until it contacts the floor. 3. Enclosure Configuration -Door Locks The front/back door and 4 side panels contain locks that are lockable with the included keys. www.NavePoint.com customerservice@navepoint.com...
  • Page 5: Reversing Front Door

    3: Lift the door from the hinges and remove it from the Front Frame of the cabinet. 4: Remove the door hinges from the Front Frame. 5: Rotate both hinges 180 degrees and attach them on the opposite side of the Front Frame. www.NavePoint.com customerservice@navepoint.com...
  • Page 6 7: Unscrew the Front Door Lock and rotate it 180 degrees. Reattach the Front Door Lock into the Front Door. 8: Unscrew two hinges inside of the Front Door, then reattach each of them using the holes above the original position. www.NavePoint.com customerservice@navepoint.com...
  • Page 7: Adding Or Removing Side Panels

    WARNING: Do not attempt to use the roof panel for weight-bearing purposes. Do not attempt to add or remove the roof panel without assistance. From inside of the enclosure, Pull the 2 pins near the rear of the roof panel and push the roof panel upward. www.NavePoint.com customerservice@navepoint.com...
  • Page 8 3: Slide the mounting rails to the desired depth and reattach them. The depth of the 2 Cable Management Rails can be adjusted using the same method. The rail attachment points are numbered to help you align each pair of rails at the same depth. www.NavePoint.com customerservice@navepoint.com...
  • Page 9 If you want two cabinets to be connected without any gap, use the middle hole(D) of the bracket. 4: After connecting all brackets and confirming that the cabinets do not need further adjustment, tighten all screws. www.NavePoint.com customerservice@navepoint.com...
  • Page 10 NavePoint shall not be liable for loss of use of the product or any other consequential or incidental costs, expenses or damages incurred by the purchaser by using this product. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for use to extent permitted by Federal and/or state law.
