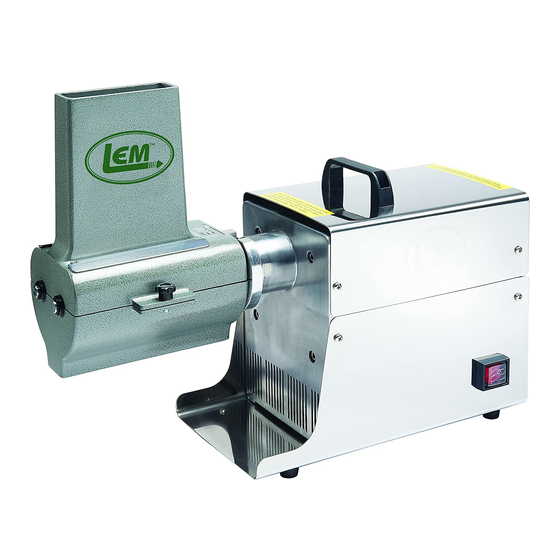

LEM 602SS Use & Maintenance

TO INSTALL TENDERIZER ATTACHMENT:
1. Align the drive shaft of the motor with the hub (#9) and drive shaft (#11) of the tenderizer and
tighten the star bolt (#15) securely.
2. Insert the two meat combs (#1) into the slots in the top of the upper housing (#3) – one comb
on each side of the chute. The combs should slide easily into the holes between the drive and
drive shafts. When inserted properly the combs will be visible from the bottom of the lower case
(#8). If, when in use, the meat is wrapping around the knives and rollers the combs are not
inserted properly.
• Turn unit off and remove plug from wall outlet.
• Remove combs.
• Unscrew thumbscrews.
• Carefully remove wrapped meat from rollers.
• Reassemble tenderizer and insert combs following above directions. Sometimes switching the
combs to the opposite side helps.
• Plug in tenderizer and continue.
TO CLEAN:
1. Turn unit off and remove plug from wall outlet.
2. Remove tenderizer attachment from grinder by loosening star bolt (#15).
3. Remove meat combs (#1).
4. Remove thumbscrews (#2).
5. Remove upper case (#3).
6. Remover the drive and driven cutter shafts.
7. Wash with hot soapy water. Rinse and dry parts thoroughly. (Since meat will ultimately
get between the knives and the spacers, occasionally the drive and driven units should be
disassembled, and each piece washed thoroughly. Start disassembly by removing the C-Clip
(#15) on the end opposite the gear. When reassembling the drive unit, start with a single
spacer, and end with a two spacers. When reassembling the driven shaft, start with a two
spacers, and end with a single spacer. Also note that each cutter blade has a single notch
in the square portion. Make sure these notches lineup on the shaft. Doing this will assure
that the blades all line up correctly.) A video of the reassembly process may be viewed
at the lemproducts.com.
8. To reassemble,
• Put the drive cutter shaft (#13) roller into position first.
• Put the driven cutter shaft (#4) roller into position next.
• Make sure the gears (#14) are properly aligned and mesh.
• Replace upper case (#3) and secure with thumbscrews (#2).
LEM Products offers accessories to attach to the 602SS motor: 25 lb. Meat Mixer and
a #8 Grinder kit. Please call 1-877-536-7763 to purchase additional products or to
request a free catalog.
LEM Products • 109 May Drive, Harrison, OH 45030 • PH: 1-877-536-7763 • www.lemproducts.com
I I N N S S T T R R U U C C T T I I O O N N S S
F F O O R R L L E E M M M M E E A A T T
T T E E N N D D E E R R I I Z Z E E R R
M M O O D D E E L L : :
6 6 0 0 2 2 S S S S
PLEASE READ BEFORE OPERATING EQUIPMENT
