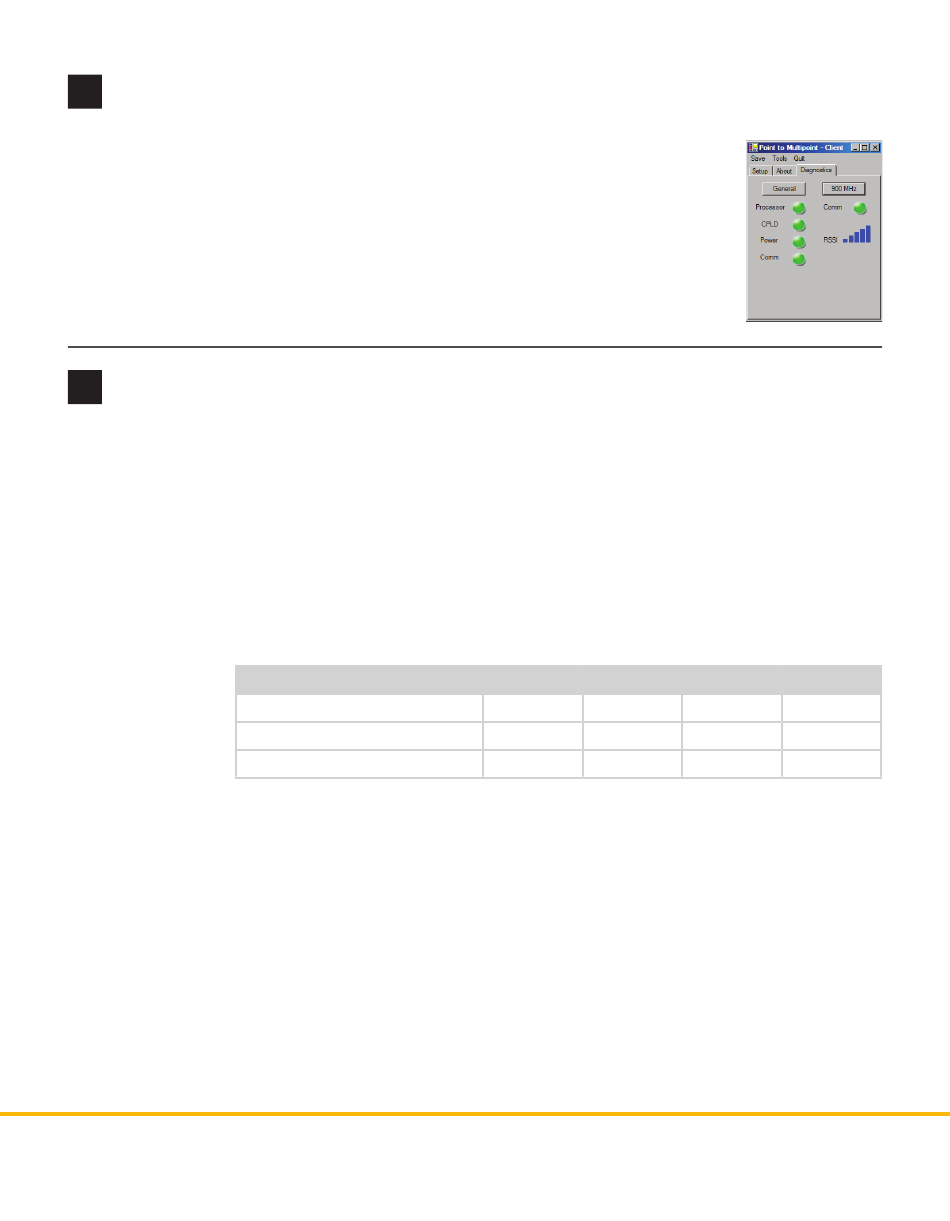

Verify the connections

The Diagnostics tab has an RSSI display that shows the relative RSSI strength of the radio; it
is useful for detecting a low signal. Try one of the following if the RSSI signal is low:
˽ Boost the transmit power of the radio
˽ Check the gain on the antenna
˽ Replace the antenna
˽ Check line of sight to determine if any obstacles are blocking the signal
10

Verify wireless link

Make sure there is a valid wireless link between two Click 400 modules by performing a link test.
1
Use one of the drivers in Click Supervisor to set the two devices to the same RF channel.
2
Set one of the devices to Link Test mode as a server by pressing the push-button, then releasing when
the blue LED begins flashing. A server in Link Test mode will have a solid blue and red LED and the
green LED will begin flashing as it sends data for the test.
3
Set the other device in Link Test mode as a client by pressing the push-button then releasing when the
blue LED turns on solid. The client device will have a solid red LED.
4
Watch the client to be sure it has found a server: if the device finds a server on the same channel, the
blue LED will
be solid.
Link test result
5
Once you're
Getting good data from server
sure the client
Getting bad data from server
has found a
server, watch
Cannot see server
the LEDs on
the client to
see the results of the link test. A blinking green LED means that the client is receiving valid link test
data from the server; a flashing yellow LED means that the device is receiving invalid link test data; and
a solid yellow LED means no data is being received.
6
If the device is receiving invalid link test data, verify that the server is in link test mode. If this does not
fix the problem, then check the line of sight and the antenna for possible problems.
7
Once the test is complete, the devices must be taken out of Link Test mode in order to operate. Press
and release the push-button on each device to exit Link Test mode.
Note. Once Link Test mode has been exited, the clients will remain clients and the servers will remain serv-
ers until they are set to be otherwise. A device must always be either a client or a server.
