Astria Fireplaces Rhapsody42 Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS FOR REQUIRED AND OPTIONAL ACCESSORIES
FOR USE ON 42- AND 54-INCH LINEAR DIRECT-VENT GAS FIREPLACES
[FIREPLACE MODELS: Rhapsody42 and Rhapsody54 Series]
HOT GLASS WILL CAUSE BURNS. DO NOT
TOUCH GLASS UNTIL COOLED. NEVER
ALLOW CHILDREN TO TOUCH GLASS.
• Fireplaces surfaces get EXTREMELY HOT!
• Install only when fi replace is OFF and COLD.
• The glass on the front of the fi replace reaches
EXTREMELY HIGH temperatures and can cause severe
burns if touched. Even after the gas is turned off,
fi replace surfaces remain extremely hot.
• Keep children away from an operating fi replace. Closely
supervise children in any room where a fi replace is
operating to prevent contact with glass.
f i r e - p a r t s . c o m
CAUTION
RISK OF PERSONAL INJURY OR PROPERTY DAMAGE.
• Never operate fireplace without liner panels installed. These
appliances are NOT approved for operation without liner panels.
• Do NOT abuse glass doors by striking or slamming shut
• Never operate fi replace with glass door assembly removed.
• Handle glass door assembly with extreme care.
Replace damaged glass door assembly with approved
replacement assembly only.
• Use only media approved for use with these fi replaces
(as applicable). Failure to use approved media may result
in sooting, delayed ignition, or other improper fi replace
operation, and may void the warranty.
NOTICE
• Read all steps before starting installation.
• LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE.
• All warnings, precautions, and instructions in the Installation
and Operation Instructions provided with the appliance also
apply to these instructions.
• If you encounter any problems, need clarifi cation of these
instructions, or are not qualifi ed to properly install this
kit, contact your local distributor or dealer.

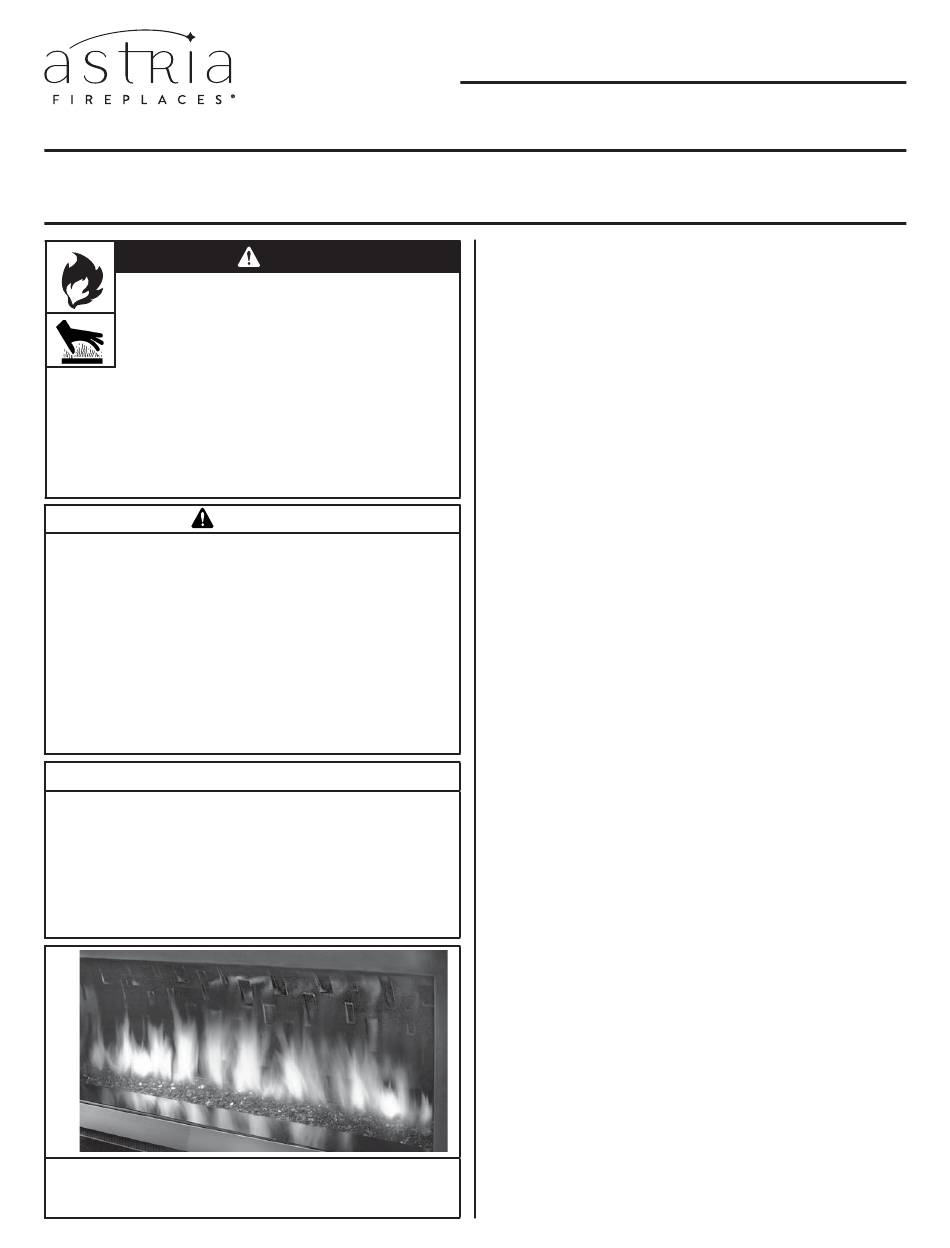

Figure 1 - 54 in. Rhapsody linear gas fi replaces with
designer fl oor kit and Illusion Cityscape fi rebox
panel kit (both in black porcelain).
DANGER
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
P/N 900077-05
Rev. A 09/2016
GENERAL INFORMATION
This document contains installation instructions for the following
required and optional accessories for Rhapsody
vent gas fi replaces manufactured by INNOVATIVE HEARTH
PRODUCTS (IHP).
Kit descriptions, catalog/model numbers, and contents are listed
on the next page.
Required Accessory Kits
The following accessory kits are REQUIRED for complete fi re-
place installation.
NOTE: Ensure these kits are available before installing the fi re-
place.
• Firebox Panel Kit
(Rhapsody models only)
• Floor Kit
(Rhapsody models only)
• Media Kit *
* Media kit required with "Designer" style fl oor kits only (Rhapsody models only)
Media must not be used with Refection fl oor.
Optional Accessory Kits
The following accessories are OPTIONAL. However, to minimize
required labor, all options should be installed at time of fi replace
installation, if possible.
• Surround Kit
• Bezel Kit
• Firebox Backlight Kit **
• Power Vent Kit
(see manual 506022-01 for installation instructions)
** Firebox backlight kit for use with "Cityscape" and "Illusion" style fi rebox
panel kits (Rhapsody models only)
REQUIRED TOOLS
NOTE: Power tools are NOT recommended when installing fi re-
place accessories, especially porcelain fi rebox panels.
• 5/16" Hex-head Nut Driver
• #3 Phillips Head Screwdriver
(for fi replace door removal/installation)
• Glass Cleaner (non-ammoniated)
• Non-abrasive rag
• High-temperature sealant
®
(e.g., Mill-Pac ; if installing fi rebox backlight kit)
• Safety Glasses
• Protective Work Gloves
HEARTH PRODUCTS
KITS AND ACCESSORIES
LINEAR DIRECT-VENT FIREPLACES
ACCESSORY KITS
®
linear direct-
(Rhapsody models only)
