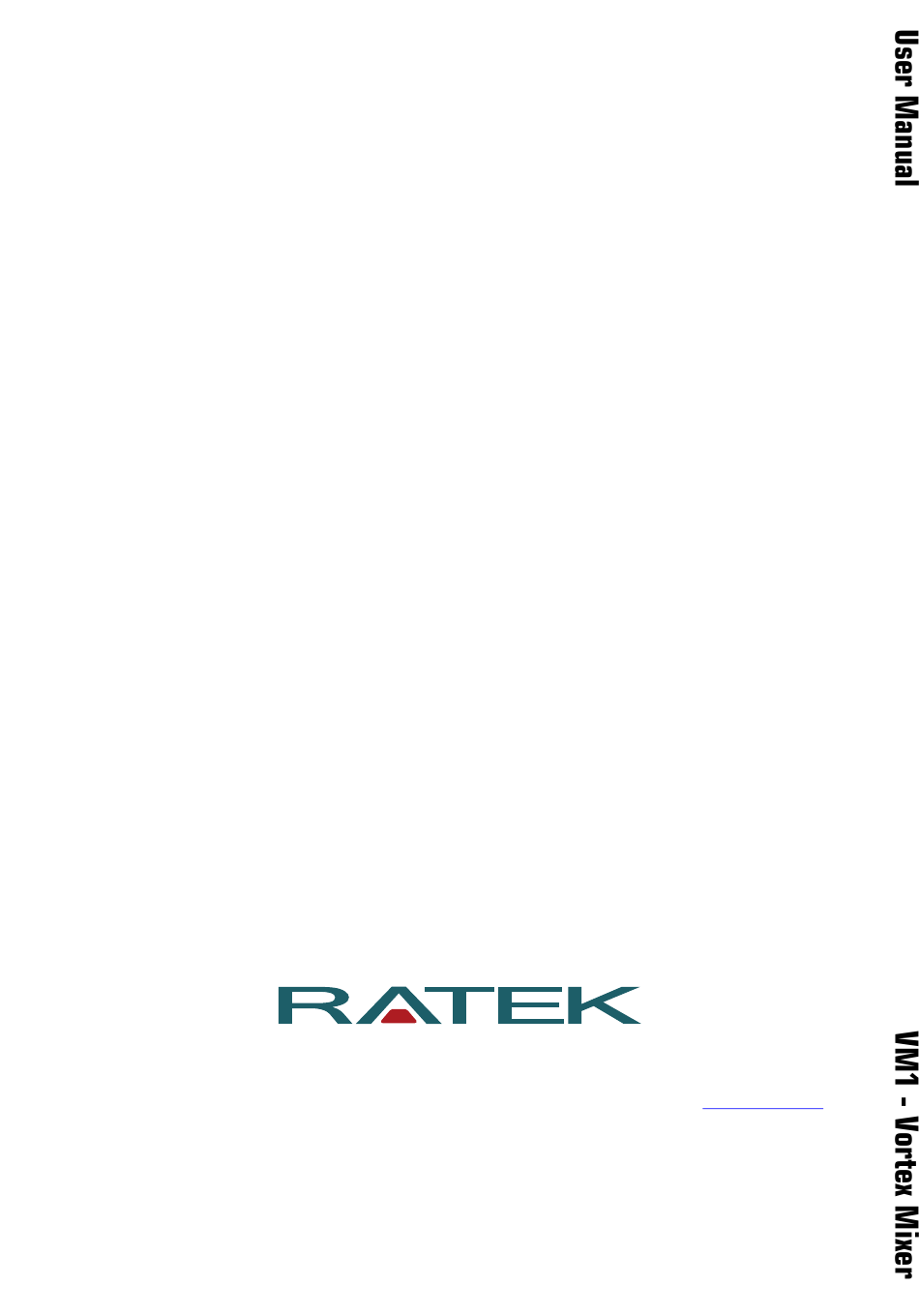

Ratek VM1 Vortex Mixer – User Manual
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
User Manual
Vortex Mixer
Model : VM1
Version: 1.1 – 22/04/2015
English
www.ratek.com.au
60 Wadhurst Dve, Boronia, Victoria 3155, Australia - P: +613 9887 2161 - F: +613 9887 2163 - E:
sales@ratek.com.au
© All Rights Reserved
Made in Australia, User Manual printed in Australia
Changes without prior notification reserved
Errors and omissions excepted.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 1 of 16
