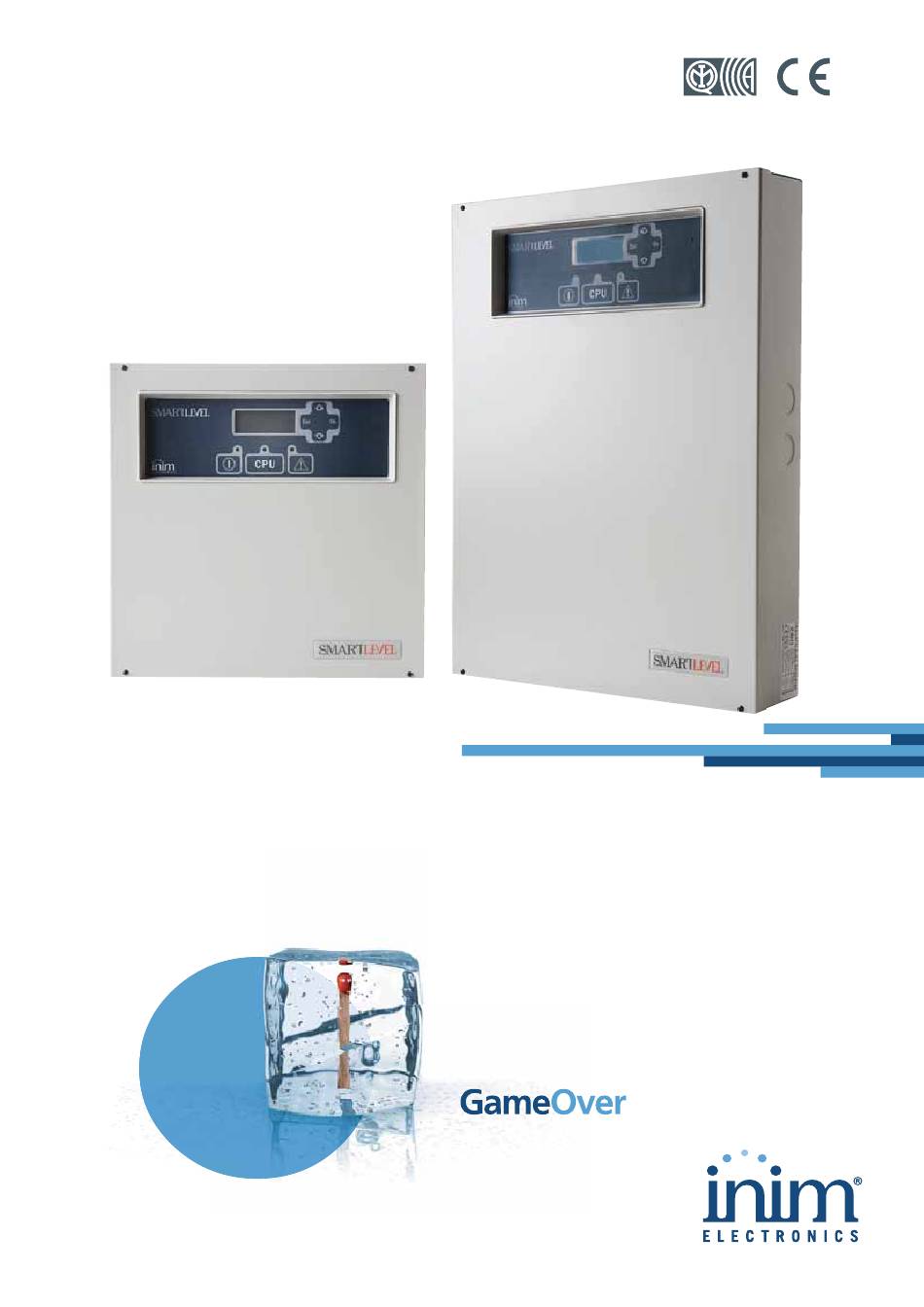

- Page 1 Installation and programming manual 0051 EN 54-4 0051-CPR-0170 0051-CPR-0171 SmartLevel SPS24060G SPS24160G Power supply station Installation and programming manual ISO 9001 Quality Management certified by BSI with certificate number FM530352...
-
Page 2: Copyright
Power supply stations Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. European directive compliance This power station has been designed and developed to the highest standards of quality and performance implemented by INIM Electronics. -
Page 3: Table Of Contents
Installation and programming manual Table of contents Copyright ................2 European directive compliance ..........2 Table of contents..............3 Chapter 1 Overview................5 Application and use 5 The system parts and definitions 6 The SmartLevel power supply stations 6 Chapter 2 General information .............. - Page 4 Power supply stations Chapter 10 Programming and maintenance from the panel ....... 27 10.1 Programming operations 27 10.2 Direct Maintenance 28 10.3 Closing a Programming/Maintenance session 28 Chapter 11 Troubleshooting ..............29 11.1 Current faults list 29 11.2 “Output protection” fault 29 11.3 Battery faults 30 11.4...
-
Page 5: Overview
• direct connection to RS485 BUS The SmartLevel can operate in stand-alone mode using the fault signaling output and on-board data, or combined mode using the RS485 BUS of an INIM Electronics fire detection system (refer to Chapter 4 - Functions and features). -
Page 6: The System Parts And Definitions
Power supply stations The system parts and definitions Switching power supply: this unit, starting from the mains power supply (230V ) it connects to, supplies the board with a 24V (27,6V ) stabilized current capable of feeding the control panel and recharging the batteries. -
Page 7: General Information
Supplied documentation The power supply station comes with a combined "Installation and Programming Manual" (this document). For further copies of the installation manual, please contact INIM electronics offices quoting the order number shown in Appendix A Order codes. Manual details •... -
Page 8: Recommendations
Power supply stations Recommendations INIM Electronics recommends that the entire system be checked completely at regular intervals (refer to paragraph 2.7 System test). System test This system has been designed to provide the highest standards of reliability and performance. Malfunction of any of the system devices may cause the system to be incapable of reaching the intended levels of performance. -
Page 9: 2.11 Manufacturer's Name And Address
2.13 Warranty INIM Electronics s.r.l. warrants that for a period of 24 months from the date of commissioning, the product shall be free of defects in materials and workmanship. The warranty applies only to defects in parts and workmanship relating to normal use. It does not cover: •... -
Page 10: Safety Laws
If located in their housings, the electronic circuits of INIM Electronics products are highly immune to electrostatic discharge. -
Page 11: Device Management
Installation and programming manual Chapter 3 Device management Product handling and storage This device is safely packed inside a cardboard box, however, care must be taken to avoid accidental damage during handling. Cartons/boxes should be placed in such a way as to avoid knocks and falls, and special care must be taken to protect the devices from extreme heat and/or cold. -
Page 12: Functions And Features
Power supply stations Chapter 4 Functions and features Controlling the Outputs The power-supply outputs can be controlled locally, via the on-board inputs B1, B2 and B3 or remotely, via the RS485 BUS of an INIM Fire detection panel. The outputs follow the "OR" logic of the status of their command inputs, refer to the following Table. Command input Remote command via RS485 BUS Output... -
Page 13: Controlling The Outputs Via The Inputs
The details of fault events can be viewed on the power supply station display. The following wiring diagram shows a loop connection using an input/output module from INIM Electronics s.r.l. ENEA series: ORANGE... -
Page 14: Protection Circuit
Power supply stations Protection circuit The outputs are protected against short-circuit and overload by a protection circuit (circuit breaker) which operates in the same way as a fuse. If the protection circuit intervenes, the power supply station will signal the fault and protect the interrupted line before making three attempts to re-activate it. -
Page 15: Technical Description
Installation and programming manual Chapter 5 Technical description Station Frontplate with display, keys and signalling LEDs Front cover Securing screw location for the front cover Plastic support for front panel and motherboard mounting Plastic support anchor screw About the motherboard Power supply module Backup battery housing Cable entry... -
Page 16: Internal Devices
Power supply stations Internal devices Figure 8 - The SmartLevel motherboard Main components RS485 BUS terminals for direct connection to INIM Fire detection panels RS485 ISOLATED Input terminals (B1, B2, B3) INPUT Voltage free fault relay contacts FAULT Output channels terminals OUT1, OUT2, OUT3... -
Page 17: Technical Specifications
Installation and programming manual SPS24060G SPS24160G power supply power supply Figure 9 - Switching power supply The switching power supply is attached to the backplate of the metal enclosure. The power supply type depends on the station model. SPS24060G SPS24160G Mains input terminal board AC Input AC Input... -
Page 18: User Interface
Power supply stations Chapter 6 User interface Figure 10 - Front panel Keys To be used to navigate through the menus on the display. The effect these keys have Ok/Esc during programming depends on the specific field. See Chapter 10 - Programming and maintenance from the panel. -
Page 19: Installation Instructions
Installation and programming manual Chapter 7 Installation instructions Wall mounting 1. Pull the wires through the wire entry and ensure they do not get in way of operations. 2. Prepare the wall for the four 8mm anchor screws (stop screws) which must be positioned in correspondence with the holes on the backplate of the metal enclosure (paragraph 5.1 - [J]). -
Page 20: Connecting The Output Channels
Power supply stations Jumper position for the EOL Jumper position for the power-supply station centrally positioned power supply stations Figure 12 - Jumper position for Connecting the output channels Outputs OUT1-2-3 supply 24V (27.6V ) and a maximum current of 1.3A for the SPS24060G model and 3.6A for the SPS24160G model. -
Page 21: Connecting The Batteries
Installation and programming manual SPS24060G SPS24160G station station Figure 13 - Earthing system 2. Crimp the earth line wire to the eyelet terminal [B] (included in the package). 3. Attach the wire with the eyelet to the control panel using the ground connection screw [C]. 4. - Page 22 Power supply stations SPS24060G SPS24160G power supply power supply Figure 14 - Connecting the batteries 1. Connect the connection wire [A] to the two batteries. 2. Connect the wire [B] to the batteries. Attention: Be sure that cable polarity is correct. 3.
-
Page 23: Thermal Probe
Installation and programming manual Thermal probe Attention: In order to validate the IMQ-SISTEMI DI SICUREZZA certification and comply with EN 54-4 requirements, installation of a thermal probe is essential. The thermal probe regulates the charging process in accordance with the battery temperature. The thermal probe protects against battery overheating and consequent permanent damage. -
Page 24: Powering Up The System
Power supply stations Chapter 8 Powering up the system 1. Connect the batteries. The green ON LED will light to indicate that the power supply station is operative. The CPU LED will blink to indicate that the board is stabilizing. 2. -
Page 25: Viewing The Display Screens
Installation and programming manual Chapter 9 Viewing the display screens You can navigate on the display screens using keys S, T, Ok and Esc. Presentation screen SP S24 1 .0. 0 0 8/ 07/ 14 18 :2 3 0.9 A 0 .5A 1. -
Page 26: Main Menu
Power supply stations Main menu This menu will allow you to carry out programming/maintenance operations and view the Events log. 9.3.1 Testing the LEDs and buzzer From station: Ok, LED test, Ok The 3 LEDs on the panel will go On and the buzzer will emit an audible signal for the whole time the Ok button is pressed. -
Page 27: Programming And Maintenance From The Panel
Installation and programming manual Chapter 10 Programming and maintenance from the panel Access to the programming and maintenance sections is allowed only when the PROG jumper is inserted: 1. Remove the frontplate L ED te st 2. Insert the PROG jumper. R ese t sta ti on M ain te nan ce 3. -
Page 28: Direct Maintenance
Power supply stations 10.1.3 Addressing the power supply station on the RS485 BUS From station: Ok, Programming, Ok, Address RS485, Ok This programming section will allow you to assign addresses to all the power-supply stations on the RS485 BUS of the INIM fire detection panel. Select an address from 01 to 16 (the default address is 01). -
Page 29: Troubleshooting
Installation and programming manual Chapter 11 Troubleshooting Attention: Only authorized operators Level 3 may rectify faults. 11.1 Current faults list If faults occur, the power-supply station will provide the fault details on the display. The first line on the screen shows the chronological order number of Fau lt 0 1/0 6 Bat t. -
Page 30: Battery Faults
Power supply stations 11.3 Battery faults 11.3.1 Battery Disconnected or Inefficient The battery is not connected or has failed the battery efficiency test Fa ul t 01 /01 Ba tt .fa ul t (EN 54-4:1997 A2 amendment). 1. Allow the batteries to charge for several hours. 2. -
Page 31: Maintenance
Installation and programming manual Chapter 12 Maintenance The following operations must be carried out regularly. 1. Using a damp lint-free cloth, remove any dust that may have gathered on the control panel (do not use any kind of cleaning product or solvent!). 2. -
Page 32: Appendix A Order Codes
Power supply stations Appendix A Order codes Following are the order codes of INIM Electronics s.r.l. products: Code Description DCMIINIESPS24G Installation and programming manual for SPS24060G and SPS24160G power- supply stations IPS24060G 60W - 27.6V Switching power-supply module IPS24160G 160W - 27.6V Switching power-supply module... - Page 33 Installation and programming manual...
- Page 34 ISO 9001 Quality Management certified by BSI with certificate number FM530352 via Fosso Antico snc - fraz. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz...
