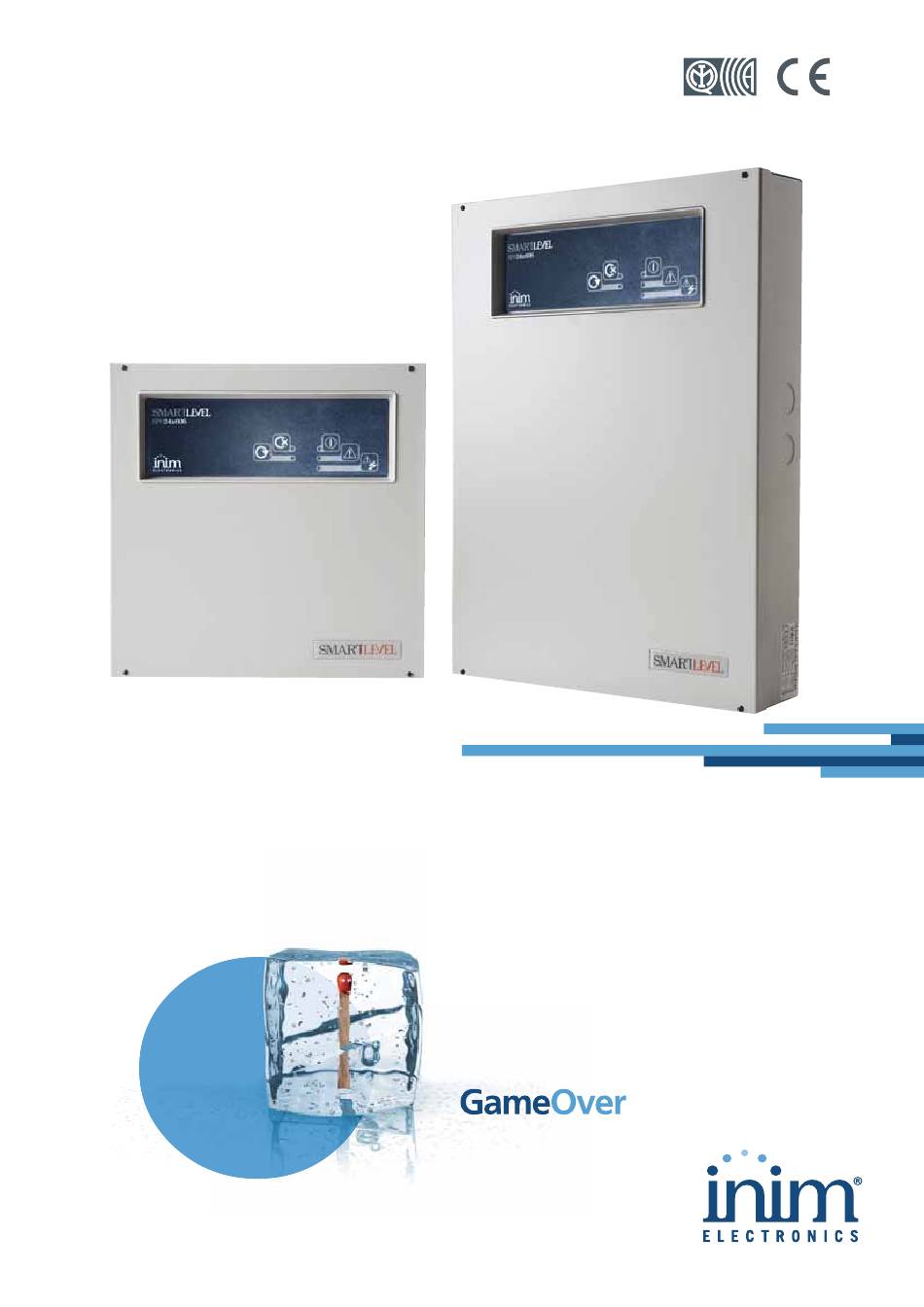

- Page 1 Installation manual 0051 EN 54-4 1438 EN 12094-1 0051-CPR-0433 0051-CPR-0434 SmartLevel SPS24060S SPS24160S Power supply station Installation manual ISO 9001 Quality Management certified by BSI with certificate number FM530352...
-
Page 2: Copyright
Power supply stations Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. European directive compliance This power station has been designed and developed to the highest standards of quality and performance implemented by INIM Electronics. -
Page 3: Table Of Contents
Installation and programming manual Table of contents Copyright ................2 European directive compliance ..........2 Table of contents..............3 Chapter 1 Overview................5 Application and use 5 The system parts and definitions 6 How to use the power supply station 6 The SmartLevel power supply stations 6 Chapter 2 General information .............. - Page 4 Power supply stations Table of contents...
-
Page 5: Overview
• loop connection The SmartLevel can operate in stand-alone mode using the fault signaling output and on-board data, or combined mode using the loop of an INIM Electronics fire detection system (refer to Chapter 4 - Technical description). Loop supervised by INIM... -
Page 6: The System Parts And Definitions
Power supply stations The system parts and definitions Switching power supply: this unit, starting from the mains power supply (230V ) it connects to, supplies the board with a 24V (27,6V ) stabilized current capable of feeding the control panel and recharging the batteries. -
Page 7: General Information
Electronics, and refers to the devices specified in paragraph 2.10 CE Mark. Disclaimer INIM Electronics s.r.l. shall not be responsible for damage arising from improper application or use. Only qualified personnel (refer to Terminology) should touch this device. Installation must be carried out strictly in accordance with the instructions described herein, and in compliance with the local fire code in force. -
Page 8: Conventions
Power supply stations • Power supply unit: refers to the device defined in paragraph 2.10 CE Mark. • Left, right, behind, above, below: refer to the directions as seen by the operator in front of the mounted device. • Qualified personnel: those persons whose training, expertise and knowledge of the laws and bylaws regarding service conditions and the prevention of accidents, are able to identify and avoid all possible situations of danger. -
Page 9: 2.10 Ce Mark
2.11 Warranty INIM Electronics s.r.l. warrants that for a period of 24 months from the date of commissioning, the product shall be free of defects in materials and workmanship. The warranty applies only to defects in parts and workmanship relating to normal use. It does not cover: •... -
Page 10: Replacement And Disposal Of Used Devices
If located in their housings, the electronic circuits of INIM Electronics products are highly immune to electrostatic discharge. -
Page 11: Device Management
Installation manual Chapter 3 Device management Product handling and storage This device is safely packed inside a cardboard box, however, care must be taken to avoid accidental damage during handling. Cartons/boxes should be placed in such a way as to avoid knocks and falls, and special care must be taken to protect the devices from extreme heat and/or cold. -
Page 12: Technical Description
Power supply stations Chapter 4 Technical description Station Front panel with signaling LEDs Front cover Securing screw location for the front cover Plastic support for front panel and motherboard mounting Plastic support anchor screw About the motherboard Power supply module Backup battery housing Cable entry Anchor screw hole... -
Page 13: Internal Devices
Installation manual Internal devices Figure 5 - The SmartLevel motherboard Main components Loop connection terminals LOOP Voltage free fault relay contacts FAULT Voltage free mains fault relay contacts MAINS Output channel terminals (2 “+” terminals and 2 “-” terminals in parallel) OUTPUT Power-supply module connectors DO NOT USE... -
Page 14: Signalling Leds
Power supply stations SPS24060S SPS24160S Mains input terminal board AC Input AC Input 230V ~ 50/60 Hz 230V ~ 50/60 Hz SmartLevel mother board connector Battery connector Thermal probe connector Signaling LEDs Ground fault signaling jumper input (if the jumper is removed, earth faults will not be signaled) Note: INIM s.r.l. -
Page 15: Technical Specifications
Installation manual Colour Signalling Note Power supply green Indicates that the power-supply unit is In case of fast blinking the LED module operating (On). indicates an overheat condition of the power-supply unit. In case of slow blinking the LED indicates an overload of the outputs. yellow Indicates an active mains fault In case of slow blinking the LED... -
Page 16: Installation Instructions
Power supply stations Chapter 5 Installation instructions Wall mounting 1. Pull the wires through the wire entry and ensure they do not get in way of operations. 2. Prepare the wall for the four 8mm anchor screws (stop screws) which must be positioned in correspondence with the holes on the backplate of the metal enclosure (paragraph 4.1 - [J]). -
Page 17: Connecting The Batteries
Installation manual SPS24160S SPS24060S station station Figure 8 - Earthing system Note: A protective earth connection ensures that all exposed conductive surfaces are at the same electrical potential as the earth surface, in order to avoid the risk of electrical shock if a person touches a device in which an insulation fault has occurred. -
Page 18: Thermal Probe
Power supply stations SPS24060S SPS24160S power supply power supply Figure 9 - Connecting the batteries The batteries are the secondary power supply of the system. The power supply station monitors the battery status (efficiency and charge). The battery-test circuit of the power supply station operates as follows: •... -
Page 19: Diagnostics And Fault Solutions
Installation manual Chapter 6 Diagnostics and fault solutions Battery disconnected or inefficient The battery is not connected or has failed the battery efficiency test (EN 54-4:1997 A2 amendment). 1. Allow the batteries to charge for several hours. 2. If the fault signal persists, disconnect the batteries from the station and test them separately. 3. -
Page 20: Maintenance
Power supply stations Chapter 7 Maintenance The following operations must be carried out regularly. 1. Using a damp lint-free cloth, remove any dust that may have gathered on the control panel (do not use any kind of cleaning product or solvent!). 2. - Page 21 Installation manual Maintenance...
- Page 22 Power supply stations Maintenance...
- Page 23 Installation manual...
- Page 24 ISO 9001 Quality Management certified by BSI with certificate number FM530352 via Dei Lavoratori 10 - fraz. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz...
