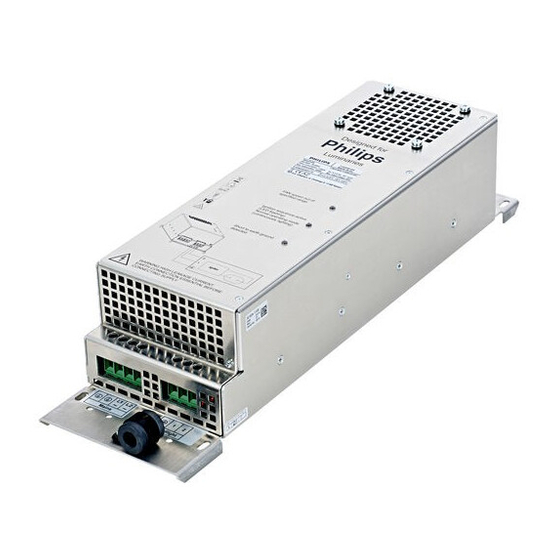

Philips GearUnits ECM 330
Mounting instructions
EN61347
ECM 330
MHN-SEH 2000W
MHN-LA 1000W
1. Lamp currents are approximate data. For exact data refer to the lamp data sheet.
2. Ignitor on the luminaire, not on the gear unit.
Maximum distance in between e-ballast gear unit and floodlight is 80 m for 1000 W and 120 m for 2000 W versions.
See below table for recommended cable cross sections.
3. Current ripple: <10 %.
4. Earth leakage current: 480 V, 50-60 Hz <3.5 mA.
5. Output power tolerance: ±5 %.
6. Mains supply voltage fluctuation not more than -8 % and +6 % from the rated voltage of the ballast.
84
26
62
28.5
126
8
6.3
4411 102 68142
12/2014
Data subject to change
Printed in France
www.philips.com/lighting
1/2
MAINS
277-480V 50-60Hz
3.4
220-480V 50-60Hz
3.4
530
80
240
460
472
530
-30°C
+55°C
2100
8.2-4.7
-30°C +55°C
1040
5.1-2.3
40
127.4
12.7
14
143
8.5
13.75
11
240
PF>0.97
530x143x127
PF>0.97
530x143x127
9.5
145
143
120.7
13
45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GearUnits ECM 330 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips GearUnits ECM 330

  • Page 1 Philips GearUnits ECM 330 Mounting instructions EN61347 ECM 330 MAINS MHN-SEH 2000W 277-480V 50-60Hz -30°C +55°C 2100 8.2-4.7 PF>0.97 530x143x127 PF>0.97 530x143x127 MHN-LA 1000W 220-480V 50-60Hz -30°C +55°C 1040 5.1-2.3 1. Lamp currents are approximate data. For exact data refer to the lamp data sheet.
  • Page 2 Extreme care must be taken when testing the unit live. The use of an isolating transformer is mandatory. On no account may grounded test instruments / meters be used for this purpose! Philips does not assume liability for disregarding of this notice, incorrect use of the EPS and ignitor or dis-regarding of any legal requirements. This product is subject to technical changes without prior notice.
