4D systems 4DPi-32-II Quick Start Manual

4DPi-32/35 Rev2.0 Workaround

Introduction

This document outlines a work around for using the 4DPi-32-II (Rev2.X) and 4DPi-35-II (Rev2.X) with the older

Raspberry Pi A and B versions with a 26-pin Header.

The latest versions of the Raspberry Pi include a 40-pin Pin-header. In the older versions a 26-pin header was used

with an RCA Connector and Audio jack positioned next to the Pin-header. In the latest versions of the 4DPI-32/35,

the 26-pin female header has been replaced with a 40-pin female header to better accommodate the latest

versions of the Raspberry Pi. For this reason, it is no longer possible to physically connect the 4DPi-32 and 4DPi-35

directly onto the older versions of Raspberry Pi.

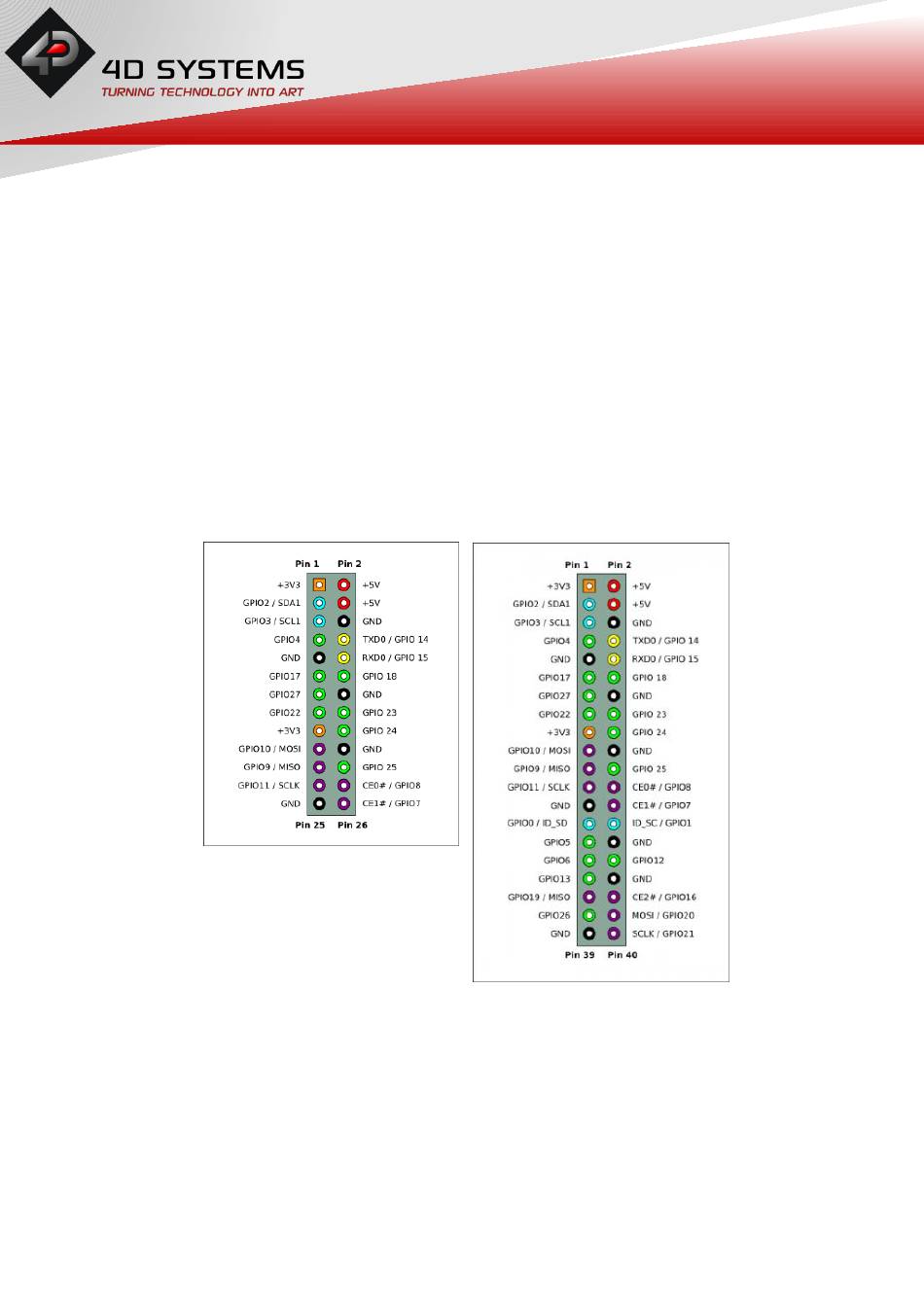

Raspberry Pi Pin header comparison RPi A / B (left) and A+, B+ and PI2 (right)

Document Updated: 09 November 2015

1/4

Table of Contents

Do you have a question about the 4DPi-32-II and is the answer not in the manual?

Page 1 4DPi-32/35 Rev2.0 Workaround Introduction This document outlines a work around for using the 4DPi-32-II (Rev2.X) and 4DPi-35-II (Rev2.X) with the older Raspberry Pi A and B versions with a 26-pin Header. Background The latest versions of the Raspberry Pi include a 40-pin Pin-header. In the older versions a 26-pin header was used with an RCA Connector and Audio jack positioned next to the Pin-header.
Page 2 The breakout header (P2), is no longer included in Revision 2.0 Hardware  A Header (H1) for user buttons has been included:  An ID EEPROM has been integrated 4DPi-32/35 Hardware revision 1.x versus Hardware revision 2.0 in pictures. © 2015 4D Systems Pty Ltd Document Updated: 09 November 2015...
Page 3 1 x 26 pin header with a pitch of 2,54mm and a pin length of 6mm on both sides  – a 2.54mm 40 Way 2 Row Straight PCB Socket cut to size - 26 pins. © 2015 4D Systems Pty Ltd Document Updated: 09 November 2015...
Page 4: Software Requirements
2. Insert the resized PCB socket with 26 pins into your 4DPI-32/35 Module. Observe the pinout on the silkscreen. 3. Insert the Raspberry Pi pins into the PCB socket. Observe the pinout on the silkscreen. If you have any questions regarding this workaround, please contact 4D Systems Technical support at support@4dsystems.com.au. © 2015 4D Systems Pty Ltd...
