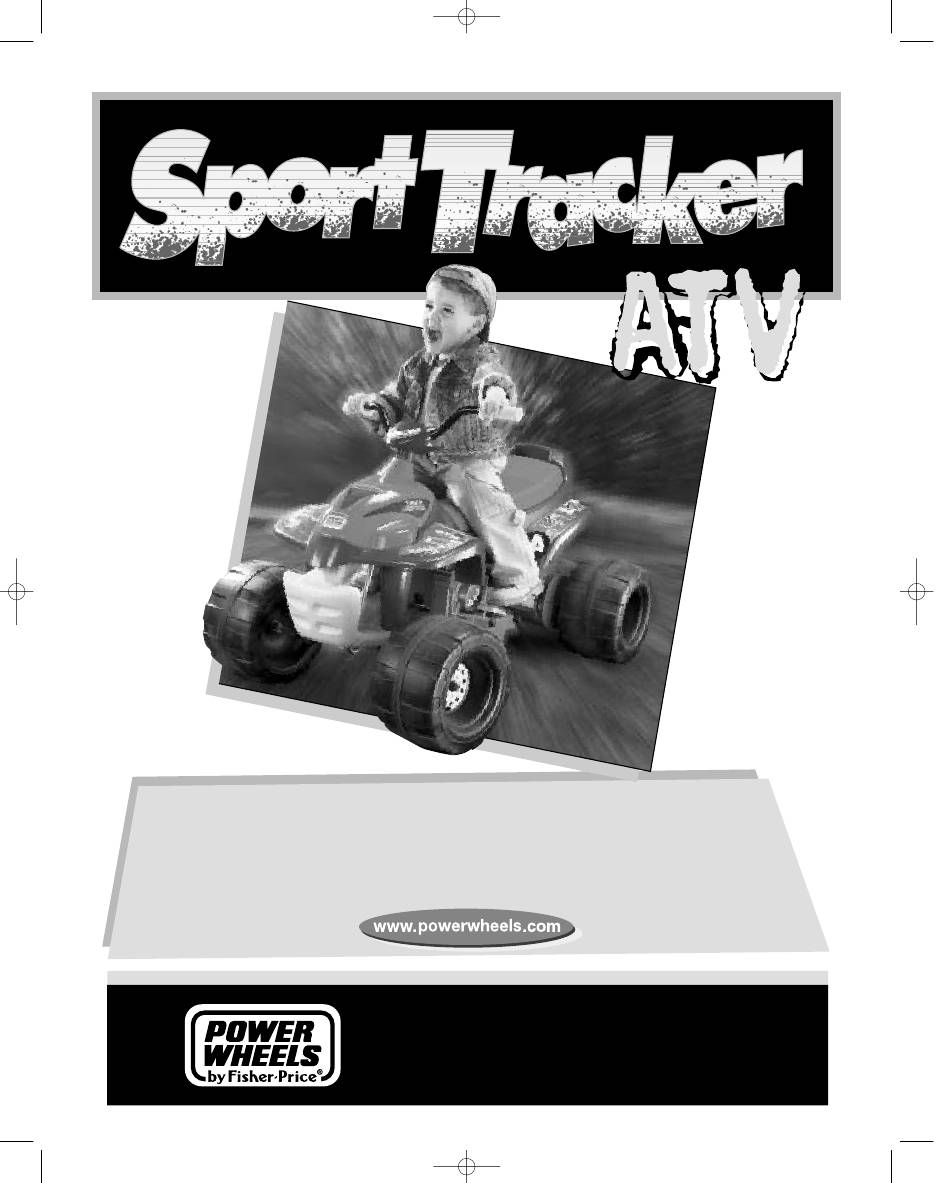

G4626pr-0920
5/28/04
1:29 PM
Page 1
TM
In an effort to provide the best products possible, we periodically make product modifications. Actual products may not be identical to items pictured above.
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver, Hammer
and Pliers (not included); Cap Nut Assembly Tool (included).
Use only with a Power Wheels
6 Volt Rechargeable Battery with A-Style Connector and Built-in
®
Thermal Fuse and a Power Wheels
®
Super 6
™
Volt Charger (both included).
Owner's Manual
with Assembly Instructions
For Model G4626

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER WHEELS Sport Tracker ATV G4626 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price POWER WHEELS Sport Tracker ATV G4626

Summary of Contents for Fisher-Price POWER WHEELS Sport Tracker ATV G4626

  • Page 1 G4626pr-0920 5/28/04 1:29 PM Page 1 In an effort to provide the best products possible, we periodically make product modifications. Actual products may not be identical to items pictured above. Please read this manual and save it with your original sales receipt. Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver, Hammer and Pliers (not included);...

  • Page 2: Table Of Contents

    • Use this vehicle ONLY outdoors. Most interior floor- charge. To find the authorized service center nearest ing can be damaged by riding this vehicle indoors. to you, visit us on-line at www.powerwheels.com Fisher-Price ® will not be responsible for damage to or call 1-800-348-0751.

  • Page 3: Warnings And Cautions

    G4626pr-0920 5/28/04 1:29 PM Page 3 Warnings and Cautions ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 4: Parts

    G4626pr-0920 5/28/04 1:29 PM Page 4 Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 G4626pr-0920 5/28/04 1:29 PM Page 5 Parts Handlebar 6 Volt Battery Rear Axle Hand Grip - 2 6 Volt Charger Foam Spacer Note: Do not discard the foam spacer packaged with the battery. Save it for use in the vehicle's battery compartment.

  • Page 6: Parts Diagram

    G4626pr-0920 5/28/04 1:29 PM Page 6 Parts Diagram Note: Some parts are assembled on both sides of the vehicle. This illustration shows assembly on right side only. Foam Spacer Rear Wheel Driver - 2 Vehicle Body 6 Volt Charger #10 x 1 "...

  • Page 7: Battery Charging

    G4626pr-0920 5/28/04 1:29 PM Page 7 Battery Charging ELECTRICAL HAZARD About Thermal Fuses Your Power Wheels ® battery is equipped with a built-in thermal fuse. The thermal fuse is a self-resetting safety WARNING device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe.
  • Page 8 G4626pr-0920 5/28/04 1:29 PM Page 8 Battery Charging A-Style Charger Connector A-Style Battery Connector NO GAP • Plug the charger into a standard 120 volt wall outlet. Incorrect Correct Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.

  • Page 9: Assembly

    G4626pr-0920 5/28/04 1:29 PM Page 9 Assembly WARNING Children can be harmed by small parts, Washer sharp edges and sharp points in the Rear Wheel Driver vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 10 G4626pr-0920 5/28/04 1:29 PM Page 10 Assembly Rear Axle Motor Assembly Pins Wheel Long Bushing Cap Nut Rear Axle Assembly Cap Nut Assembly Tool Rear Washer Motor Assembly Rear Wheel Driver Wheel Driver • Position the vehicle body upright. Face the back end of Tube Side .437 Cap Nut the vehicle body.
  • Page 11 G4626pr-0920 5/28/04 1:29 PM Page 11 Assembly Front Tabs Front Tabs Cowling Side Side Tabs Front Axle Tabs Long Bushing Washer Rear Tab Shifter Handle Cap Nut Harness Wires Short Assembly Bushing Tool Channel Wheel Cap Nut Washer Ring Side Tube Side .437 Cap Nut •...
  • Page 12 G4626pr-0920 5/28/04 1:29 PM Page 12 Assembly PRESS HERE Handlebar To Snap Side Tabs Handlebar Neck Lock Nuts Rounded Side • Position the handlebar upright. • Fit the handlebar neck to the underside of the handlebar, • Press firmly on each side of the cowling to snap the with the holes in the handlebar and handlebar neck aligned.
  • Page 13 G4626pr-0920 5/28/04 1:29 PM Page 13 Assembly Lower Handlebar Lock Nut Assembly Steering Column " Screw #10 x Top View Rounded Side Hint: You may want the help of another adult to support the steering column near the steering linkage while assembling "...
  • Page 14 G4626pr-0920 5/28/04 1:29 PM Page 14 Assembly Handlebar Assembly • Insert five #6 x " screws through the top of the handlebar assembly, as shown. • Tighten the screws with a Phillips screwdriver. Do not over-tighten. Hand Grip Handlebar Dash and Rear View •...

  • Page 15: Label Decoration

    G4626pr-0920 5/28/04 1:29 PM Page 15 Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
  • Page 16 G4626pr-0920 5/28/04 1:29 PM Page 16 Label Decoration Left Side...

  • Page 17: Battery Installation

    G4626pr-0920 5/28/04 1:29 PM Page 17 Battery Installation IMPORTANT! Use only a Power Wheels ® 6 volt battery Motor with A-style connector and built-in thermal fuse. Use of Harness any other battery can damage your vehicle. Make sure Connector that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...

  • Page 18: Battery Care And Disposal

    G4626pr-0920 5/28/04 1:29 PM Page 18 Battery Care Battery Care and Disposal and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® battery is a sealed lead-acid acid and place the damaged battery in a plastic bag. See battery.

  • Page 19: Rules For Safe Driving

    G4626pr-0920 5/28/04 1:29 PM Page 19 Rules for Safe Driving RIDING HAZARD 7. Do not allow your child to drive on sloped or inclined WARNING surfaces. Restrict your child’s driving to generally level ground ONLY! 8. Do not allow your child to drive down or across a Prevent Injuries and Deaths steep slope.

  • Page 20: How To Operate Your Vehicle

    G4626pr-0920 5/28/04 1:29 PM Page 20 How to Operate How to Operate Your Vehicle Your Vehicle IMPORTANT! use the vehicle ONLY outdoors. Most TO STOP interior flooring can be damaged by riding this vehicle indoors. Fisher Price ® will not be responsible for damage to the floor if the vehicle is used indoors.

  • Page 21: Problems And Solutions Guide

    G4626pr-0920 5/28/04 1:29 PM Page 21 Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday.
  • Page 22 G4626pr-0920 5/28/04 1:29 PM Page 22 Problems and Solutions Guide Problem Possible Cause Solution Short run time (Less than Undercharged battery Charge the battery. A new battery should have been charged 1 - 3 hours per charge) for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use.

  • Page 23: Statement Of Limited Warranty

    G4626pr-0920 5/28/04 1:29 PM Page 23 Problems and Solutions Guide Problem Possible Cause Solution When the foot pedal is pressed, Loose wire or connector Check all wires around the motors and all connectors the vehicle won’t run without to make sure they are tight. a push “Dead Spot”...
  • Page 24 ©2004 Mattel, Inc. All Rights Reserved. Fisher-Price, Power Wheels, Power Wheels by Fisher-Price and Power Lock are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
