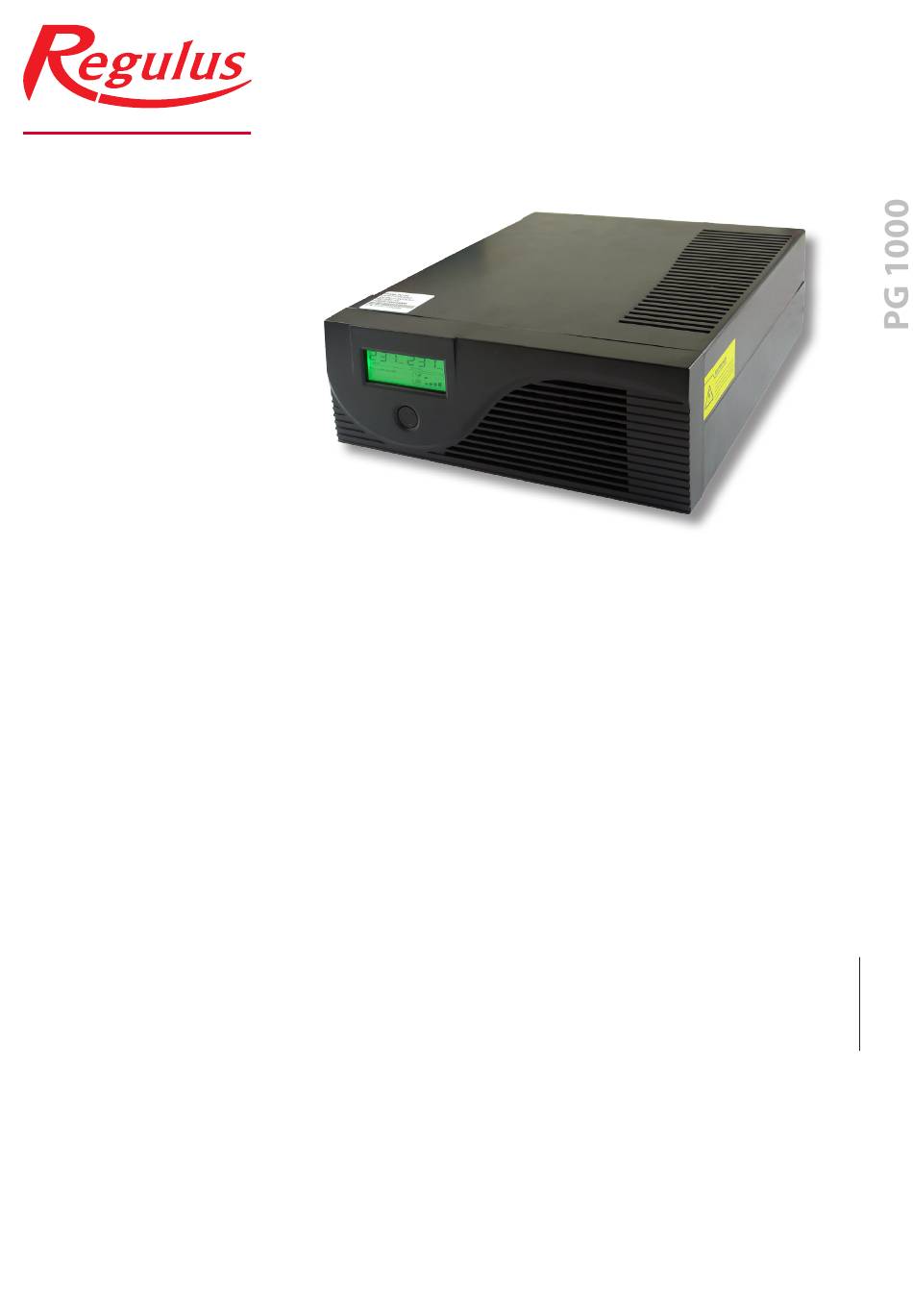

  • Page 1 Installation and Operation Manual PG 1000 Backup Power Supply PG 1000...

  • Page 2: Table Of Contents

    1.2 Front panel .......................... 1.3 Rear panel ........................... 2 Installation ............................2.1 Recommended wiring ......................2.2 Turning PG 1000 on with no grid power ................2.3 Turning PG 1000 off ......................3 Alarm indication ..........................4 Troubleshooting ..........................5 Technical data ...........................

  • Page 3: Safety Information

    The appliance may be installed by authorized staff only! When switching off the electric appliance fed by PG 1000 do not forget to switch off the PG 1000 itself as well. Otherwise the PG 1000’s inverter continues to supply electricity from its battery and does not switch off until the battery voltage drops below the set min.

  • Page 4: Essential Information - Use, Features, Description

    - Do not open the cover of PG 1000 when any of its internal circuits are energized; this may apply even if the power supply at the input terminal is disconnected. In no case any repair on internal parts of PG 1000 may be performed by a user.

  • Page 5: General Description

    BATTERY CONNECTION The battery terminal on PG 1000 is fitted with M6 sized PLUS and MINUS contacts. A battery is to be wired using a pair of cables with lugs at the PG 1000 end, and cable lugs or other terminals at the battery end (depends on the battery model).

  • Page 6: Front Panel

    Avoid applying excess power when tightening bolts at the battery (the recommended torque is 5-7 Nm). The battery might get destroyed when the contacts tear off the lead plate inside the battery. For an improved contact, applying anti-oxidant compound may be useful. REGULUS - Zdroj PG 1000 - www.regulus.cz │...

  • Page 7: Installation

    - from the moment on the battery is being charged. At the same time, the internal cooling fan also starts running. 4. Connect your pump or another load by plugging its cable into the socket of PG 1000. It is necessary to stick to a TN-S system (three-wire system, i.e.
  • Page 8 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - Zdroj PG 1000 - www.regulus.cz │...
  • Page 9 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - Zdroj PG 1000 - www.regulus.cz │...
  • Page 10 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - Zdroj PG 1000 - www.regulus.cz │...
  • Page 11 Fireplace Backup of a fireplace circulation pump with flue thermostat. PG 1000 BACKUP POWER SUPPLY BATTERY MAINS 230 V, 50 Hz PUMP WITH BACKUP FLUE THERMOSTAT REGULUS - Zdroj PG 1000 - www.regulus.cz │...
  • Page 12 PUMP WITH BACKUP STDC, TRS etc. controller STDC, TRS etc. controller Backup of a PWM-controlled pump. BATTERY PG 1000 BACKUP POWER SUPPLY MAINS 230 V, 50 Hz PUMP WITH BACKUP STDC, TRS etc. controller REGULUS - Zdroj PG 1000 - www.regulus.cz │...

  • Page 13: Turning Pg 1000 On With No Grid Power

    ● A mains socket or circuit breaker shall be located close to the appliance and shall be easily accessible. ● Never disconnect the 230 V power supply to PG 1000 when it is running - the earth protection of both PG 1000 and the load connected would be interrupted.

  • Page 14: Troubleshooting

    ● Power source defect Power supply is present but ● Power cord is not plugged either into Plug the power cord into PG 1000 and into PG 1000 works in the battery PG 1000 or into an electrical socket. a working electrical socket mode ●...

  • Page 15: Technical Data

    260 / 224 / 80 Mechanical properties Weight (kg) Operating environment 0~40 °C, 0~90%rel. humidity (noncondensing) Ambient conditions Noise level < 45 dB 1 m long battery cables are included in the supply. REGULUS - Zdroj PG 1000 - www.regulus.cz │...
  • Page 16 ©2018 We reserve the right to errors, changes and improvements without prior notice.. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
