Summary of Contents for Regulus PG 600 SX

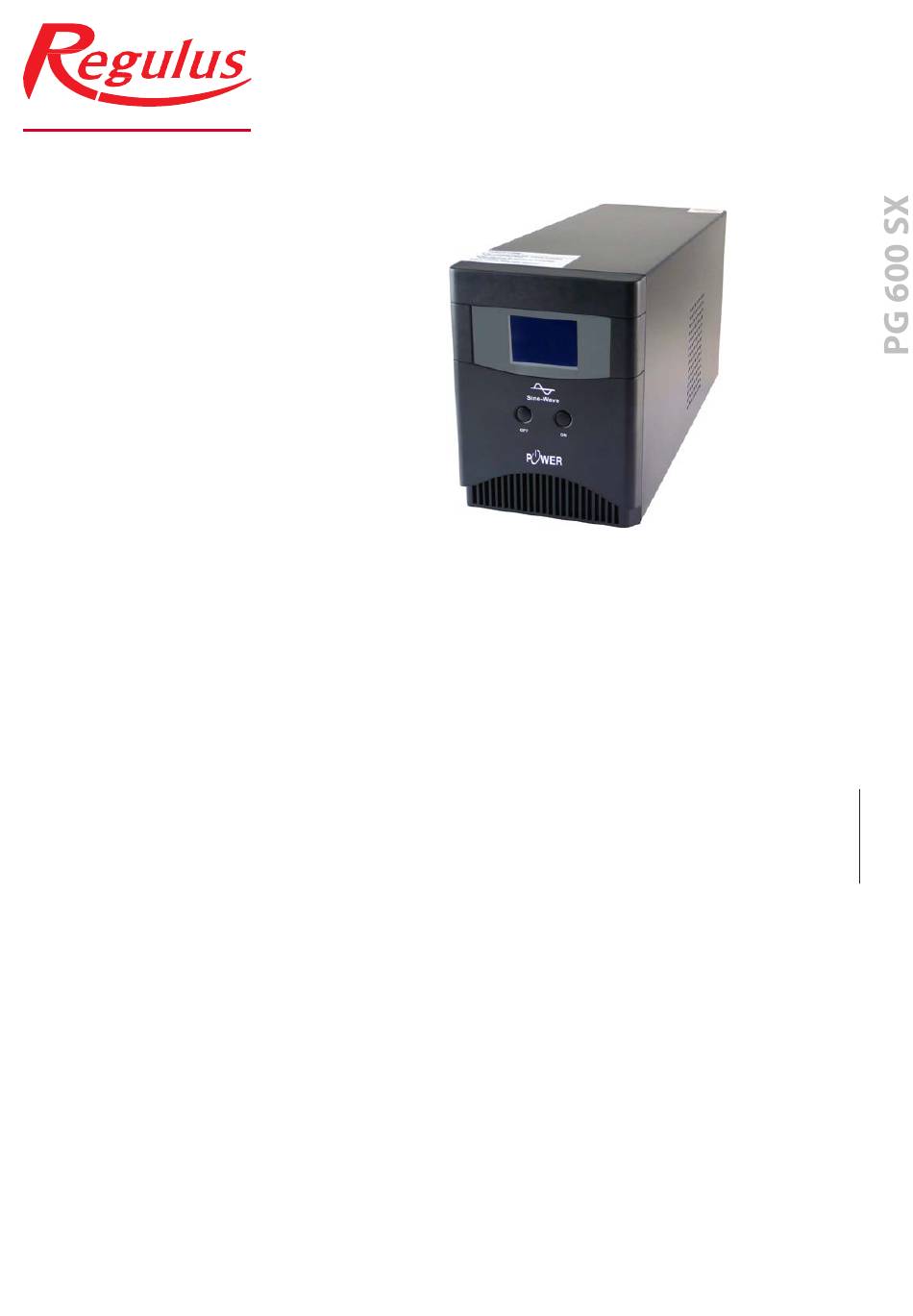

- Page 1 Installation and Operation Manual PG 600 SX Backup Power Supply PG 600 SX...
-
Page 2: Table Of Contents
Acoustic signals ..........................6 Installation ............................7 Recommended wiring ........................7 Turning PG 600 SX on with no grid power..................8 Turning PG 600 SX off ........................8 Operating states of PG 600 SX ......................9 Troubleshooting ..........................9 Technical specifications ......................... -
Page 3: Safety Information
The appliance may be installed by authorized staff only! When switching off the electric appliance fed by PG 600 SX do not forget to switch off the PG 600 SX itself as well. Otherwise the PG 600 SX’s inverter continues to supply electricity from its batteries and does not switch off until the battery voltage drops below the set min. - Page 4 At the same time, it is recommended to charge it every 3 months. Older batteries shall be checked more frequently. Should the UPS be disconnected from the mains for a longer time, it is unconditionally necessary to disconnect also the battery from the UPS. REGULUS - PG 600 SX - www.rgulus.eu │...
-
Page 5: Essential Information - Use, Features, Description
Do not expose the appliance to high temperatures. Do not open the cover of PG 600 SX when any of its internal circuits are energized; this may apply even if the power supply at the input terminal is disconnected. In no case any repair on internal parts of PG 600 SX may be performed by a user. -
Page 6: Front Panel
Grid power present Input voltage from grid (approx. value) Output PG 600 SX output connected to power grid PG 600 SX output runs from battery, inverter working Output voltage Battery condition in % PG 600 SX works within boundary values... -
Page 7: Installation
Mind the right polarity! Plug the power supply cord of PG 600 SX into the a wall socket. WARNING – PG 600 SX will start running and from the moment on the batteries are being charged. At the same time, the internal cooling fan also starts running. -
Page 8: Turning Pg 600 Sx On With No Grid Power
PG 600 SX can be turned off by pressing and holding the OFF push button for at least 3 sec. WARNING! The battery is not being charged any more. In case of a power failure PG 600 SX will not provide any backup but it will switch on by itself as soon as the power supply is restored. -
Page 9: Operating States Of Pg 600 Sx
The alarm symbol is shown and PG 600 SX makes a sound. When overloaded, PG 600 SX will disconnect the output and make a continuous sound. Until the load is disconnected and PG 600 SX turned off and on again, it will not fulfil its backup function. -
Page 10: Technical Specifications
For conditions not described in this Manual, turn off PG 600 SX, disconnect the load, pull out the power cable from the el. socket and disconnect the battery terminals. Then contact your service provider. TECHNICAL SPECIFICATIONS Technical data Backup power supply...
