Razor E1 Series Installation Instructions

On/off switch changing

Advertisement

Quick Links

Tools Required:
A. Phillips screwdriver
B. Flat head screwdriver
C. 4mm Allen wrench
D. 8mm open wrench
Parts Included:
A. On/off switch
B. 2 - 4mm Allen bolts
CAUTION: To avoid potential shock or other injury, turn power switch OFF and discon-
nect charger before removing or installing the batteries. Failure to follow these steps in the
correct order may cause irreparable damage.
Step 1
Using a Phillips head screwdriver, remove the four
screws in the front of the deck. Using a Phillips
head screwdriver and 8mm open wrench, remove
the two screws and locknuts in the back of the
deck. Using a 4mm Allen wrench remove the two
hex bolts. Remove deck plate. Keep screws.
Note: If you are having difficulty removing the
screws, use pliers to twist the screw out from the
bottom.
Phillips head screwdriver on top,
8mm open wrench on bottom
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
(
)
Not included
(
)
Figure A
Phillips head screwdriver
4mm Allen wrench
Figure 1

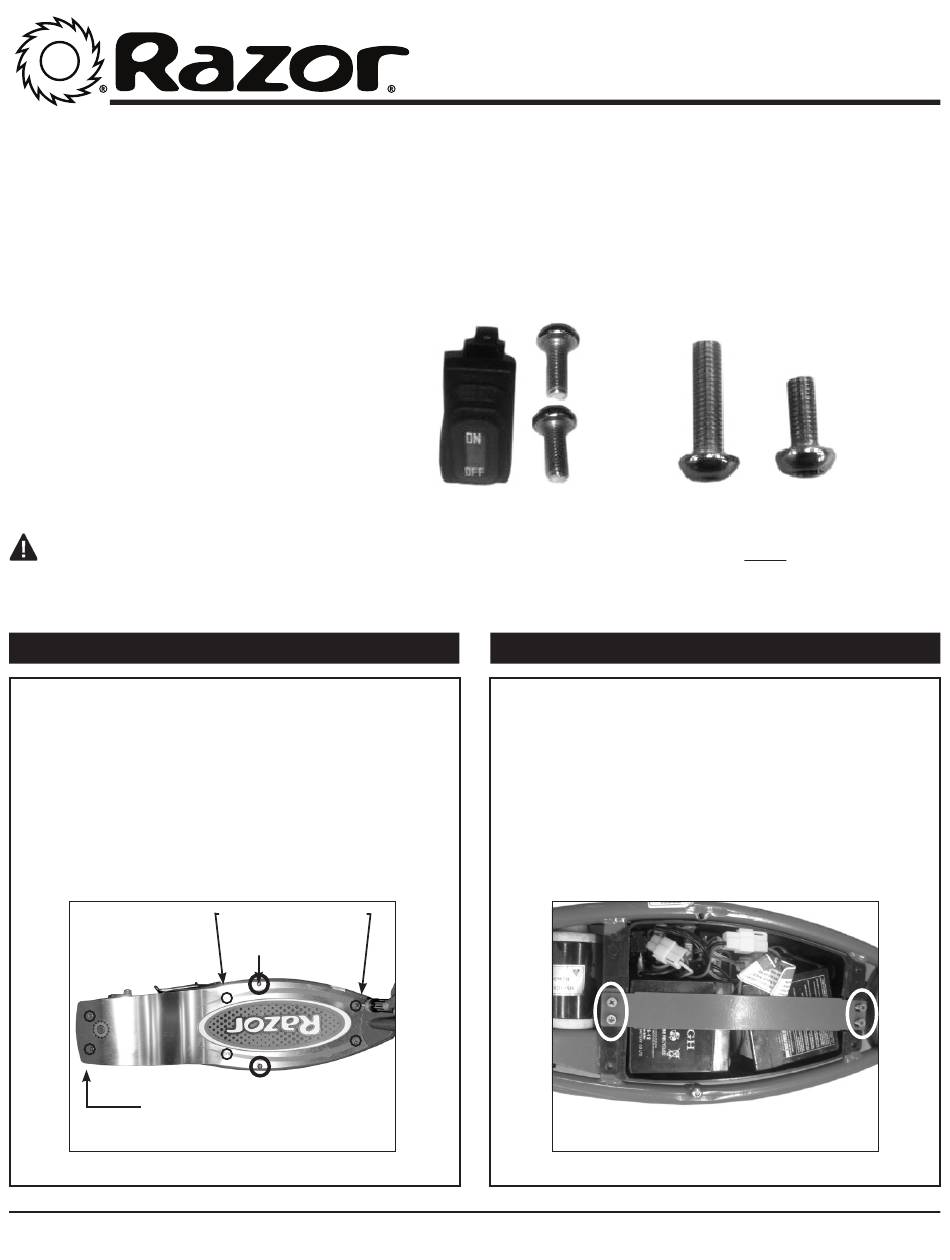

INSTALLATION INSTRUCTIONS

Note:
For versions E100/E125 v1-40, E150 v1-26,
E175 v19-33) Please use the two shorter 4mm Allen Bolts
provided with the new On/Off Switch if the existing 4mm
Allen Bolts on the deck plate are longer then the 4mm
Allen Bolts included with the new On/Off Switch. Refer to
"Figure B" and Step 1 "Figure 1".
Figure A
Step 2
Using Phillips head screwdriver, remove the
screws on the battery bracket and remove
bracket.
E1XX SERIES ON/OFF SWITCH
old bolt
Figure B
Figure 2
new bolt
1
