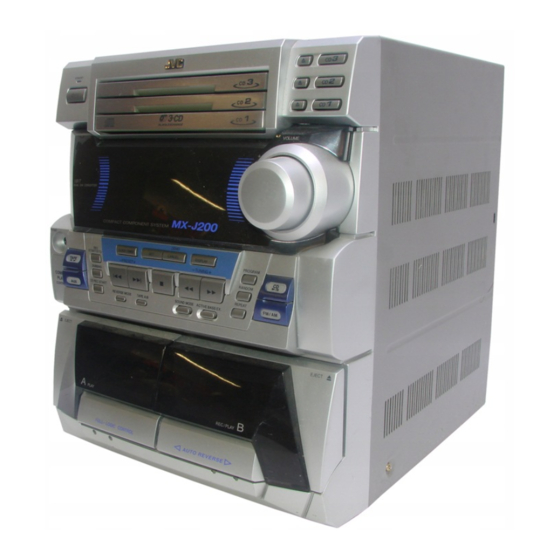

JVC MX-J200 Block Diagram

Hide thumbs

Advertisement

MX-200/J206

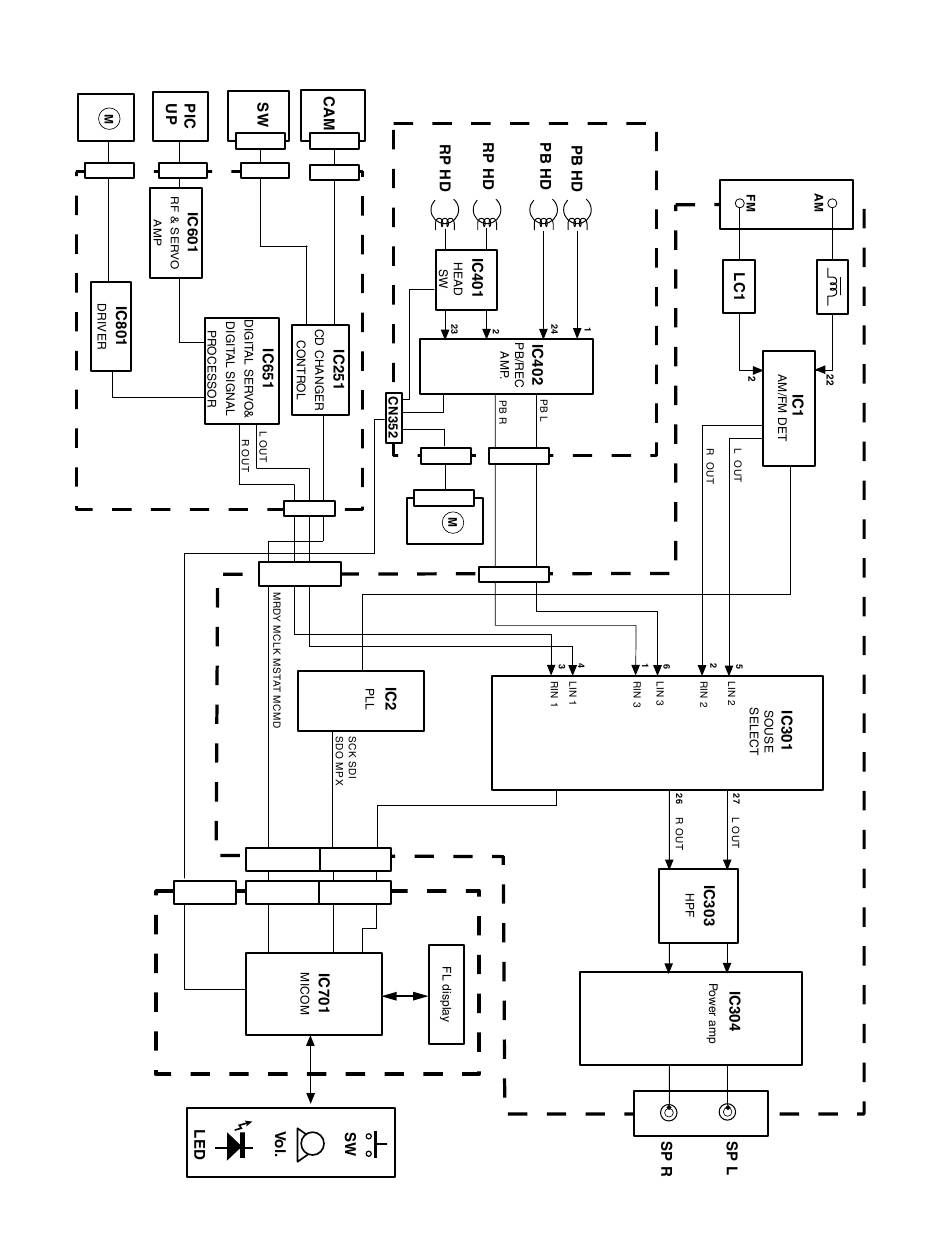

Block diagram
CN805
CN804
CN601
CN854
CN801
CN855
CN353
CN351
FFC-13P
CN651
CN303
CN301
VCK VDATA
CN304
CN305
CN704
CN702
CN701
2-1

Advertisement

loading

  Also See for JVC MX-J200

  Related Manuals for JVC MX-J200

  Summary of Contents for JVC MX-J200

  • Page 1 MX-200/J206 Block diagram CN805 CN804 CN601 CN854 CN801 CN855 CN353 CN351 FFC-13P CN651 CN303 CN301 VCK VDATA CN304 CN305 CN704 CN702 CN701...
  • Page 2: Standard Schematic Diagrams

    MX-J200/J206 Standard schematic diagrams Power Transformer section J/C Version 120V 60Hz R951 3.3M 1/2W T951 AC-PLUG F952 F951 1.6A 250V 2A 250V EI-66 Parts are safety assurance parts. When replacing those parts make sure to use the specified. SHEET 1/5...
  • Page 3 MX-J200/J206 Main section J301 AUX-L L301 R101 R102 6.8K R315 2.2K C102 50V1 D303 1SS133 Q102 SP-L + C301 1000P C202 50V1 2SC2785 R202 6.8K R314 470K R116 R307 RY301 SP-L - AUX-R R201 R112 6.8K C203 50V1 C315 50V1...
  • Page 4 MX-J200/J206 Control section FL701 Q701 Q702 Q703 KTC3199 KTC3199 KTC3199 BASS R.D.S NEWS INFO S. MODE 1 CD MONO SLEEP W1005 PRGM RANDOM REPEAT DAILY -35V SW PWB (3) S1007 SW101 TUCE S1008 SW PWB (4) VDATA Q709 DTA114ES DTA114ES...
  • Page 5 MX-J200/J206 Cassette amplifier section R352 REC-REV HEAD SW Q502 HALF-SW 2SD2144S HALF SW REC-FWD C504 0.018-M R502 6.8K C519 HEAD SW R501 100K C511 FFC-13P 25V10 R507 C9101 220P C503 TXL-P03H-A1 PB-HD WK354 CN354 R513 C515 25V4.7 CN353 C9102 FFC-13P...
  • Page 6 MX-J200/J206 CD Servo & CD Mechanism control section CD CHANGER CONTROL RF & SERVO AMP. DIGITAL SERVO & DIGITAL SIGNAL PROCESSER CD signal SHEET 5/5...
  • Page 7: Printed Circuit Boards

    MX-J200/J206 Printed circuit boards Main board...
  • Page 8 MX-J200/J206 Control board...
  • Page 9 MX-J200/J206 Cassette amplifier board...
  • Page 10 MX-J200/J206 CD servo control board CD Tray section switch board Cam switch board 2-10...
  • Page 11: Parts List

    MX-J200/J206 PARTS LIST [ MX-J200/J206 ] * All printed circuit boards and its assemblies are not available as service parts. MX-J200 MX-J206 Area suffix Area suffix J ----------------------------- U.S.A. C -------------------------- Canada C -------------------------- Canada - Contents - Exploded view of general assembly and parts list...
  • Page 12 MX-J200/J206...
  • Page 13: Exploded View Of General Assembly And Parts List

    MX-J200/J206 Exploded view of general assembly and parts list Block No. For spring protect...
  • Page 14 MX-J200/J206 Parts list (General assembly) Parts list (General assembly) Block No. M1MM Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area --------------- MAIN BOARD --------------- CASSETTE AMPLIFIER BOARD GJ342020150913 JACK SPK 4PINS...
  • Page 15 MX-J200/J206 (General assembly) Parts list Block No. M1MM Item Parts number Parts name Q'ty Description Area GJ711001600100 SPRING CASS DOOR L GJ711001610100 SPRING CASS DOOR R GJ751000030101 DAMPER GEAR GJ460400210101 DOOR CASS L GJ460400220101 DOOR CASS R GJ460400230101 LENS CASS R...
  • Page 16: Cd Mechanism Assembly And Parts List

    MX-J200/J206 CD mechanism assembly and parts list Block No. Grease Point FG-87HS (Grease to apply have to be a little for the exchange.) FG-87HS FG-87HS FG-87HS EXL-M7TMB EXL-M7MB Parts list ( CD mechanism ) Block No. M2MM Parts number Parts name...
  • Page 17: Cd Changer Mechanism Assembly And Parts List

    MX-J200/J206 CD changer mechanism assembly and parts list Block No. VC3-21M...
  • Page 18: Parts List (Cd Changer Mechanism)

    MX-J200/J206 (CD changer mechanism) Parts list Block No. M3MM Item Parts number Parts name Q'ty Description Area VKS1144-003 CHASSIS VKS3698-003 TRAY GUIDE VKS5532-003 PULLEY GEAR VKB3000-164 BELT VKS5505-003 GEAR B VKS5506-002 GEAR C VKS5507-002 CROSS GEAR U VKS5508-002 CROSS GEAR L...
  • Page 19 MX-J200/J206 (CD changer mechanism) Parts list Block No. M3MM Item Parts number Parts name Q'ty Description Area --------------- CD MECHA QGB2012J1-10 CONNECTOR VKW5187-001 VYSA1R2-033 SPACER FOR EWS176-008 LE30611-001A C.B HOLDER FOR CD CB QYSBSF3008Z SCREW FOR HOLDER QUQ610-1509AJ CARD WIRE...
  • Page 20: Cassette Mechanism Assembly And Parts List

    MX-J200/J206 Cassette mechanism assembly and parts list Block No. Unit number : CMAT5Z212A Parts list ( Cassette mechanism ) Block No. M4MM Parts name Q'ty Item Parts number Area Description 03-1 F513-852 PLATE HD BLK PLATE HD BLK 03-2 F513-855...
  • Page 21: Electrical Parts List

    MX-J200/J206 Electrical parts list Block No. 01 Electrical parts list (Main board) Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area GJ116230621 A.CAPACITOR 16V Y M 0.01UF C 112 GJ283115622432 CAPACITOR 100V K 0.0056UF GJ116222821 A.CAPACITOR...
  • Page 22 MX-J200/J206 (Main board) Block No. 01 Electrical parts list Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area C 322 GJ270141060310 E.CAPACITOR 25V VX M 10UF D 305 1SS133T-77 DIODE GJ871999133 C 323 GJ116230621 A.CAPACITOR 16V Y M 0.01UF...
  • Page 23 MX-J200/J206 (Main board) Block No. 01 Electrical parts list Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area Q 204 2SA1175TP-F TRANSISTOT GJ872910154 R 64 GJ250084732103 CARBON RESISTOR 1/6W J 47K Q 205 2SD2144S/VW/-T TRANSISTOR...
  • Page 24 MX-J200/J206 (Main board) Block No. 01 Electrical parts list Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area R 218 GJ250084722103 CARBON RESISTOR 1/6W J 4.7K R 341 GJ250082212103 CARBON RESISTOR 1/6W J 220 R 219...
  • Page 25 MX-J200/J206 (Display board) Block No. 02 Electrical parts list Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area C 701 GJ116415921 C.CAPACITOR 0.1MF F Z 50V R 714 GJ250081022103 CARBON RESISTOR 1/6W J 1K C 702 GJ112689891 E.CAPACITOR...
  • Page 26 MX-J200/J206 Block No. 02 (Multi-control board) Block No. 03 Electrical parts list (Display board) Electrical parts list Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area R 788 GJ250081022103 CARBON RESISTOR 1/6W J 1K CN101...
  • Page 27 MX-J200/J206 (Power switch board) Block No. 04 Electrical parts list Item Remarks Parts number Parts name Area LED11 GJ374301012101 R1006 GJ250086812103 CARBON RESISTOR 1/6W J 680 S1001 GJ390110181120 TACT SWITCH POWER W1002 GJ353030140107 CABLE FLAT 3PINS (Eject switch board) Block No. 05...
  • Page 28 MX-J200/J206 Block No. 08 Electrical parts list (Cassette amplifier board) Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area C 351 GJ270192250310 E.CAPACITOR 50V VX M 2.2UF FW352 GJ353160230110 CABLE 16PINS C 352 GJ270121070310 E.CAPACITOR...
  • Page 29 MX-J200/J206 Block No. 08 Electrical parts list (Cassette amplifier board) Item Remarks Parts number Parts name Area R 408 GJ250083322103 CARBON RESISTOR 1/6W J 3.3K R 409 GJ250081842103 CARBON RESISTOR 1/6W J 180K R 410 GJ250081222103 CARBON RESISTOR 1/6W J 1.2K...
  • Page 30 MX-J200/J206 Block No. 10 Electrical parts list (CD servo board) Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area C 251 NCS21HJ-100X C CAPACITOR CN651 QGF1016F1-19 CONNECTOR MAIN C 252 NCS21HJ-100X C CAPACITOR CN652 QGF1016F1-05...
  • Page 31 MX-J200/J206 Block No. 10 Electrical parts list (CD servo board) Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area R 612 NRSA02J-125X MG RESISTOR R 863 NRSA02J-102X MG RESISTOR R 631 NRSA02J-2R2X MG RESISTOR R 864...
  • Page 32: Packing Materials And Accessories Parts List

    MX-J200/J206 Packing materials and accessories parts list Block No. Block No. 3-22...
  • Page 33: Parts List (Accessories)

    MX-J200/J206 (Packing) Parts list Block No. M5MM Item Parts number Parts name Q'ty Description Area GJ560450130101 CARTON J200J/C GJ560450160101 CARTON J206C GJ560400120101 POLYFOAM RIGHT GJ560400110101 POLYFOAM LEFT GJ560400160101 POLYFOAM BOTTOM GJ560400150101 POLYFOAM TOP GJ740082550400 POLYBAG REMOTE CONTROL GJ740666420300 POLYBAG GJ740362550000...
