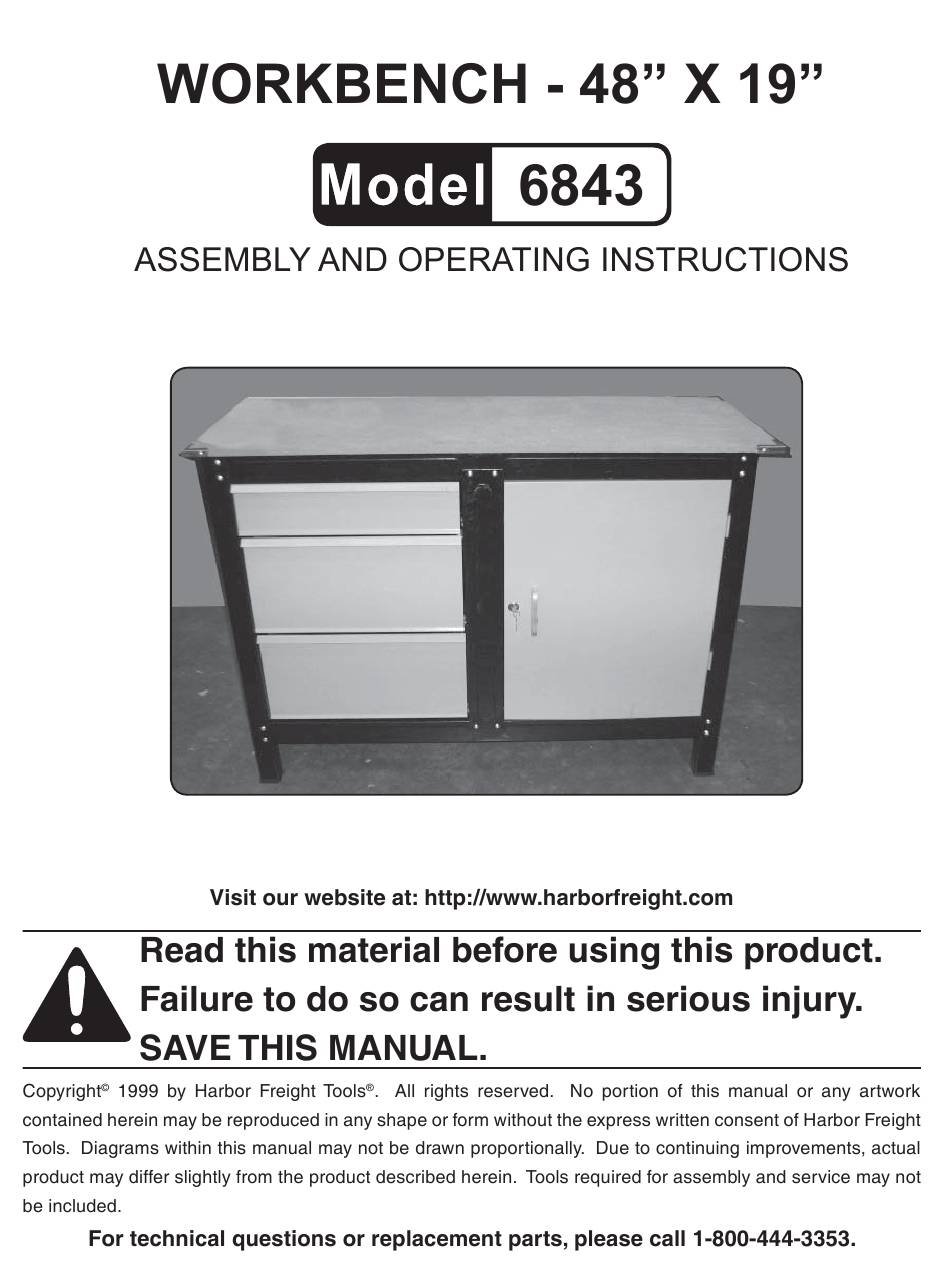

- Page 2 Page 2 SKU 6843...
- Page 3 Unpack and Check Contents When unpacking your Workbench- 48” x 19”, check to make sure the parts listed below are included. If any parts are missing or broken, please call HARBOR FREIGHT TOOLS at 1-800-444-3353. PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY.
- Page 4 Line up the holes and attach the Panels to the Long Frames at the bottom with Nuts and Bolts (3). Line up the holes in the top of the Panels with the Long Frames and secure with Nuts and Bolts (3) See Figure 2, and Photo 2. Photo 1D Photo 2 Figure 2 Page 4 SKU 6843...
- Page 5 Photo 5C. Attach the Front Panel (11 and 16) to the Bottom Panel (15) and to the Side Panels (12 and 17) with Drawer Nuts and Bolts (14). Once Drawers are assembled, insert Drawer Slides (26) into Drawer Rails (5) and insert drawers into Work Bench. 12 17 13 18 Photo 5A Photo 5B Photo 5C SKU 6843 Page 5...
- Page 6 Insert Bolt (3) through each hole and secure with the Nut from the inside of the Workbench. Photo 7A. Tighten bolts left loose in STEP 2. Your Workbench is now complete as shown in Photo 7B back and Photo 7C front. Photo 7A Photo 7B Photo 7C Page 6 SKU 6843...
- Page 7 Parts List for Workbench Item 6843 art # Description Quantity Right & Left Side Panel Long Frame Large Bolt & Nut Center Frame Drawer Rail Actual Size Parts Shelf Door with Lock Door Pin Door Handle Keys Front Panel, Small Drawer...
- Page 8 Page 8 SKU 6843...
