Mira Connect™ 10 In-Wall Backbox Installation Instructions
Aveo Systems® Mira Connect™
Mira Connect 10 is an award-winning smart control system for conference rooms, meeting spaces, huddle rooms, and
other spaces that can be wall-mounted or used on a tabletop. Mira Connect 10 makes it easy for users to manage audio
and video sources, dial audio and video conference calls, and control the displays, projectors, video switchers, DSP audio
systems, and other equipment in their rooms.
The in-wall backbox makes it easy to install Mira Connect 10 into a wall, nearly flush with the surface.

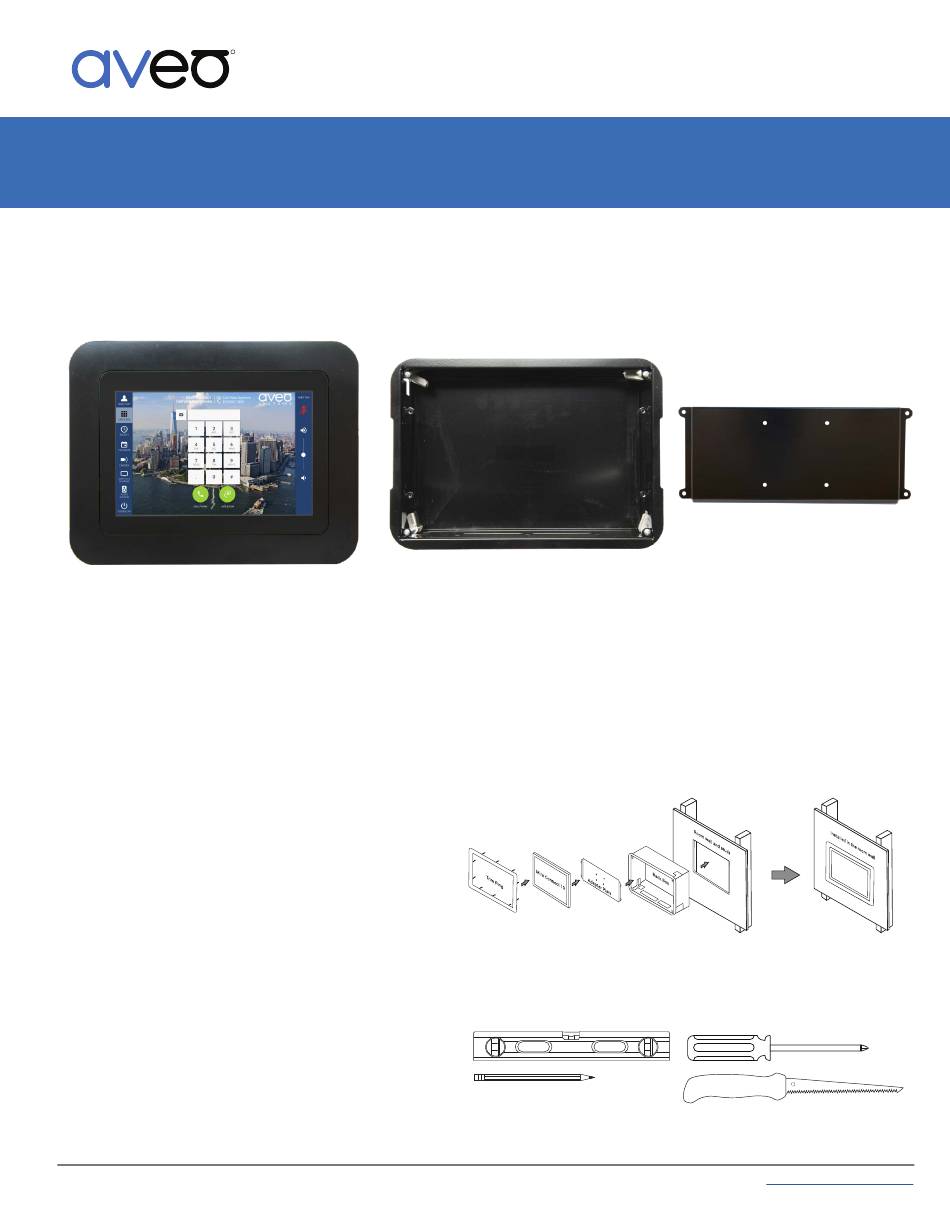

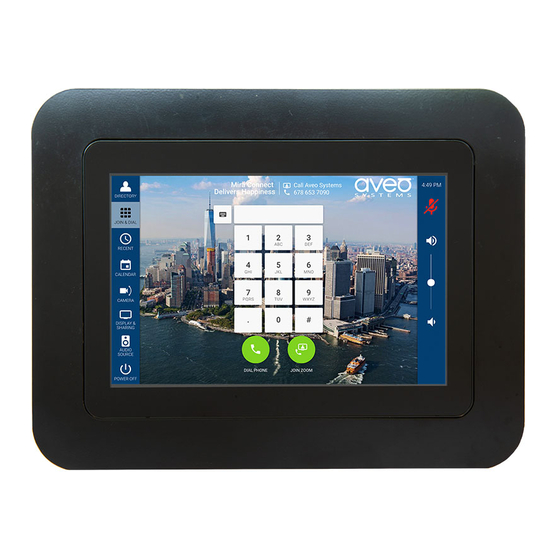

Shown with touch screen
Designed for the Mira Connect 10, the in-wall backbox easily mounts into new or existing installations. The ultra-low
profile design extends only 2.5mm from the wall. The gloss black color looks professional in any environment. The
backbox Installs easily with one drywall cut, and rotating mounting clips secure the system to drywall with ease.
The removable trim ring allows access to the enclosed touch screen, yet remains firmly in place with snap fasteners. With
the trim ring in place, the touch screen is fully usable while access to the Ethernet cable is hidden. The trim ring may be
painted to match interior paint colors.

Technical Specifications

Part Number
• 105.2004.001

Package Includes

• Mira Connect™ 10 In-wall backbox,
adapter tray, trim ring, and mounting screws
• Does not include Mira Connect 10 touch screen.
Order separately: SKU 100.2100.001

Physical Characteristics

• Gloss black metal
• Cut-out dimensions: 300 x 207 mm, 11 3/4 x 8 1/8 in.
• In-wall depth: 76.2 mm, 3 in.
• Outer trim ring: 33 mm, 1.3 in. border width on sides
25 mm, 1 in. on top and bottom,
extends 2.5 mm, 0.1 in. depth from front of wall
• Weight: 1.8 kg, 3.9 lbs. (without touch screen)
