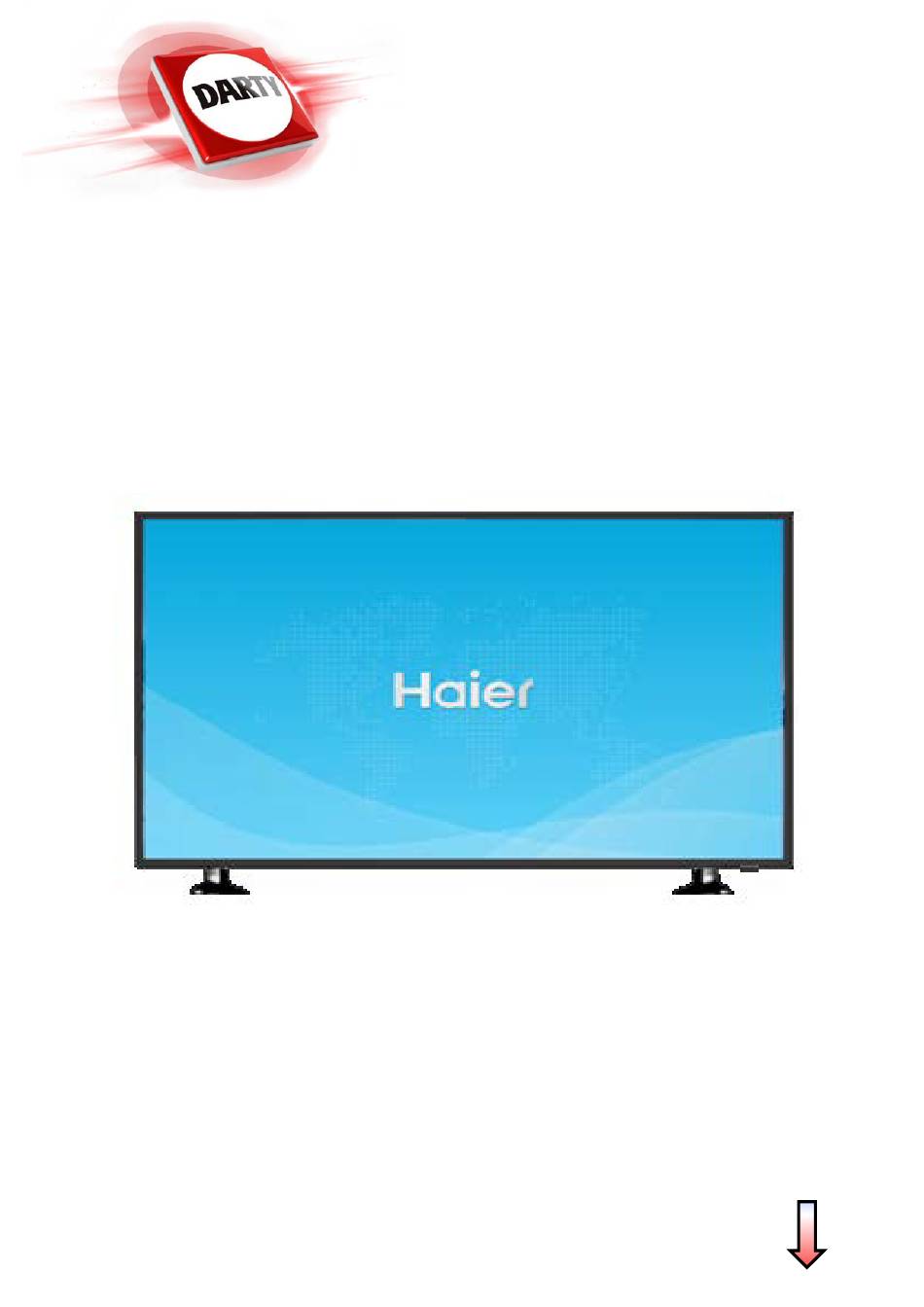

- Page 1 MARQUE HAIER LE75B9300U 4K UHD REFERENCE 4293150 CODIC PROVISOIREMENT EN ANGLAIS NOTICE...
- Page 2 LE75B9300U Please read this manual carefully before operating the unit,and keep it for future reference.
-
Page 3: Table Of Contents
Caution Main Features Main Parameter Installation Base Stand Assembly Instruction Wall Mounting Installation Guidelines Front Control Panel Rear/Side Sockets Connecting to your Haier TV Common Interface 03 Remote Control Remote Control Teletext 04 Operation Installation Guide Picture menu Sound menu... -
Page 4: Safety Warnings
01 Safety warnings Thanks for buying this 75" LED LCD TV.This guide will help you set up and begin using your TV. 75" UHD Digital LED LCD TV Remote control AAA battery x2 Instruction Manual Warranty Card Screws Stand AV adaptor cable YPbPr adaptor cable Now you can get started! IMPORTANT INFORMATION... -
Page 5: Safety Notice
Safety notice CAUTION:When the apparatus was in electrostatic circumstance, it maybe malfunction and need to reset by user. EN-3... -
Page 6: Warning And Cautions
WARNING AND CAUTIONS Warning Caution High voltages are used in the operation of this Do not trap the power supply cord under the television receiver. Do not remove the cabinet television receiver. back from your set. Refer servicing to quali ed service personnel. -
Page 7: Introduction
Introduction 02 Introdution CAUTION INSTALLATION Never tamper with any components inside the *Locate the TV in the room where light does TV, or any other adjustment controls not not strike the screen directly. described in this manual. All LED-TV's are high *Total darkness or a r tion on the picture voltage electrical equipment. -
Page 8: Base Stand Assembly Instruction
Introduction Base Stand Assembly Instruction (blanket, foam, cloth, etc.) to prevent any damage to the TV. Position the TV stand with the curved bracket facing the front of the TV. Pls ensure that the legs of the TV stand are pointed outward with and with the longer leg pointed toward the front of the TV. -
Page 9: Wall Mounting Installation Guidelines
Introduction INSTALLATION NOTES Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the TV and the wall to permit ventilation. Please do not attempt to rotate the TV on the stand. -
Page 10: Front Control Panel
Introduction Front control panel POWER ≤8m SOURCE Displa y the input source menu. MENU Display main MENU. VOL+/VOL- Adjust sound level. In MENU,adjust the item that you selected. In TV mode,press CH+ or CH- to change CH+/CH- the channel up and down. In MENU, press CH+ or CH- to select items . -
Page 11: Connecting To Your Haier Tv
Introduction Connecting to your Haier TV OPTICAL OUT RJ45 Audio/Video machine Amplifier with HDMI interfaces Green (Y) Blue (Pb/Cb) W White(AUDIO-L ) Red (AUDIO-R, Pr/Cr ) Y Yellow (VIDEO) CI CARD HDMI3 Mini AV Mini YPbPr CVBS, DVD Player or other CVBS, DVD Player or other machine with YPbPr/YCbCr. - Page 12 Introduction Connecting to your Haier TV Note1:Only *.jpg , *.mp3 , *.txt , *.avi ,*.mp4 , files will work, other file types are not guaranteed and may not. Connecting a DVD player / Satellite / cable set top box receiver / games console / PC or Note 2.
-
Page 13: Common Interface
Introduction COMMON INTERFACE The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. -
Page 14: Remote Control
Remote Control 03 Remote Control SCREEN Press to change picture aspect ratio. Press to open the on-screen menu.In teletext mode,press to open the INDEX page. Press to navigate the on-screen menu. Press to c m a selection. Press to return to the previous screen.In teletext mode,press to enter mix mode. -
Page 15: Teletext
Remote Control TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain : This is used to call or exit teletext modes. -
Page 16: Operation
Operation 04 OPERATION First Time Installation please according to the Text Tip to First Time Setup. Home: Press H button to enter the HOME menu. ▼ ▲ Press button to select sources and application Press to select . Remarque: Définissez le mot de passe initial de votre téléviseur. -
Page 17: Picture Menu
Operation Picture Colour Temp Adjust the overall color of the image. Press MENU to enter the main menu press ▼ ▲ Press to select Colour Temperature press to select picture menu to select. ptional :Cool, Normal , Warm). Cool Produces a gentle blue-hued image. Normal Produces a vivid image. -
Page 18: Network Menu
Operation Network Configuration ▼ ▲ Press to select: Sound Mode/Treble/Bass/Balance /Auto Select Wifi or Cable network. Volume Le vel/Surround/ Digital Output/Audio Description/AD Volume Press button to select Network Configuration, Press to select or adjust. then press b utton to confirm. Sound Mode ▼... -
Page 19: Channel Menu
Operation HDMI CEC HDMI PORT SETTING Note:when you choose HDMI 2.0 full, this HDMI can receive 2160p @60Hz 4:4:4; when you choose HDMI 2.0 light ,this HDMI can receive 2160p@60Hz 4:2:0 and Language the below. Press button to select Language. Press to select the display language. - Page 20 Operation Analogue Manual Tuning Auto Tuning Channel list Digital Manual Tuning On Time Off Time Sleep Timer Signal Information Channel List ▼ ▲ button to select Press Sleep Timer, Press to select. 10min 20min 30min 60min,90min,120min,180min ,24 0min ). ptional off, OSD Timer ▼...
-
Page 21: Music
Operation Channel Lock Parental Guidance Some program may not be suitable for children, through Parental Guidance set-up ,parents can shield unsuitable show automatically. Press button to select Parental Guidance. on to select Off, 4, 5 , 6,7 .. . 18 .(Age of children) Press butt Note: use the function must enter a four-digitpassword. - Page 22 EN-20...
- Page 23 EN-21...
- Page 24 EN-22...
-
Page 25: Specification
Specification Specification 75" HD Digital LED LCD TV ntegrated digital. Television picture quality: Screen Size: 190.5 cm Resolution 3840 x 2160 Pixels. DVB-T/T2, DVB-C DTV Tuner Decorder 16/32/64/128/256 QAM Modulation/QPSK Modulation MPEG2,MPEG4,H.265 3 HDMI sockets. 1 RJ45 s ocket. RF input socket. Component video socket.
