2.1.5

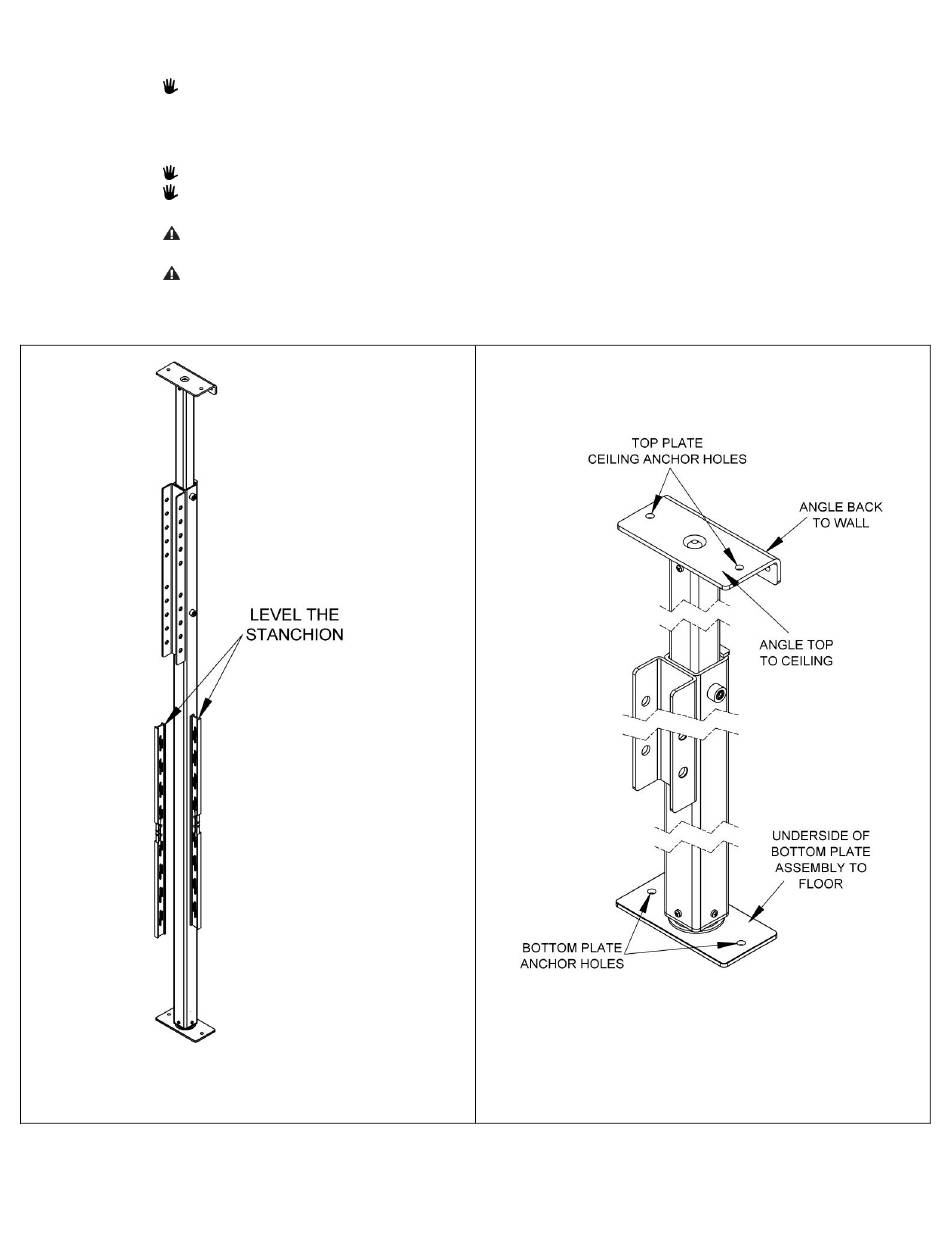

Using a 3' or 4' level, or equivalent, ensure Stanchion is level and plumb (FIG. 2.3).
2.1.6
Once Stanchion is level and plumb, anchor the Bottom Plate.
The Bottom Plate is anchored at 2 anchor points (FIG. 2.4).
2.1.7
Anchor Top Plate with two of the four anchor holes provided (FIG. 2.4).
2.1.7.1
2.1.7.2
When anchoring to the wall, you will only be able to rotate the Stanchion 180-degrees.
When mounting to a wall observe and avoid obstructions such as trim, base heat registers,
pictures, etc.
An improperly anchored ORBIT can be an extreme hazard. The installer must decide which
anchoring hardware and method is best for your circumstances.
Professional installation by a contractor is recommended.
2.1.8
Once floor and ceiling and or wall mounting is complete, torque all 4 Stanchion Set Screws (FIG 2.1)
to 25 ft./lbs.
FIG. 2.3
Page | 6
When anchoring to the ceiling, use the two ceiling anchor holes on top of the Top Plate.
When anchoring to a wall, use the two wall anchor holes.
FIG. 2.4
