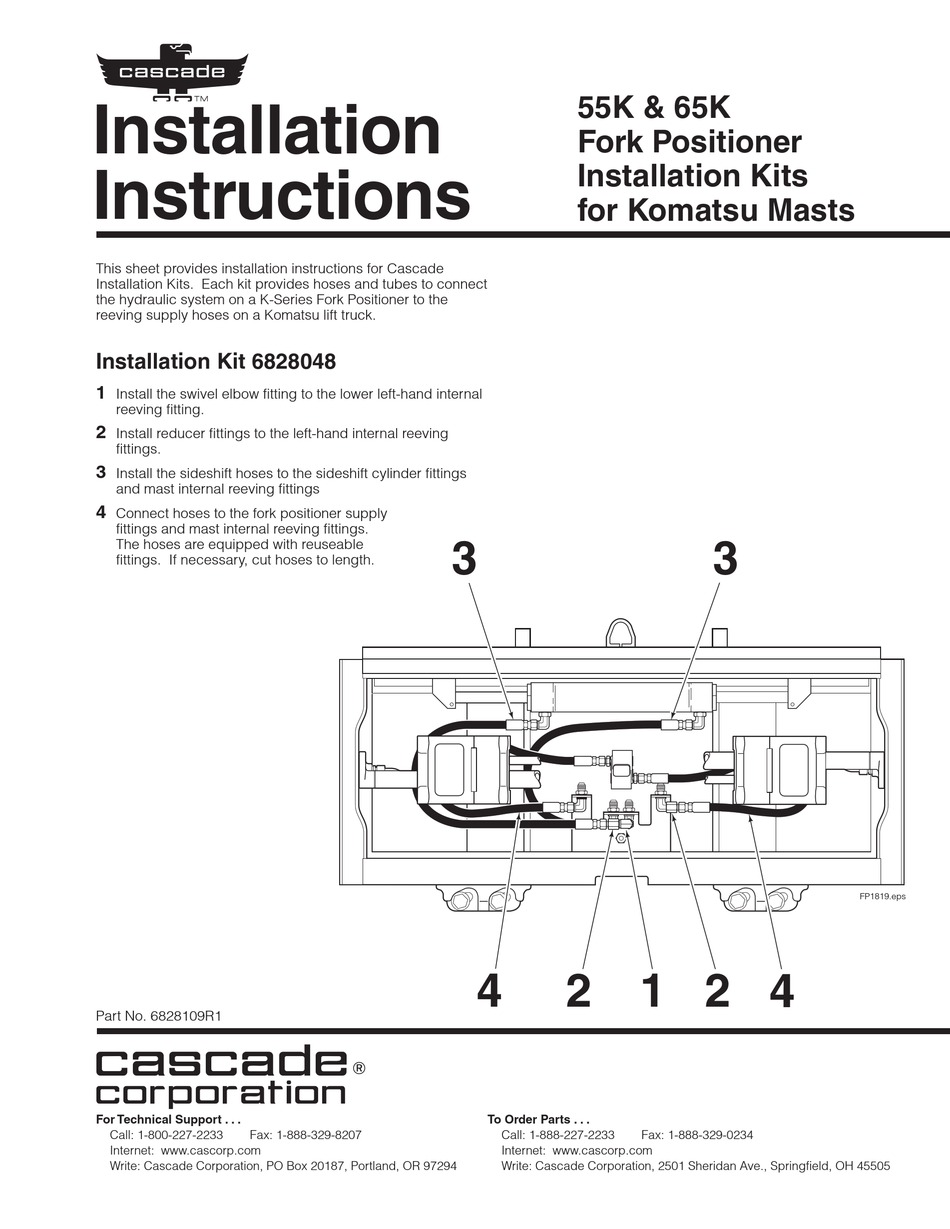

Installation
Instructions
This sheet provides installation instructions for Cascade
Installation Kits. Each kit provides hoses and tubes to connect
the hydraulic system on a K-Series Fork Positioner to the
reeving supply hoses on a Komatsu lift truck.
Installation Kit 6828048
1
Install the swivel elbow fitting to the lower left-hand internal
reeving fitting.
2
Install reducer fittings to the left-hand internal reeving
fittings.
3
Install the sideshift hoses to the sideshift cylinder fittings
and mast internal reeving fittings
4
Connect hoses to the fork positioner supply
fittings and mast internal reeving fittings.
The hoses are equipped with reuseable
fittings. If necessary, cut hoses to length.
Part No. 6828109R1
cascade
corporation
For Technical Support . . .
Call: 1-800-227-2233
Fax: 1-888-329-8207
Internet: www.cascorp.com
Write: Cascade Corporation, PO Box 20187, Portland, OR 97294
3
4
To Order Parts . . .
Call: 1-888-227-2233
Internet: www.cascorp.com
Write: Cascade Corporation, 2501 Sheridan Ave., Springfield, OH 45505
55K & 65K
Fork Positioner
Installation Kits
for Komatsu Masts
3
2
1 2
Fax: 1-888-329-0234
FP1819.eps
4
