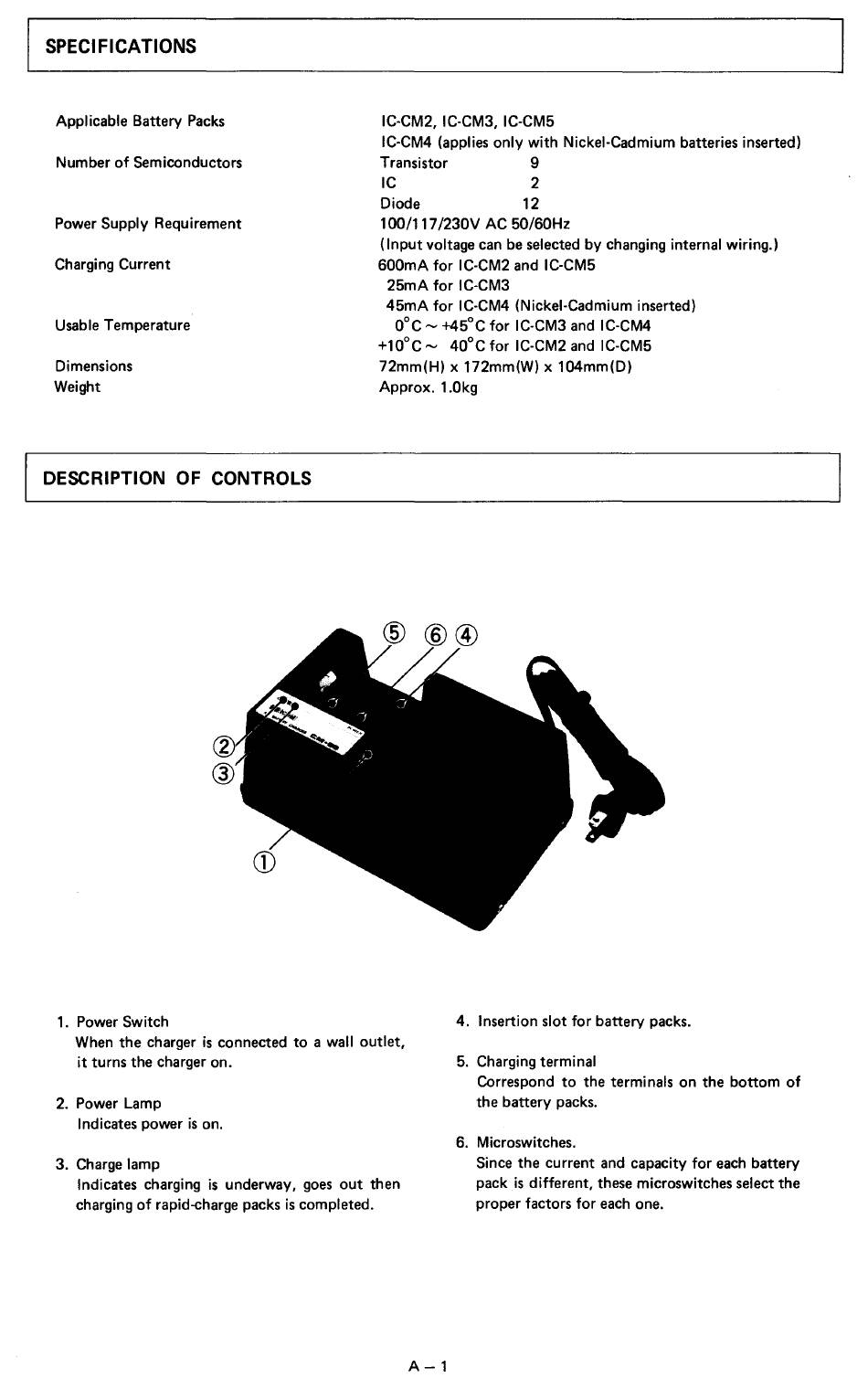

Icom IC-H6 Service Manual page 49

SPECIFICATIONS
Applicable Battery Packs
Number of Semiconductors
Power Supply Requirement
Charging Current
Usable Temperature
Dimensions
Weight
DESCRIPTION OF CONTROLS
1. Power Switch
®
@
IC-CM2, IC-CM3, IC-CM5
IC-CM4 (applies only with Nickel-Cadmium batteries inserted)
Transistor 9
IC
2
Diode 12
100/117 /230V AC 50/60Hz
(Input voltage can be selected by changing internal wiring.)
600mA for IC-CM2 and IC-CM5
25mA for IC-CM3
45mA for IC-CM4 (Nickel-Cadmium inserted)
0°C- +45°C for IC-CM3 and IC·CM4
+10°C- 40°C for IC-CM2 and IC-CM5
72mm(H) x 172mm(W) x 104mm{D)
Approx. 1.0kg
4. Insertion slot for battery packs.
When the charger is connected to a wall outlet,
it turns the charger on.
5. Charging terminal
2. Power Lamp
Indicates power is on.
3. Charge lamp
Indicates charging is underway, goes out then
charging of rapid-charge packs is completed.
A-1
Correspond to the terminals on the bottom of
the battery packs.
6. Microswitches.
Since the current and capacity for each battery
pack is different, these microswitches select the
proper factors for each one.
