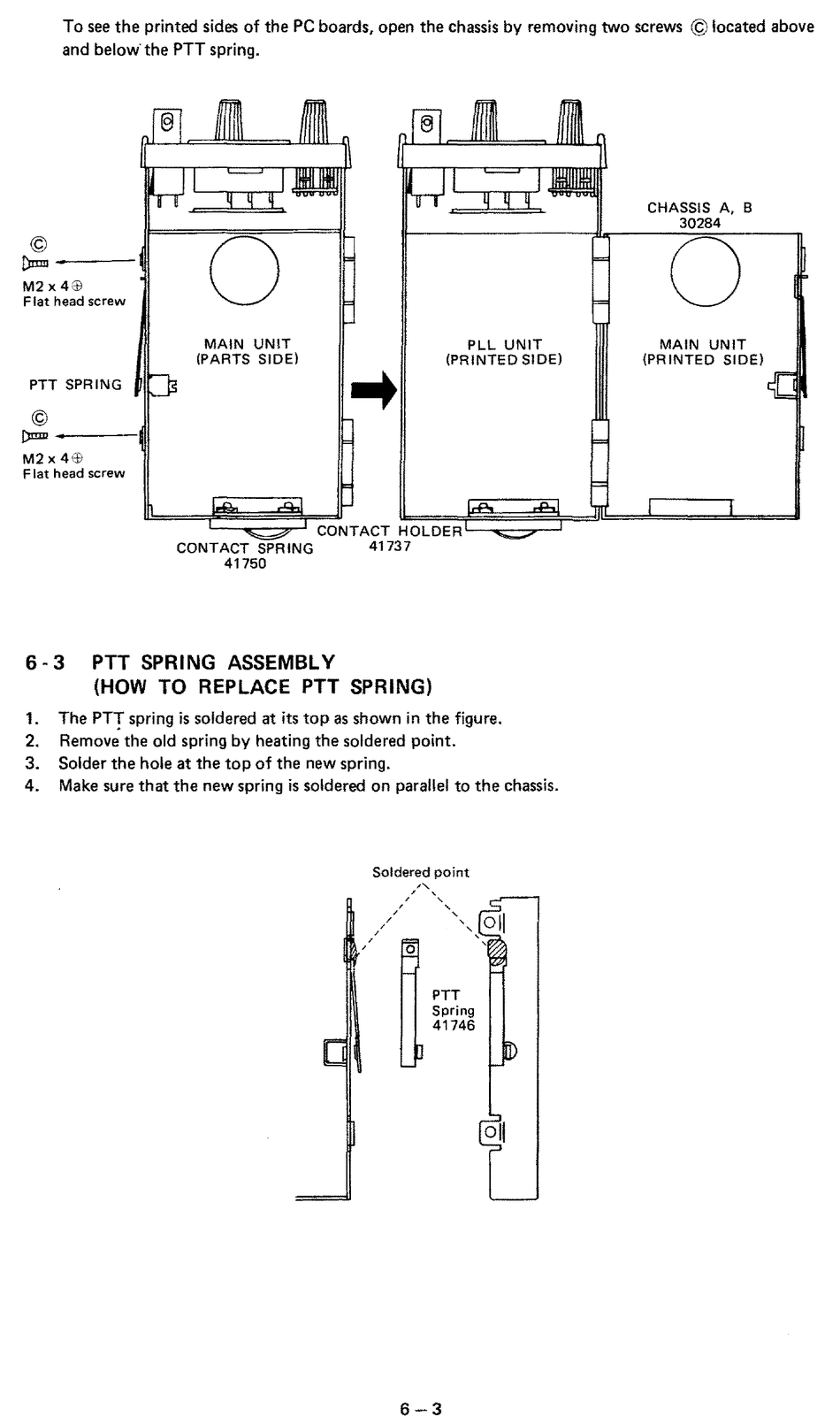

To see the printed sides of the PC boards, open the chassis by removing two screws ©located above
and below· the PTT spring.
©
Dmn----
M2x4l'B
Flat head screw
PTT SPRING
©
l)mi----111
M2x4C-f!
F lat head screw
0
MAIN UNIT
(PARTS SIDE)
PLL UNIT
(PRINTED SIDE)
~-,...-.....,.,,..~
CONTACT
HOLDER~.....,.__,-~
CONTACT SPRING 41737
41750
6 - 3 PTT SPRING ASSEMBLY
(HOW TO REPLACE PTT SPRING)
1. The PTf spring is soldered at its top as shown in the figure.
2. Remove the old spring by heating the soldered point.
3. Solder the hole at the top of the new spring.
4. Make sure that the new spring is soldered on parallel to the chassis.
Soldered point
,
,,
,
'
,
'
,
'
,
'
,
'
/
'
PTT
Spring
41746
6-3
CHASSIS A, B
30284
0
MAIN UNIT
(PRINTED SIDE)
