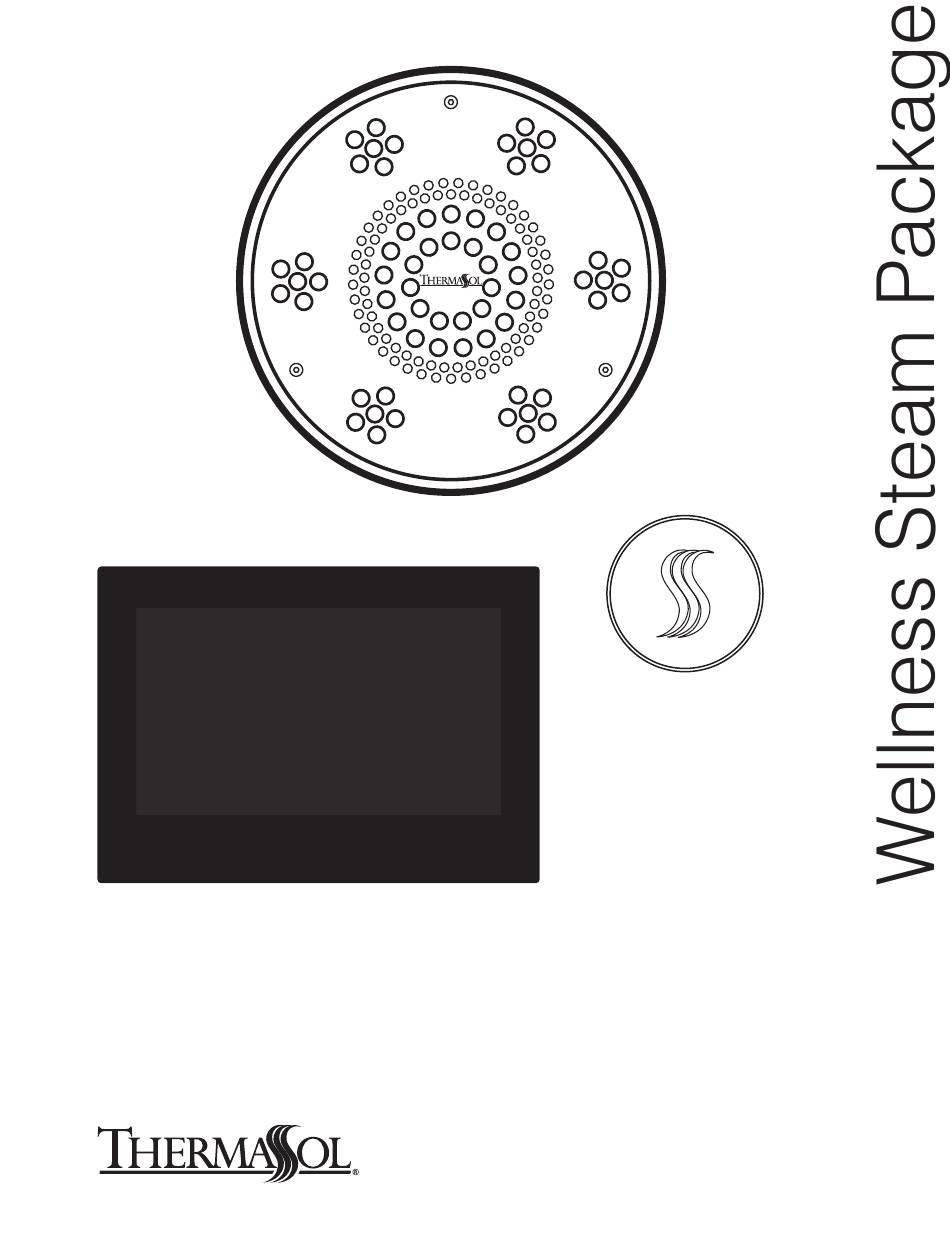

- Page 1 Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 2 ThermaTouch Control 7 Inch Screen Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions TT7X-XX OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 3 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
-
Page 4: Tools And Materials
(Router and Ethernet Cable not supplied). Mud Ring Application Finished wall must be flush with the mud ring. Shower wall Shower wall Mud Ring goes inside wall opening 7.5" W by 5.5" opening for recessed mount TTMR-BK Mud Ring THERMASOL.COM 800.776.0711... - Page 5 • Do not force plug • Hand tighten only Connect to PDM PDM requires 110V power Connect the data cable to Power Distribution Module (PDM). (The other end of the cable runs to the back of the control in the shower location.) THERMASOL.COM 800.776.0711...
- Page 6 (You may need to tape the control into place until the silicone dries.) Be careful not to harm the wall or control with the tape. Let dry for 24 hours before using steam bath. M12 Cable Ethernet Audio Side View of Surface Back Side of Surface Mount Control Mount Control THERMASOL.COM 800.776.0711...
- Page 7 Wellness Steam Package Connecting ThermaTouch to Generator 110v T T C S L S M8 Cable M12 Cable Connecting ThermaTouch to Serenity Light, Sound, Rainhead 110v M12 Cable Audio Cable T T C S L S M12 Cable THERMASOL.COM 800.776.0711...
- Page 8 Wellness Steam Package Connecting ThermaTouch to Digital Shower 110v M12 Cable Audio Cable T T C S L S M12 Cable Connecting Total Wellness Package 110v M12 Cable Audio Cable T T C S L S M8 Cable M12 Cable THERMASOL.COM 800.776.0711...
- Page 9 Use 1/2” brass pipe or copper tubing from unit to down turns; pitch/angle towards steam room after any up or down steamhead rough-in fitting as permitted by code. and avoid perfectly level plumbed lines. Shown installed in attic Steam Line 6" 24" THERMASOL.COM 800.776.0711...
- Page 10 It is very Insert protective cap Insert installation tool and into housing tighten housing into place with a 1" socket and driver Steamhead rough-in fitting to be installed flush and sealed to finished wall THERMASOL.COM 800.776.0711...
- Page 11 Verify control panel lights up and test operation. Note: Initial power-on phase takes several minutes for generator to heat up steam. Please direct the home owner to visit www.thermasol.com/solution and click on the “I’m the home owner” button to learn about set-up and programing (in order to set up the clock and any other options if applicable).
- Page 12 Serenity Light, Sound, Rain Head Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions SLSRRD-XX, SLSSQ-XX OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 13 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
- Page 14 Tighten retaining spring to half its normal height Retaining nut Retaining washer Retaining spring 3 1/2" x 1/4" threaded rod-bolt (studs) Plywood Waterproof Backing Mortar Finished Show- er Surface (Fig. 1) Installation Profile View THERMASOL.COM 800.776.0711...
- Page 15 Serenity Light, Sound, Rain Head This 25-foot Yellow M12 Cable Item 03-7149-25 ships with ThermaTouch control PDM Sold and ships with ThermaTouch control as well as with the other ThermaSol wellness packages. Template (see back cover) THERMASOL.COM 800.776.0711...
-
Page 16: Mounting Hardware
Input on the Rain Head. control • Next, connect the M12 power/data cable that runs or will run to the Power Distribution Module (PDM). NOTE: Make sure that the “L ” shaped end of M12 cable is connected to the Rain Head THERMASOL.COM 800.776.0711... - Page 17 Make sure that the M12 power/data cable is connected from the Rain Head to PDM • PDM must be plugged in to standard 110V electrical outlet • If your control is plugged in and powered ON you can test the lights and etc. THERMASOL.COM 800.776.0711...
- Page 18 Wellness Steam Package Template must be full scale 1:1 when printed...
- Page 19 ThermaSol Product Registration Dear ThermaSol End User: Please register your product at www.thermasol.com/warranty so we can assist you much quicker if you ever need to contact our Technical Support Department. In addition we’ll keep you informed about your product and time to time we’ll update you about new products and other company announcements.
- Page 20 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81240_NC...
