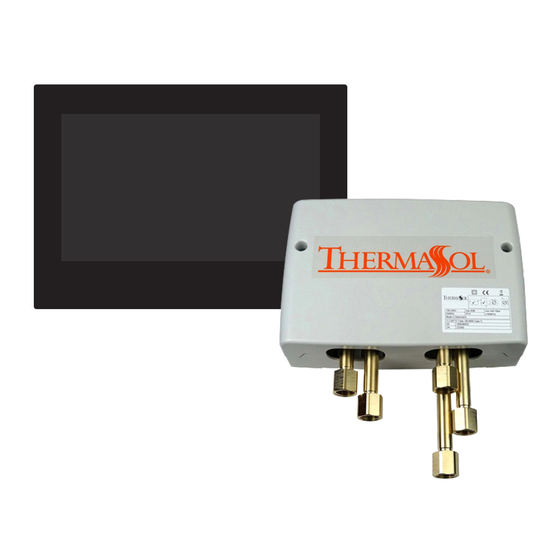

Thermasol ThermaTouch TT7 Series Installation Manual

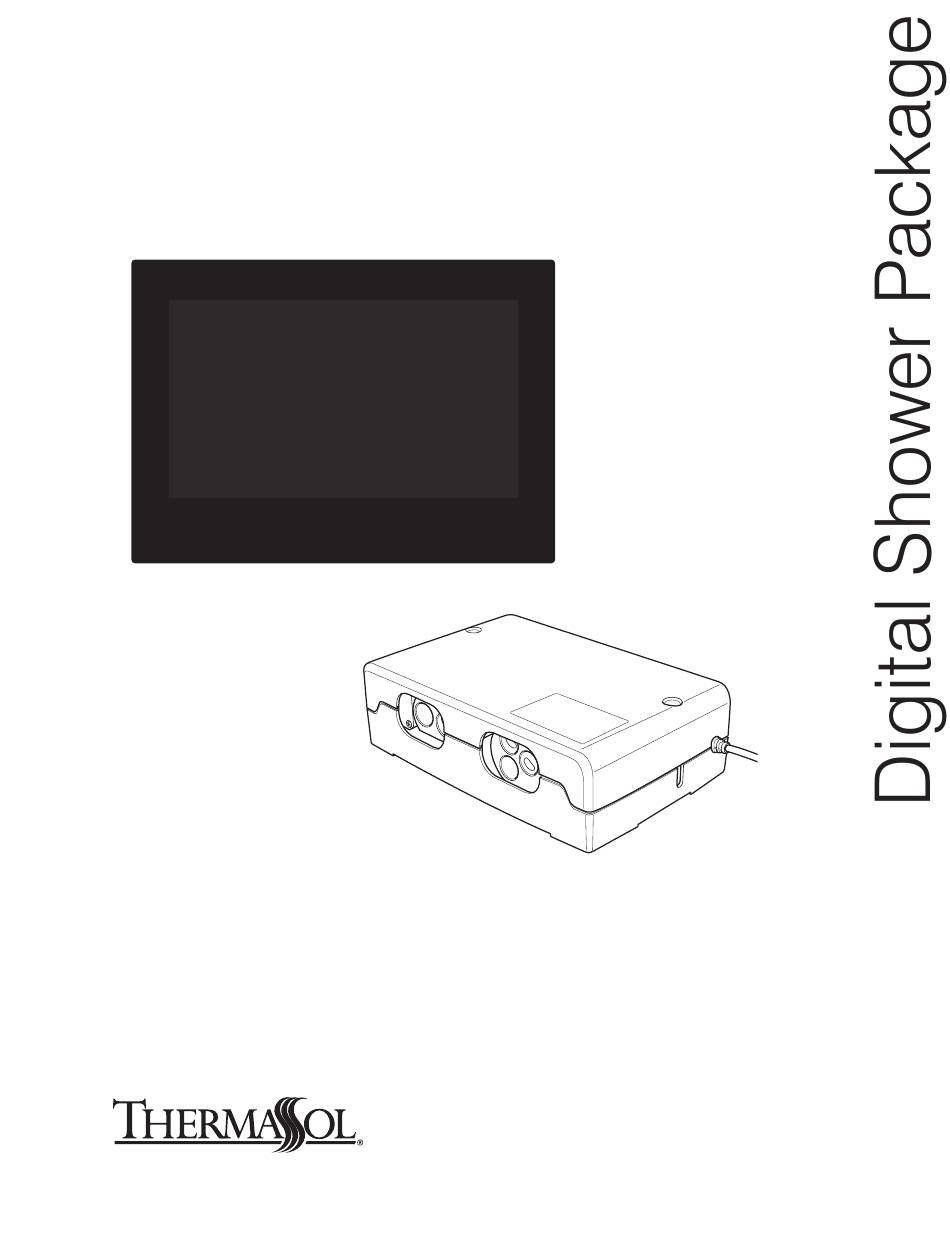

Digital shower package
Hide thumbs
Also See for ThermaTouch TT7 Series:
- Installation manual (20 pages) ,
- Installation manual (20 pages)
Related Manuals for Thermasol ThermaTouch TT7 Series
Summary of Contents for Thermasol ThermaTouch TT7 Series
- Page 1 Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 2 ThermaTouch Control 7 Inch Screen Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions TT7X-XX OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 3 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
- Page 4 (Router and Ethernet Cable not supplied). Mud Ring Application Finished wall must be flush with the mud ring. Shower wall Shower wall Mud Ring goes inside wall opening 7.5" W by 5.5" opening for recessed mount TTMR-BK Mud Ring THERMASOL.COM 800.776.0711...
- Page 5 • Do not force plug • Hand tighten only Connect to PDM PDM requires 110V power Connect the data cable to Power Distribution Module (PDM). (The other end of the cable runs to the back of the control in the shower location.) THERMASOL.COM 800.776.0711...
- Page 6 (You may need to tape the control into place until the silicone dries.) Be careful not to harm the wall or control with the tape. Let dry for 24 hours before using steam bath. M12 Cable Ethernet Audio Side View of Surface Back Side of Surface Mount Control Mount Control THERMASOL.COM 800.776.0711...
- Page 7 Digital Shower Package Connecting ThermaTouch to Generator 110v T T C S L S M8 Cable M12 Cable Connecting ThermaTouch to Serenity Light, Sound, Rainhead 110v M12 Cable Audio Cable T T C S L S M12 Cable THERMASOL.COM 800.776.0711...
- Page 8 Digital Shower Package Connecting ThermaTouch to Digital Shower 110v M12 Cable Audio Cable T T C S L S M12 Cable Connecting Total Wellness Package 110v M12 Cable Audio Cable T T C S L S M8 Cable M12 Cable THERMASOL.COM 800.776.0711...
- Page 9 Digital Shower Package Digital Shower Valve Installation Manual TDS-3000 OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 10 BEFORE USING THE SHOWER, TEST THE WATER TEMPERATURE WITH YOUR HAND BEFORE FULLY ENTERING THE SHOWER. DO NOT USE THERMASOL AROMATHERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL PRODUCT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
-
Page 11: System Layout
Digital Shower Package System Layout Serenity ThermaTouch Control Light and Sound (Inside Shower) 110V Power To LAN/ROUTER Digital Interface Steam 110V Power Generator TDS-3000 Digital Shower Valve 208/240VAC Easy Start Control Water Inlets Shower Outputs (3) (Outside Shower) (Hot/Cold) THERMASOL.COM 800.776.0711... -
Page 12: Scope Of Application
Digital Shower Package Scope of Application Digital Interface TDS-3000 Digital Shower Valve IMPORTANT: The Digital Shower Valve must be accessible and should not be sealed in the wall THERMASOL.COM 800.776.0711... -
Page 13: Remove Cover
Digital Shower Package Remove Cover Inside Valve System Controller Battery Compartment Power Supply Fixing Holes Connector 15V ACCU Block Cold Outlets Inlets THERMASOL.COM 800.776.0711... - Page 14 Digital Shower Package Mark and Drill Holes 235mm / 9.25" 235mm / 9.25" 8mm / 0.31" THERMASOL.COM 800.776.0711...
- Page 15 Digital Shower Package Install Valve System Controller Remove Inlet Retaining Bolt THERMASOL.COM 800.776.0711...
- Page 16 Digital Shower Package Connect Hot and Cold Water Supply 2. Insert inlet connectors 1. Connect hot and cold water supply 3. re-insert retaining bolt IMPORTANT: Flush the pipework before connection Remove Outlet Retaining Bolt THERMASOL.COM 800.776.0711...
- Page 17 Digital Shower Package Connect Outlet Pipeworks 3. re-insert retaining bolt 2. Insert outlet connectors 1. Connect outlet pipeworks IMPORTANT: Flush the waterlines prior to connecting to clear any debris. THERMASOL.COM 800.776.0711...
- Page 18 Digital Shower Package Connect Back Up Battery Connect The Digital Interface Connect the digital interface to the RS232 port RS232 Port THERMASOL.COM 800.776.0711...
- Page 19 Digital Shower Package Connect The PDM THERMASOL.COM 800.776.0711...
- Page 20 Digital Shower Package Re-fit Cover and Connect IMPORTANT: Electrical connection must be installed by a qualified electrician. THERMASOL.COM 800.776.0711...
- Page 21 ThermaSol Product Registration Dear ThermaSol End User: Please register your product at www.thermasol.com/warranty so we can assist you much quicker if you ever need to contact our Technical Support Department. In addition we’ll keep you informed about your product and time to time we’ll update you about new products and other company announcements.
- Page 22 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81246_NC...
