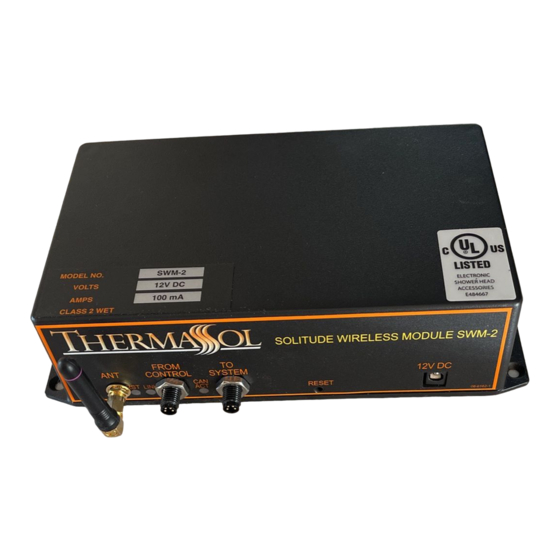

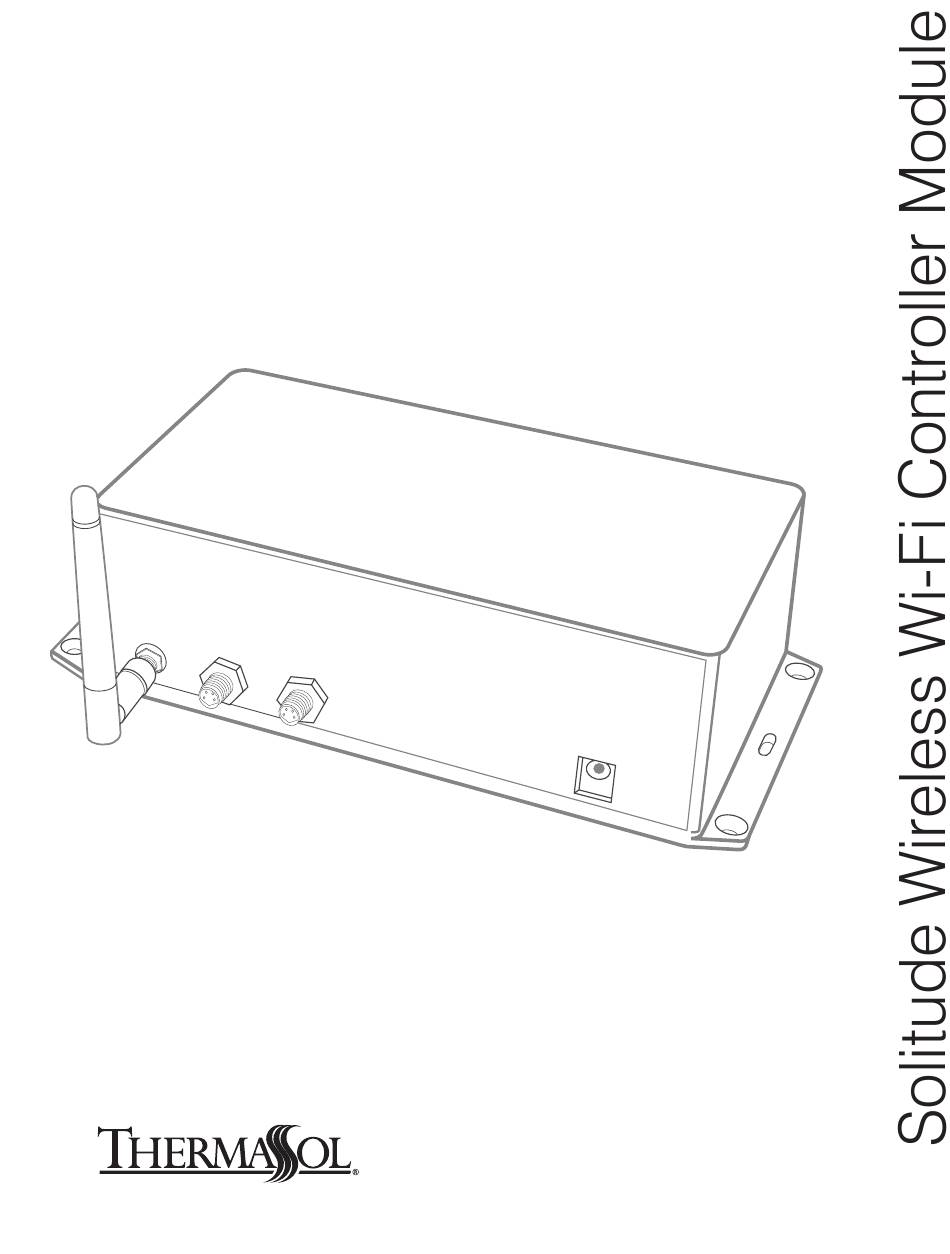

- Page 1 For use with Android and Apple Wi-Fi equipped devices THERMASOL.COM/solutions SWM-2 OVER 55 YEARS OF STEAM SHOWER INNOVATION...
-
Page 2: Network System Requirements
Solitude Wireless Wi-Fi Controller Module Installation Instructions Customer Warnings DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR THERMASOL GENERATORS ARE NOT TO BE USED FOR SPACE DOCTOR AND HAVE RECEIVED WRITTEN PERMISSION TO DO SO. USE HEATING PURPOSES. - Page 3 RESETTING YOUR THERMASOL MODULE BACK TO FACTORY DEFAULT SETTINGS If at any time there is a need to go back to the factory default settings, reset the ThermaSol module's IP address and other default settings by inserting a straightened paper clip into the reset hole. You will feel a button depress. Keep the button depressed until the green "RST"...
-
Page 4: Direct Connection
Solitude Wireless Wi-Fi Controller Module Installation Instructions Connecting Your Mobile Device to the SWM-2 There are two different ways to connect your mobile device to the SWM-2: Direct and Networked. DIRECT CONNECTION: Mobile device connects to SWM-2 directly Phone or tablet device... - Page 5 Solitude Wireless Wi-Fi Controller Module Installation Instructions Connecting Your Mobile Device to the SWM-2 There are two different ways to connect your mobile device to the SWM-2: Direct and Networked. NETWORKED CONNECTION: Mobile device connects to SWM-2 through customer's home wireless router...
- Page 6 Directly Connecting Your Apple Wi-Fi Device DOWNLOAD THE APP AND CONNECT TO THE THERMASOL SWM-2 1. Go to the App Store on your iPhone, iTouch or iPad. Search for and download the latest ThermaSol App 2. Select “Settings” on your Apple device 3.
- Page 7 4. Exit the settings menu and start the ThermaSol App 5. Confirm that the App connects to your hardware 6. Go to page 18 of these instructions to learn to operate the ThermaSol SWM-2 App 81188 Rev A 02/16 THERMASOL.COM...
- Page 8 Connecting a Networked Apple Device DOWNLOAD THE APP AND CONNECT TO THE THERMASOL SWM-2 1. Go to the App Store on your iPhone, iTouch or iPad. Search for and download the latest ThermaSol App 2. Select “Settings” on your Apple device 3.
- Page 9 Figure 7: QuickConnect WLAN Link Scan list 5. Enter your Wi-Fi access point password or hex key in the space provided and select submit as shown below in Figure 8 Figure 8: WLAN Wi-Fi Password Continued on page 10. 81188 Rev A 02/16 THERMASOL.COM 800.776.0711...
- Page 10 7. Once connection is complete, the configuration web page will reflect the changes as shown below in Figure 10, and the WLAN LINK indicator light on the front of the SWM-2 will become lit green Figure 10: Successful local WLAN Wi-Fi access point connection Continued on page 11.
- Page 11 Figure 12: ThermaSol App IP address setting 4. Exit the settings menu and start the ThermaSol App. Confirm that the App connects to your hardware. 5. Go to page 18 of these instructions to learn to operate the ThermaSol SWM-2 App 81188 Rev A 02/16 THERMASOL.COM...
- Page 12 Directly Connecting An Android Device DOWNLOAD THE APP AND CONNECT TO THE THERMASOL SWM-2 1. Go to the Google Play App Store on your Android phone or table. Search for and download the latest ThermaSol App 2. Select “Settings” on your Android device 3.
- Page 13 Figure 17: ThermaSol App IP address setting 4. Exit the settings menu using the Android back or home buttons and re-start the ThermaSol App 5. Confirm that the App connects to your hardware. Go to page 8 of these instructions to learn to operate the...
- Page 14 Connecting A Networked Android Device DOWNLOAD THE APP AND CONNECT TO THE THERMASOL SWM-2 1. Go to the Google Play App Store on your Android phone or table. Search for and download the latest ThermaSol App 2. Select “Settings” on your Android device 3.
- Page 15 Figure 21: QuickConnect WLAN Profile confirmation 7. Once connection is complete the configuration web page will reflect the changes as shown below in Figure 22, and the WLAN LINK indicator light on the front of the SWM-2 will become lit green Continued on page 16.
- Page 16 Connecting A Networked Android Device 8. After successful connection select the “Status” tab on the SWM-2 configuration web page 9. Make a note of the assigned IP Address as shown below in Figure 23. Use only the portion of the address that precedes the forward slash, 10.0.0.12 in this example (the IP address shown is for illustration purposes only, the customers assigned IP...
- Page 17 The “Settings” menu button is shown below in Figure 25 Figure 25: ThermaSol App Settings menu button 3. Enter the IP address that was captured above in step 9 of “CONFIGURE THE NETWORK” section into the ThermaSol App IP address field as shown below in Figure 26 Figure 26: ThermaSol App IP address setting 4.
- Page 18 Note: Your last settings will be saved to your USER 1 or USER 2 presets 5 seconds after selection. To turn off steam session, press the power button. It will turn RED, confirming steam session is off. 81188 Rev A 02/16 THERMASOL.COM 800.776.0711...
- Page 19 To adjust volume, slide your finger from left/ right on the master volume bar. Press x to mute/unmute. TO SELECT INPUTS: Press FM, input 1 or input 2 buttons Note: ThermaSol includes a Bluetooth adapter with every light and sound system so you can use Bluetooth enabled devices to stream your music to the system and use that device to control play selection.
- Page 20 The EQ Menu will appear. Use the slider with your finger to adjust bass, treble and midrange levels to your preference. You can return to the main music menu anytime by pressing the back button. 81188 Rev A 02/16 THERMASOL.COM 800.776.0711...
- Page 21 After you have chosen a particular shade of light you find soothing press the set button and then 1-4 to save into your user settings. Note: You must be in a USER 1 or 2 mode to save. Continued on page 22. 81188 Rev A 02/16 THERMASOL.COM 800.776.0711...
- Page 22 You can also use those round buttons to select a chakra. ADJUSTING LIGHT BRIGHTNESS/INTENSITY (ALL LIGHT MODES): From all light menus simply use your finger to slide from right/left to increase decrease overall brightness. 81188 Rev A 02/16 THERMASOL.COM 800.776.0711...
- Page 23 PowerFlush instructions. REMOTE MENU: HELP MENU: If you have the light and sound Provides email link to ThermaSol’s system with R/F remote control, customer support network. this screen will allow you to check Or simply call (800) 776.0711.
- Page 24 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81188 Rev A 02/16...
