Lince 1805SMART/E Technical Manual

Lince 1805SMART/E Technical Manual

Outdoor siren

Advertisement

LINCE ITALIA S.p.A.
REG.N.4796
UNI EN ISO 9001:2008
Sirena autoalimentata da esterno/ Outdoor siren
SMART/E

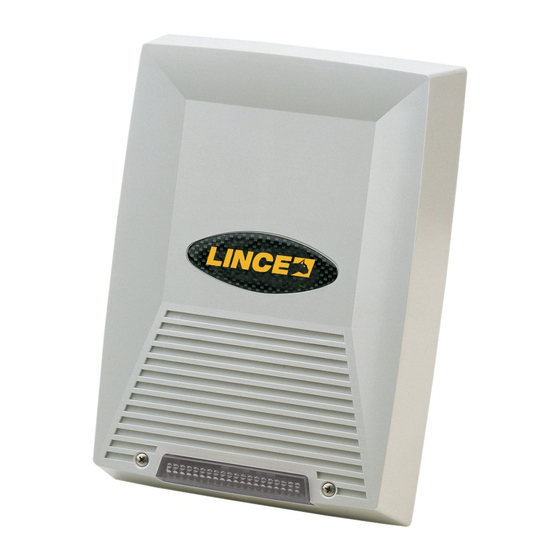

Art./Item: 1805SMART/E
__MANUALE DI INSTALLAZIONE__
__TECHNICAL MANUAL__
_________MADE IN ITALY________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1805SMART/E and is the answer not in the manual?

Questions and answers

Summary of Contents for Lince 1805SMART/E

  • Page 1 LINCE ITALIA S.p.A. REG.N.4796 UNI EN ISO 9001:2008 Sirena autoalimentata da esterno/ Outdoor siren SMART/E Art./Item: 1805SMART/E __MANUALE DI INSTALLAZIONE__ __TECHNICAL MANUAL__ _________MADE IN ITALY________...
  • Page 2: Table Of Contents

    The informations in this manual have been issued with care, anyway LINCE ITALIA S.p.A. will not be responsible for any errors or omissions. LINCE ITALIA S.p.A. reserves the rights to improve or modify the products described in this manual at any times and without advance notice. Terms and conditions of assistance and warranty on LINCE ITALIA's website www.lince.net.
  • Page 3: Introduzione

    Il manuale descrive le modalità di installazione della The manual describes how to install the self-powered siren sirena autoalimentata 1805SMART/E. La sirena è il 1805SMART/E. The siren is the main warning device to principale dispositivo di segnalazione a cui deve which it must be given a high degree of safety and reliability essere dato un alto grado di sicurezza e di affidabilità...
  • Page 4: Installazione

    Installazione Installation Per una corretta installazione seguire le istruzioni di Please use this paragraph procedure to install correctly the questo paragrafo. outdoor siren. 2.1. Montaggio 2.1. Mounting the unit La sirena dovrebbe essere installata il più in alto The siren should be installed as high as possible, in a not possibile, in un luogo non facilmente raggiungibile e accessible place and under an additional shelter (e.g.
  • Page 5: Collegamenti Elettrici

    JP2 (collegare al way, according to the programming jumper JP2 morsetto BA delle centrali LINCE). (connect to the LINCE's control panel terminal BA). • AS AS: morsetti collegati al microinterruttore • AS AS: terminals connected to the tamper antisabotaggio che si apre quando si rimuove il coperchio frontale della sirena.
  • Page 6: Programmazione Sirena

    (NC) (for connection to the control panel terminal BA JP2 APERTO: uscita open collector (OC) negativa, series LINCE EURO). normalmente chiusa (NC) (per collegamento sul morsetto BA delle centrali LINCE serie EURO). SELEZIONE PARTENZA ALLARME: SELECTION START ALARM: JP1 CHIUSO: per mancanza di positivo.
  • Page 7: Logica Di Funzionamento Del Flash Led.7

    AL della sirena al morsetto NC della centrale e fare un ponticello sempre in centrale tra il morsetto C e un positivo. NOTE: By using a NO LINCE control panel let connect terminal AL to NC and let connect terminal C to a positive signal.
  • Page 8 LINCE ITALIA S.p.A. Via Variante di Cancelliera, snc 00040 Ariccia (Roma) tel. +39 06 9301801 fax +39 06 930180232 info@lince.net www.lince.net 001530/00704AD Pag.8/8...
