EVERSPRING LuxHome Installation And Operating Instructions

433MHz Wire Free Remote Keypad
These instructions should be read in conjunction with
your System Installation and Operating Instructions
and be retained for future reference.
Introduction
The LuxHome Wire Free Remote Keypad is designed for
use with LuxHome Wire Free Intruder Alarm systems
operating on 433MHz only.
Transmit Low Battery
Indicator Indicator
LED LED
0
1 2 3
4 5 6
7 8 9

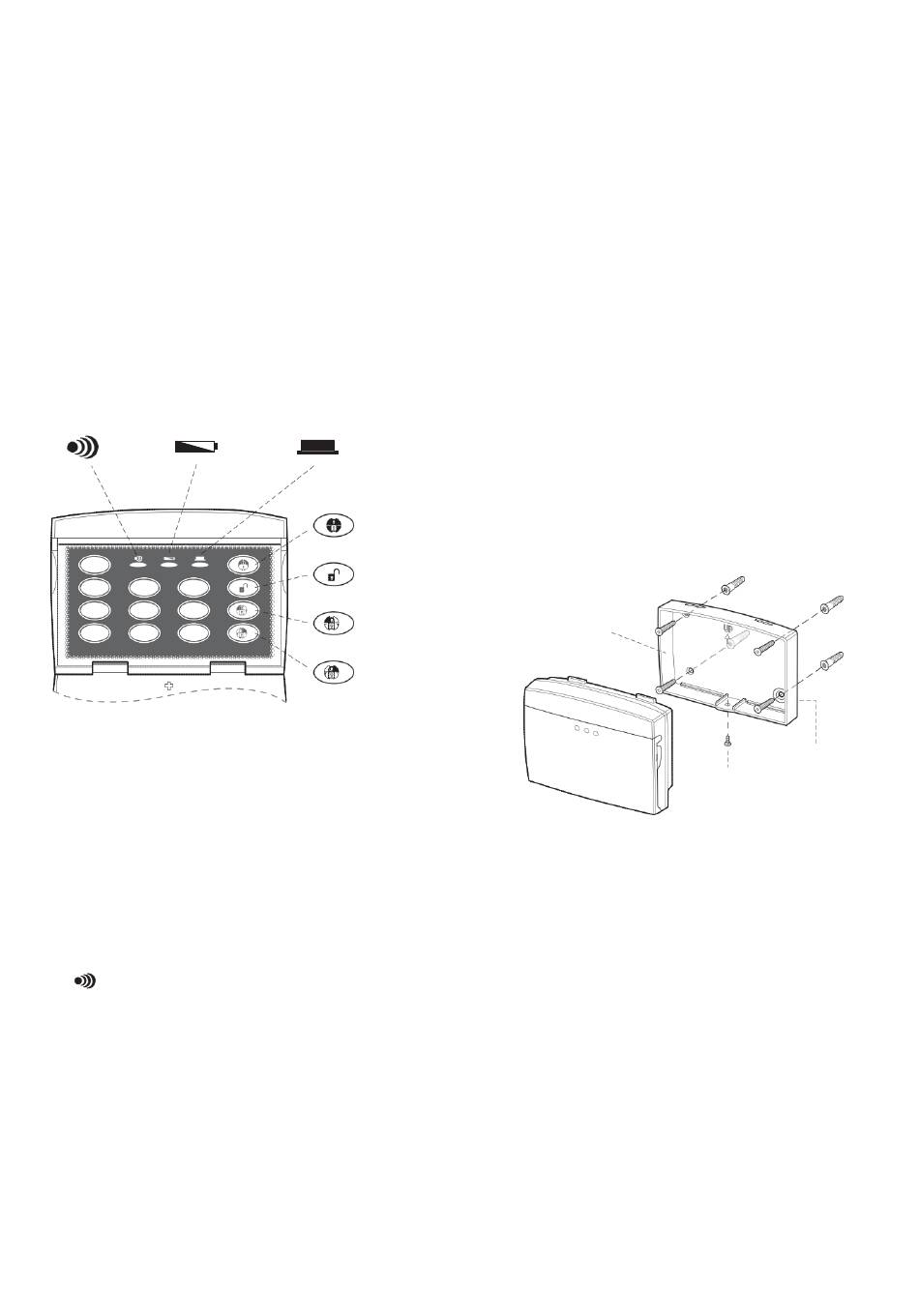

Fig. 1 Wireless Keypad Function Guide
The Wire Free Keypad controls the system by using a four
digit User Access Code. The Keypad incorporates panic
and anti-tamper protection
immediately initiate a Full Alarm condition when activated.
Any attempt to open the casing of the Keypad will
immediately initiate a Full Alarm condition even if the
system is disarmed, (unless the system is in Service, Test or
Programming modes). In addition if a sequence of more
than 16 incorrect key presses are entered the Keypad will
be disabled for one minute. During this one minute period
the LED will keep flashing slowly. If consecutively disabled
three times, the Keypad will emit the tamper signal and
initiate a Full Alarm condition.
The Keypad's User Access Code is independent from any
other access codes.
The Keypad is powered by a 9V PP3 Alkaline battery. Under
normal operating conditions this will provide an expected life
of up to one year. When the battery level falls below an
acceptable level, the "LOW BATTERY" indicator on the front
of the Keypad will flash. When this occurs the battery should
be replaced as soon as possible
LuxHome
Installation and Operating Instructions
Key Pressed
Confirmation
Indicator LED
Arm
Disarm
1
Part-Arm 1
1
or Delay Arm
2
Part-Arm 2
2
or Delay Arm
features that
.
Positioning the Keypad
The Keypad is rated IP44 and suitable for mounting
outdoors. The Keypad should be mounted in a position
close to the main entrance door so that the user access
code can be entered easily.
Ensure that the position selected for the Keypad is within
the effective range of the Siren or Control Panel.
Note: DO NOT fix the Keypad to metalwork or locate the
unit within 1m of metalwork (i.e. radiators, water pipes, etc)
as this could affect the transmission range of the Keypad.
Installing and Configuring
the Keypad
If you have a system with a Control Panel, ensure it is in
Test or Programming Mode. If you have a system without a
Control Panel, ensure that the Siren is in Service mode.
Fig. 2
Wall Mounting Plate
will
1. Undo and remove the fixing screw from the bottom edge of
the Keypad and remove the wall mounting plate. (Fig. 2).
2. Using the mounting plate as a template, mark the
positions of the four fixing holes on the wall.
Note: To make the best use of anti-tamper protection
you must insert a wall plug and screw in the specified
hole (as illustrated).
3. Fix the mounting plate to the wall using the screws and
wall plugs provided, (a 5mm hole will be required for the
wall plugs). Do not over-tighten the fixing screws as this
may distort or damage the mounting plate.
Note: Installing the Keypad against a flat and smooth
wall is of great importance so as to avoid the tamper
switch being falsely triggered.
Note: The wall plugs supplied with the product are not
suitable for plasterboard walls, if mounting the Keypad
on to plasterboard use appropriate wall plugs.
Anti-Tamper
Protection
Fixing
Screw
