- Page 1 Professional alcohol tester AD 03 Operation Manual...
-
Page 2: Power Supply

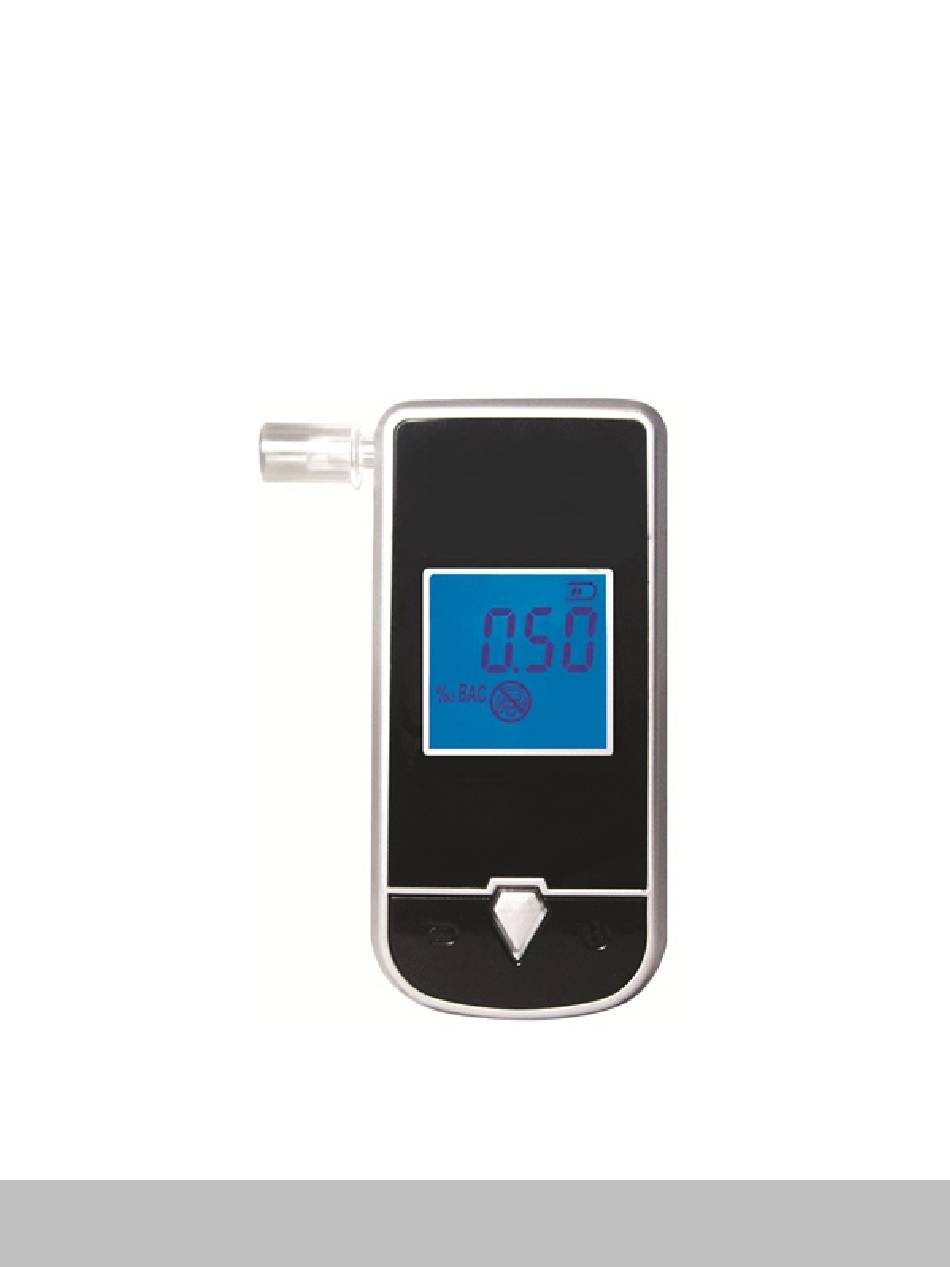

Measurement ·AD 03 Personal Breathalyzer, is a hand held Professional Alcohol Analyzer. Using electrochemical reaction for platinum and ethanol molecules, AD 03 Personal Breathalyzer can give stable and reliable measuring technology. ·Abstain from smoking or drinking alcohol for at least 10 minutes. - Page 3 Parts Mouthpiece Battery indication Hour Minute Unit Blow Back Key Mode Key Ready Blood alcohol content over the alert level Power Key Battery indication Wait OK Key Result Blow Unit No driving Max test Battery Blow No Driving Indication Unit...
-
Page 4: Operation
Operation Power ON/OFF Press the Key once to turn on the device.·When LCD show “ALCO”, hold the Key for about 2 seconds to power off the device. ·When the machine is powered on, “ALCO” will be shown on the display. Press OK key and sensor pre-heating will be activated. - Page 5 breath sample and stop blowing after you hear a “beep” tone. If the breath sampling is successful, “Anly” (indicates analyzing) will flash and the reading will be shown accordingly. If the blowing time is too short or airflow is too soft or the blow is interrupted, “ERR”...
-
Page 6: Important Notes
Note: while the test result showing LCD (as picture above), user can press the key to recall the last test result record. Important Notes When unused for a long time or at a low temperature, the machine will take longer to warm up time. After 5 consecutive tests, allow the device to rest for 5 minutes. - Page 7 When battery indicator flashes, replace with a new battery. If the difference between two successive readings is >0.1‰(0.01%) user should test again. During the breath sampling, do NOT block the outlet. While “Err” flashes on the display, user can press OK key to re-start the test, or device will back to the “ALCO”...
- Page 8 use for accuracy and hygienic consideration. This unit may require a few minutes of stand by between measurements. Store according to specifications. Avoid long term sun exposure and humidity. Handle with care, as a fragile item. How often should I re-calibrate? The tester can remain accurate for 1 year of use.
- Page 9 calibration. This user manual should be read carefully for information on caring for the unit sensor. Many factors (e.g. environment gas residue, smoke & various smell in human mouth, etc) may affect the BAC level, so the readings are For Reference Only. Neither the reseller nor manufacturer accepts any liability arising from the use of the unit.
