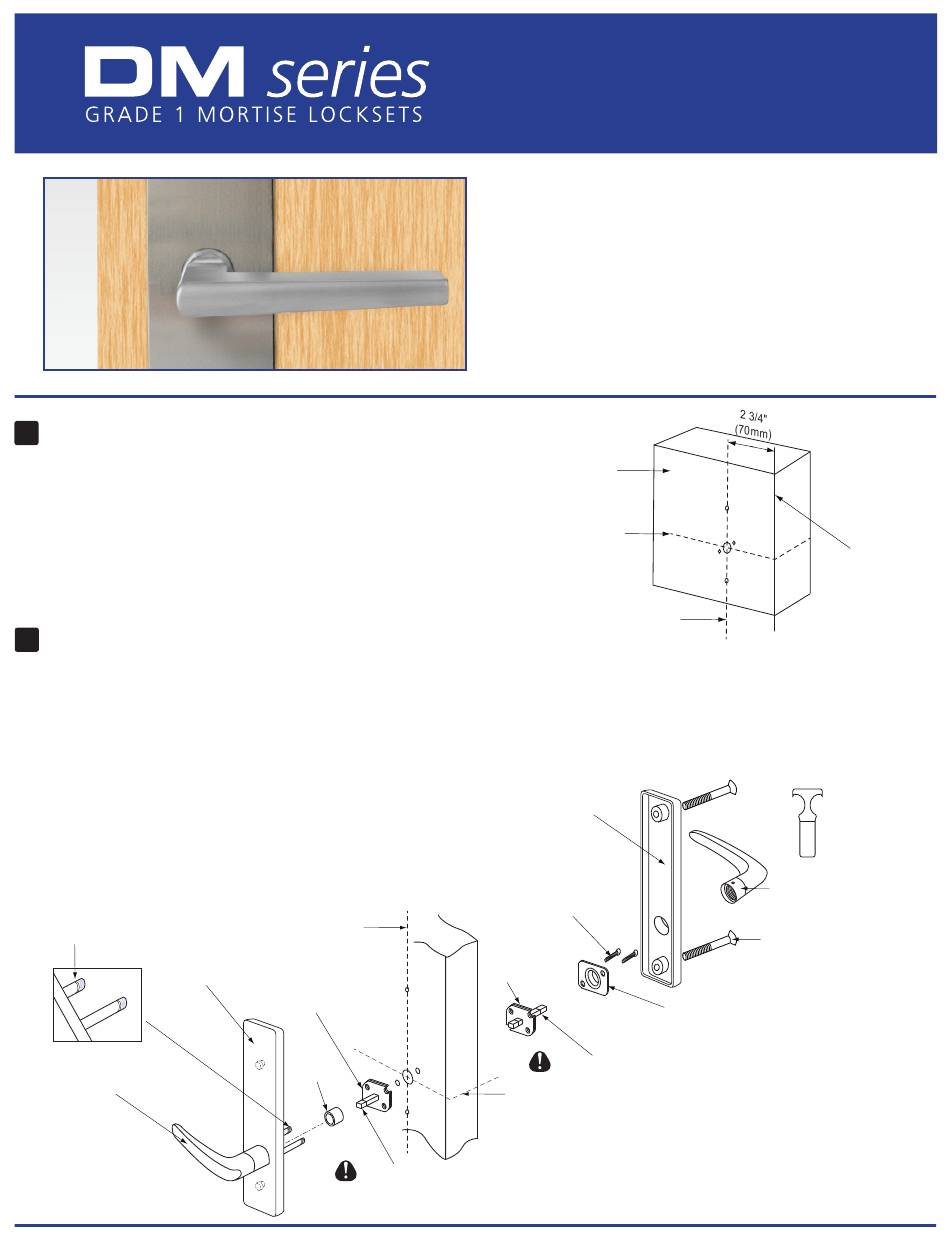

Canaropa DM Series Installation Instructions

A

Door preparation

1. Draw backset vertical line and lever/knob centerline on door.
2. Apply installation template on door, align backset vertical lines and
lever/knob centerlines.
3. Drill required holes as per supplied template.
B
Installation instructions
1. Insert bushing into outside escutcheon assembly.
2. Place outside fixed spindle assembly into outside escutcheon assembly, ensure longer spindle is inserted into lever.
3. Align outside escutcheon mounting posts with prepared holes on door, ensure the lever is horizontal.
4. Place inside fixed spindle assembly into prepared hole, ensure longer spindle is facing away from the door surface.
5. Place mounting plate over the fixed spindle assemble, ensure threaded hub is facing away from the door surface.
6. Secure mounting plate to outside escutcheon using supplied machine screws.
7. Secure inside escutcheon plate using supplied mounting bolts.
8. Thread lever on to the threaded hub. Tighten with supplied spanner tool.
Cut-off post tip
for 1 3/4" thick door
Escutcheon
Lever / Knob (outside)
Backset vertical line
OUTSIDE
Spindle fixing assembly
Bushing
Long spindle side
INSTALLATION
INSTRUCTIONS
DUMMY
MORTISE LOCKSET
BACK TO BACK
DM 172E ESCUTCHEON
Installation
template
C L
Lever / knob
Horizontal line
Backset vertical line
Escutcheon
INSIDE
Machine screws
8-32 UNC
Spindle fixing
assembly
Inside Mounting plate
with threaded hub
Long spindle side
Horizontal line
Left hand outswing (left hand reverse) door
installation shown
See template for other handing installations
Door edge
Fold line
Spanner
wrench
Lever / Knob (inside)
Mounting
bolt
DM172E -TB -INS - EN-FR - 2017/10
