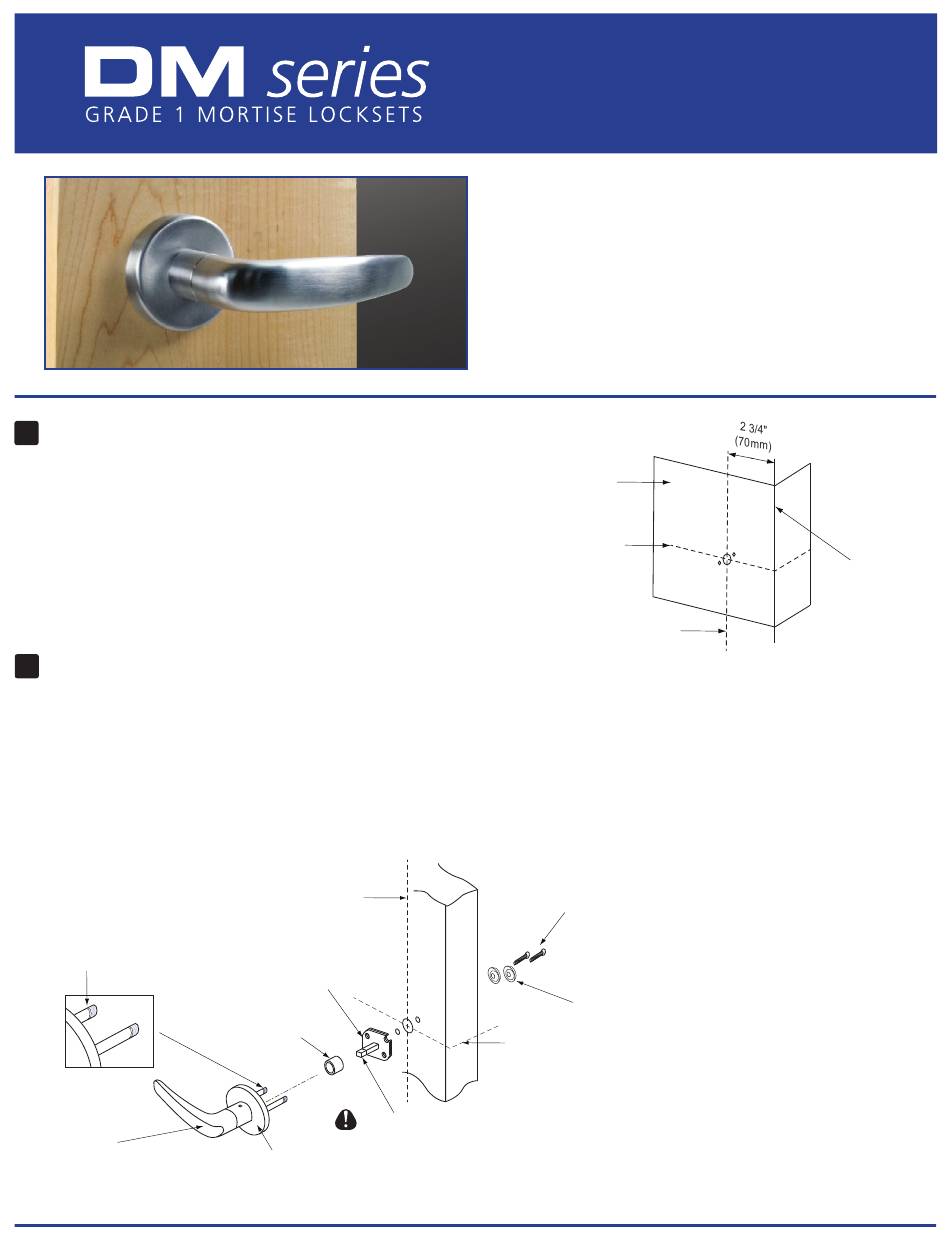

Canaropa DM Series Installation Instructions

A
Door preparation
1. Draw backset vertical line and lever/knob centerline on door.
2. Apply installation template on door, align backset vertical lines and
lever/knob centerlines.
3. Drill required holes as per supplied template.
B
Installation instructions
1. Insert bushing into outside lever/knob assembly.
2. Place spindle fixing assembly on outside lever assembly, ensure side with long spindle is facing towards lever/knob.
2. Position outside lever assembly in post holes on door (ensure lever handle is in horizontal position).
4. Using two posts of outside lever/knob as a guide, slide spindle fixing assembly on outside door.
5. Attach outside lever/knob assembly to door using the machine screws and the finishing washers.
Cut-off post tip
for 1 3/4" thick door
Spindle fixing assembly
Lever / Knob
(outside)
Backset vertical line
OUTSIDE
Bushing
Long spindle side
Round or square rose
INSTALLATION
INSTRUCTIONS
DUMMY
MORTISE LOCKSET
SINGLE
DM 171 SECTIONAL
(Through bolts)
Installation
template
C L
Lever / knob
Horizontal line
Backset vertical line
INSIDE
Oval head machine screws
8-32 UNC
Finishing washers
Horizontal line
Left hand outswing door installation shown
(Right hand outswing is opposite)
Door edge
Fold line
DM171S -TB -INS - EN-FR - 2015/03
