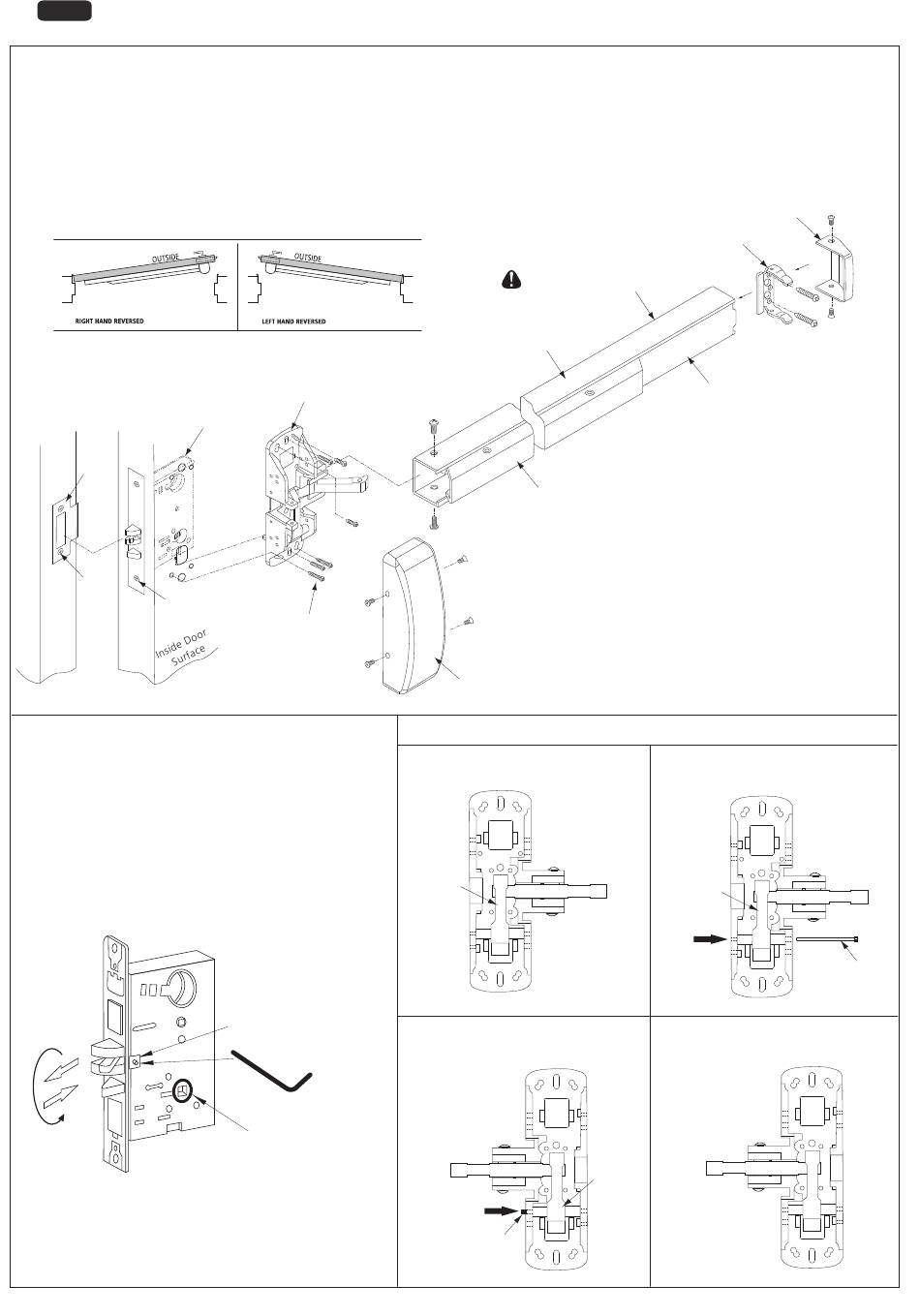

Canaropa 9500M Series Installation Instructions

9500M
MORTISE LOCK EXIT DEVICE (FIRE) - INSTALLATION INSTRUCTIONS
SERIES

GENERAL NOTES

Before installing the exit device, verify the following:
1. Door is properly fitted and hung.
2. Door surface on which the exit device will be installed is flush and flat.
3. Verify if the exit device length is suitable for the applicable door width. If the exit device mounting rail requires to be shortened see below:
a. The 3' exit device model can be cut to fit doors from 30" (762mm) to 36" (914mm) in width (refer to section 4 on sheet 2.)
b. The 4' exit device model can be cut to fit doors from 36" (914mm) to 48" (1219mm) in width (refer to section 4 on sheet 2.)
4. Exit device handing (refer to illustration below.)
5. Lock function and trim compatibility.
6 Review all templates and installation instructions prior to any door preparation.
NOTE: Mortise exit device is meant to be used with a compatible exterior trim. Refer to section 2 on page 2.
Mortise lock
(LHR shown)
Strike
Strike
screws
Mortise lock
body screws
TO CHANGE LOCK BODY HAND
OF FIELD REVERSIBLE MORTISE LOCK:
If it is necessary to change handing, follow the instructions below:
1. Use hex key to unfasten the screw in the hole behind latch bolt (green label).
2. Pull latch bolt out from the front of the lock case.
3. Rotate latch bolt 180° to proper handing and push latch bolt back into lock case.
4. Securely tighten the screw in the hole and secure with Thread locker (Loctite 242).
5. Handing is now reversed.
Latch bolt
Right hand (or LHR) lock shown
for LHR exit device installation
Main Chassis
B
A
B
B
A
B
Screws
A-Machine screws
#10-24 UNC x 3/4"
B- Machine screws
#10-24 UNC x 3/4"
or wood screws
#10 x 1-1/4"
Hole (green label)
Hex key
Through square hole
Exit device location on door
must be flush and flat
Mounting Rail
Push Pad
NOTES:
a) Prepare door and door frame as per supplied templates and
instructions on Sheet 2.
b) If no trim is used, install lock body and exit device only. Level railing
assembly and attach railing end mounting bracket to door using
through bolts (not supplied) and machine screws.
Main Chassis Cover
c) If trim is used, refer to sheet 2 and to trim installation instructions
to prepare door for the appropriate trim.
TO CHANGE HAND OF EXIT DEVICE CHASSIS:
1. Device is factory pre-set as LHR
TOP
Lever
arm
BOTTOM
3. Rotate the chassis 180° and install the lever
arm and insert pin as shown
TOP
Pin
BOTTOM
End Cap
Rail Mounting
Bracket
Sliding Cover
LEFT HAND REVERSED (LHR) SHOWN
2. Knock out the pin in the direction (as shown), take
out the lever arm assembly
TOP
Lever
arm
BOTTOM
4. Device is converted to RHR
Lever
arm
9500M-INS-EN-2015-02
Pin
TOP
BOTTOM
1/2
