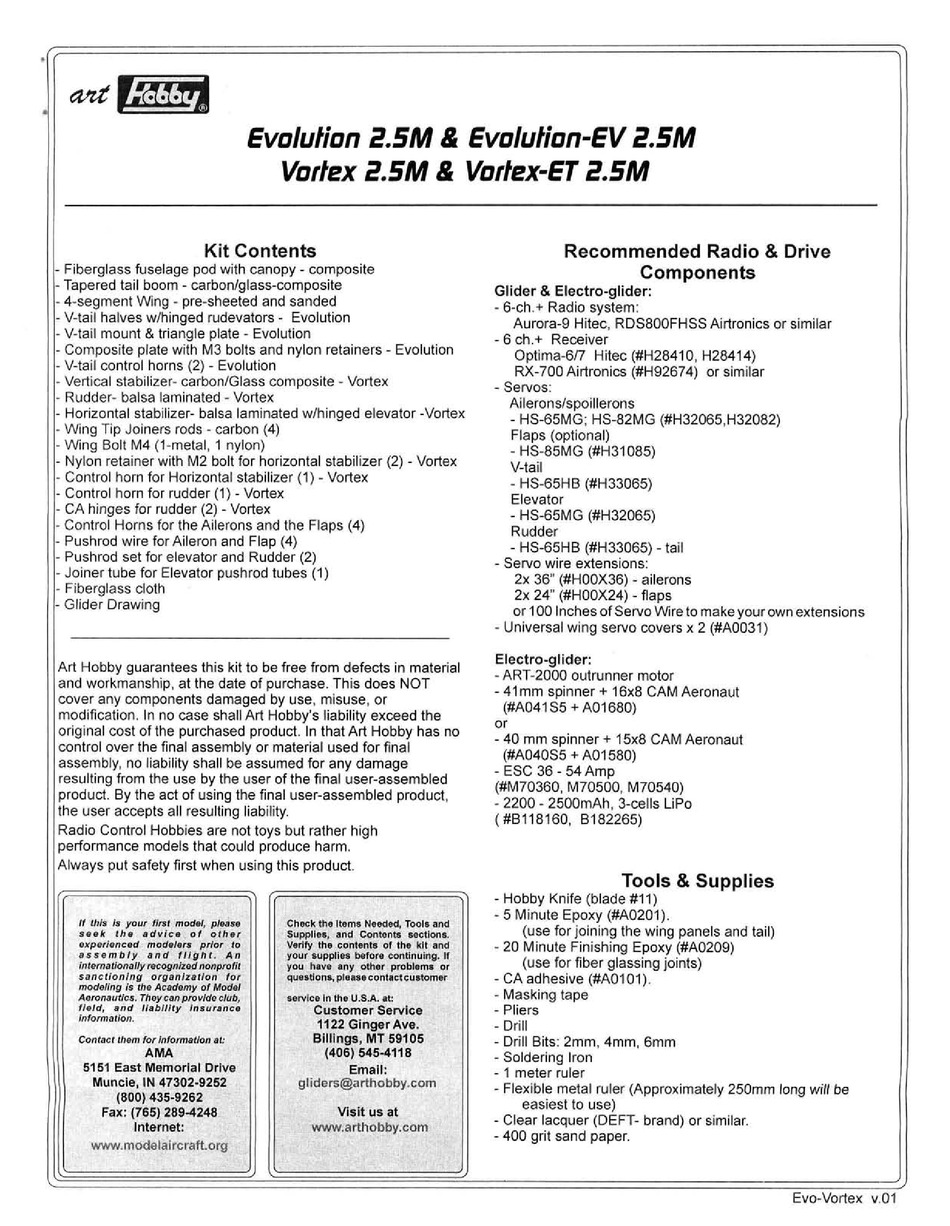

Art Hobby Evolulion 2.SM Manual

Evolulion 2.SM & Evo/ulion-EV 2.SM
Vortex 2.SM
&
Vor/ex-ET 2.SM
Kit Contents
- Fiberglass fuselage pod with canopy - composite
- Tapered tail boom - carbon/glass-composite
- 4-segment Wing - pre-sheeted and sanded
- V-tail halves w/hinged rudevators - Evolution
- V-tail mount
&
triangle plate - Evolution
- Composite plate with M3 bolts and nylon retainers - Evolution
- V-tail control horns (2) - Evolution
- Vertical stabilize r- carbon/Glass composite - Vortex
- Rudder- balsa laminated - Vortex
- Horizontal stabilizer- balsa laminated w/hinged elevator -Vortex
- Wing Tip Joiners rods - carbon (4)
- Wing Bolt M4 (1-metal, 1 nylon)
- Nylon retainer with M2 bolt for horizontal stabilizer (2) - Vortex
- Control horn for Horizontal stabilizer (1) - Vortex
- Control horn for rudder (1) - Vortex
- CA hinges for rudder (2) - Vortex
- Control Horns for the Ailerons and the Flaps (4)
- Pushrod wire for Aileron and Flap (4)
- Push rod set for elevator and Rudder (2)
- Joiner tube for Elevator pushrod tubes (1)
- Fiberglass cloth
- Glider Drawing
Art Hobby guarantees this kit to be free from defects in material
and workmanship, at the date of purchase. This does NOT
cover any components damaged by use, misuse, or
modification . In no case shall Art Hobby's liability exceed the
original cost of the purchased product. In that Art Hobby has no
control over the final assembly or material used for final
assembly, no liability shall be assumed for any damage
resulting from the use by the user of the final user-assembled
product. By the act of using the final user-assembled product,
the user accepts all resulting liability.
Radio Control Hobbies are not toys but rather high
performance models that could produce harm.
Always put safety first when using this product.
If this is your first 'mode/, please
seek Ihe adv,i c'e .. of
othe~
experienced . mopelers
prio~ ;
to
assembly and fHght. . ,A'n
internationally recognized nonpr9fil
sanctioning organlzatioq for.
modeling is Ihe Academy of Model
Aeronautics. They can provide club,
field, and liability insurance
information.
Contact them for information at:
AMA
5151 East Memorial Drive
Muncie, IN 47302·9252
(800) 435·9262
Fax: (765) 289·4248 .
Internet:
.
.
, w ww."'!odel,aircraft.org , ,:
Check the Items Needed, Tools and
Supplies,and Contents,
s~ctions.
V'lrify the . contents of the kit and
, your supplies before continuing. If
'you 'have " any Qther problems or
questions, please eontaefcustoiner
sei'vlee In the U.S.A. at:
. ., Customer Service
1122 'Ginger Ave.
Billings, MT 59105
(406) .545-4118
Email:
9 liders@arthobby.com
Visit us at
.:. wwW.arthobby.com
Recommended Radio & Drive
Components
Glider & Electro·glider:
- 6-ch.+ Radio system:
Aurora-9 Hitec, RDS800FHSS Airtronics or similar
- 6 ch .+ Receiver
Optima-6/7 Hitec (#H2841 0, H28414)
RX-700Airtronics (#H92674) or similar
- Servos:
Ailerons/spoillerons
- HS-65MG; HS-82MG (#H32065 ,H32082)
Flaps (optional)
- HS-85MG (#H31085)
V-tail
- HS-65HB (#H33065)
Elevator
- HS-65MG (#H32065)
Rudder
- HS-65HB (#H33065) - tail
- Servo wire extensions:
2x 36" (#HOOX36) - ailerons
2x 24" (#HOOX24) - flaps
or 100 Inches of Servo Wire to make your own extensions
- Universal wing servo covers x 2 (#A0031)
Electro·glider:
- ART-2000 outrunner motor
- 41 mm spinner + 16x8 CAM Aeronaut
(#A041 S5 + A01680)
or
- 40 mm spinner + 15x8 CAM Aeronaut
(#A040S5 + A01580)
- ESC 36 - 54 Amp
(#M70360 , M70500, M70540)
- 2200 - 2500mAh, 3-cells LiPo
(#B118160, B182265)
Tools & Supplies
- Hobby Knife (blade #11)
- 5 Minute Epoxy (#A0201) .
(use for joining the wing panels and tail)
- 20 Minute Finishing Epoxy (#A0209)
(use for fiber glassing joints)
- CA adhesive (#A0101).
- Masking tape
- Pliers
- Drill
- Drill Bits: 2mm, 4mm, 6mm
- Soldering Iron
- 1 meter ruler
- Flexible metal ruler (Approximately 250mm long will be
easiest to use)
- Clear lacquer (DEFT- brand) or similar.
- 400 grit sand paper.
Evo-Vortex v.01
