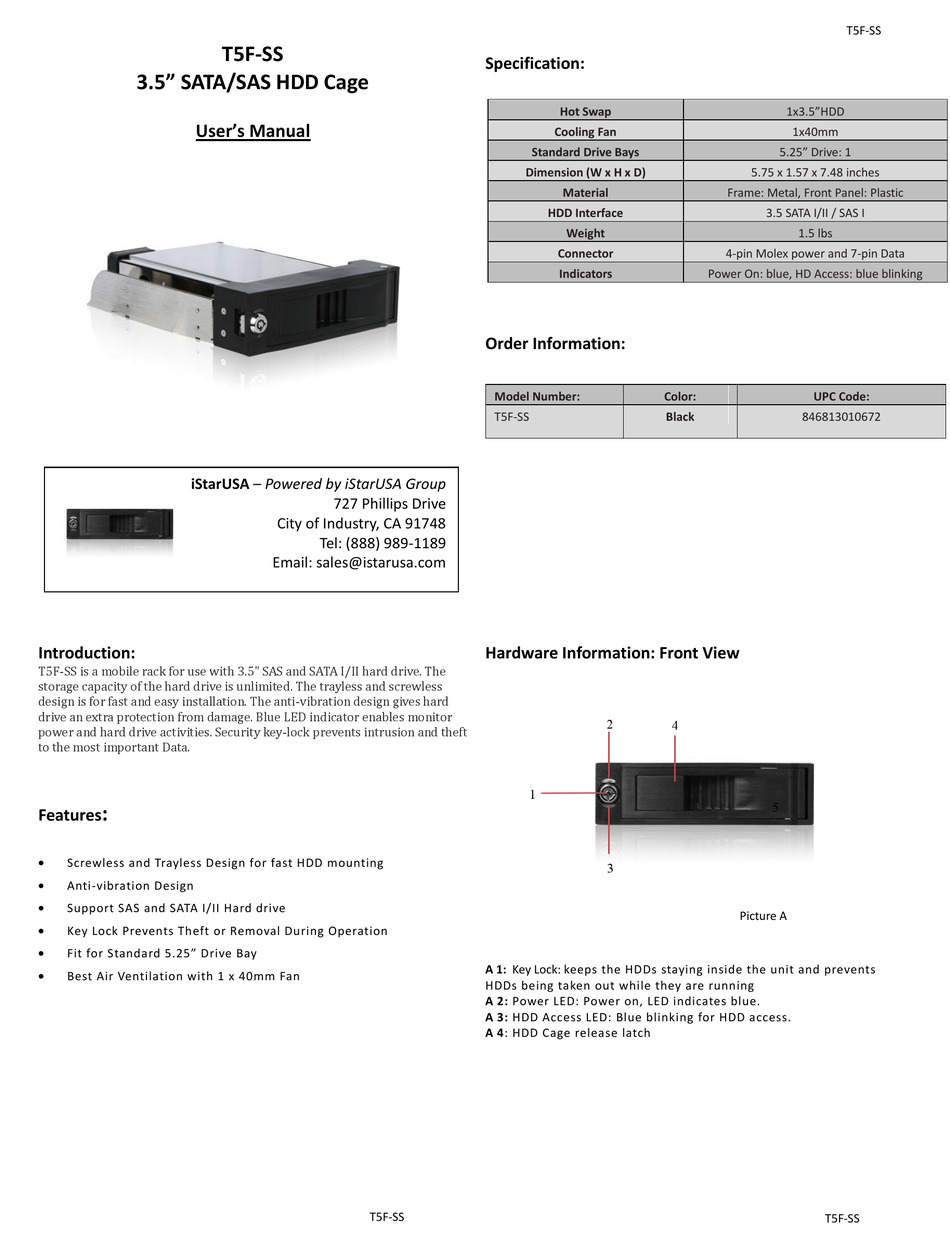

iStarUSA T5F-SS User Manual

3.5" SATA/SAS HDD Cage
User's Manual
iStarUSA – Powered by iStarUSA Group

Introduction:

T5F-SS is a mobile rack for use with 3.5" SAS and SATA I/II hard drive. The
storage capacity of the hard drive is unlimited. The trayless and screwless
design is for fast and easy installation. The anti-vibration design gives hard
drive an extra protection from damage. Blue LED indicator enables monitor
power and hard drive activities. Security key-lock prevents intrusion and theft
to the most important Data.
:

Features


Screwless and Trayless Design for fast HDD mounting

Anti-vibration Design

Support SAS and SATA I/II Hard drive

Key Lock Prevents Theft or Removal During Operation

Fit for Standard 5.25" Drive Bay

Best Air Ventilation with 1 x 40mm Fan
T5F-SS
727 Phillips Drive
City of Industry, CA 91748
Tel: (888) 989-1189
Email: sales@istarusa.com
T5F-SS

Specification:

Hot Swap
Cooling Fan
Standard Drive Bays
Dimension (W x H x D)
Material
HDD Interface
Weight
Connector
Indicators

Order Information:

Model Number: Color:
T5F-SS

Hardware Information: Front View

2
1
3
A 1: Key Lock: keeps the HDDs staying inside the unit and prevents
HDDs being taken out while they are running
A 2: Power LED: Power on, LED indicates blue.
A 3: HDD Access LED: Blue blinking for HDD access.
A 4: HDD Cage release latch
1x3.5"HDD
1x40mm
5.25" Drive: 1
5.75 x 1.57 x 7.48 inches
Frame: Metal, Front Panel: Plastic
3.5 SATA I/II / SAS I
1.5 lbs
4-pin Molex power and 7-pin Data
Power On: blue, HD Access: blue blinking
UPC Code:
Black 846813010672
4
5
Picture A
