Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit
1 General
These mounting instructions are the basis for the approval by ECBS, VdS, A2P (CNPP)- DNV, UL. Installation of the
lock to be performed exclusively in accordance with these instructions.
Guidelines of the national certification bodies are to be considered and complied with in addition.
Use high quality alkaline/manganese monobloc batteries only. Low quality batteries may cause oxidation which results in a
functional failure of the lock..
Avoid residual crystalline moisture in the cabinet (e.g. from varnishing) to make sure that electrical contact areas are not
attacked.
Make sure that the ingress of dirt or detergents (e.g. remaining fillers or cold cleaners) is prevented.
Do not grease/oil the lock or key.
It is recommended, that unauthorized persons have no access to security sensitive parts of the lock, also the door of the
safe, where the lock is installed, is open.

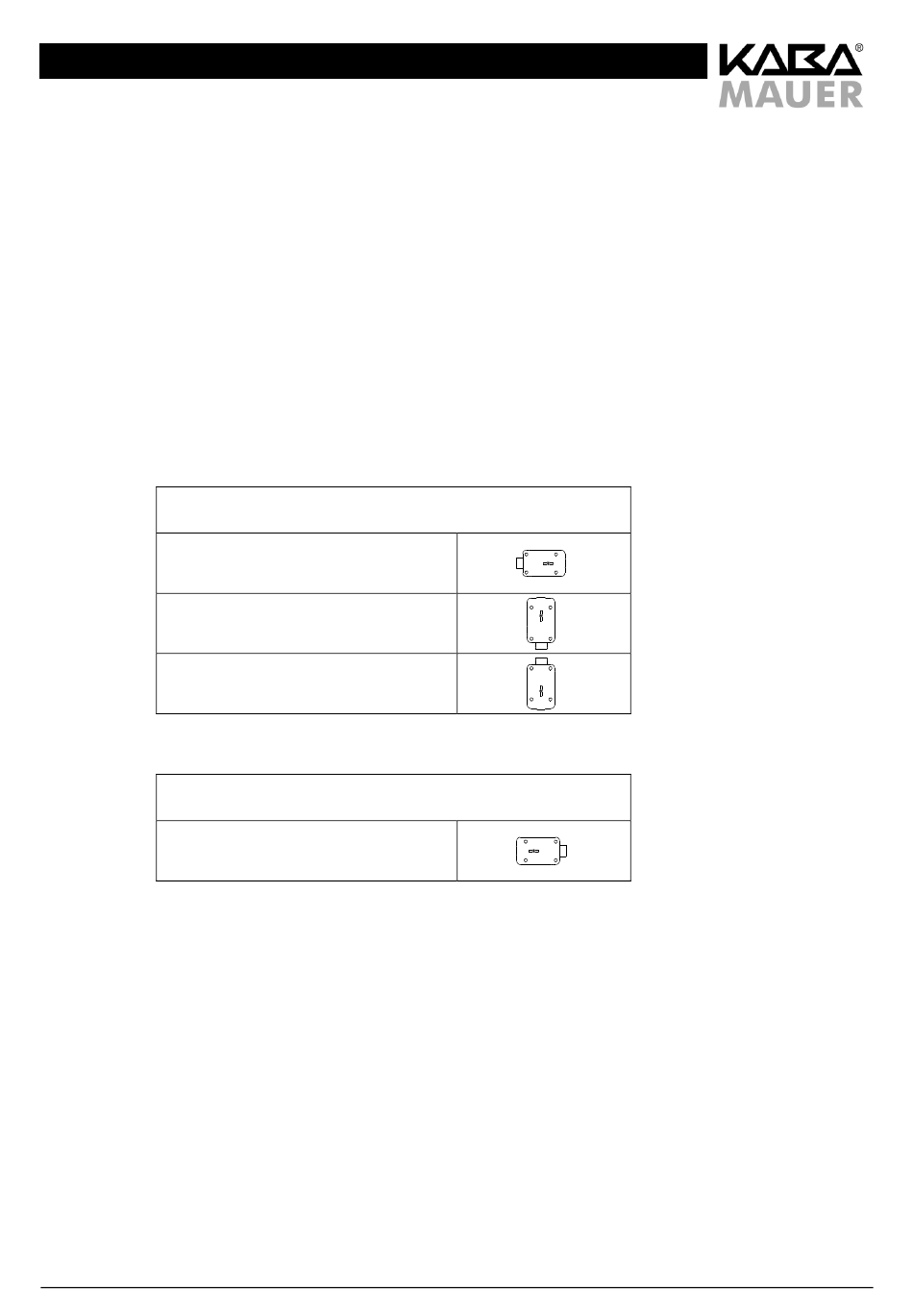

2 Mounting instructions for lock and control unit
RH version (standard version):
-
Bolt LH, keyhole horizontal
Bolt downwards, keyhole vertical
Bolt upwards, keyhole vertical
LH version
-
Bolt RH, keyhole horizontal
Any variation of the lock or key may result in functional trouble and must better not be done. All claims under guarantee and
warranty will expire in this case.
Lock fastening: Use of M6 steel socket head cap screws or BSW ¼" steel bolts. The length of engagement must
correspond to the applicable standards considering the thickness of the lock of 30 mm and the screwing height of the lock
case of 24 mm.
Fastening screws: minimum property class 4.8 and maximum property class 8.8.
Screws to be secured either by lock washer, flat spring, tooth lock washer, fan type lock washer considering the diameter
(d1) or to be cemented.
Screw tightening moment : minimum 5 Nm and maximum 6 Nm.
The bolt must be floating in installed condition.
Perfect function of the lock and of any additional connected or triggered systems (e.g. boltworks) must be warranted and
checked by specialists during installation of the lock.
The lock must be mounted in closed condition (bolt extended).
Lock mounting position
Lock mounting position
Revision level 15.02.2016
Page 1 of 19

Advertisement

loading
Need help?

Need help?

Do you have a question about the 82132 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kaba Mauer 82132

  • Page 1 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 1 General These mounting instructions are the basis for the approval by ECBS, VdS, A2P (CNPP)- DNV, UL. Installation of the lock to be performed exclusively in accordance with these instructions.
  • Page 2 For installation and adjustment of the lock on the door, make sure that the key can be inserted into the lock without applying force and without jamming. This can be achieved by mounting the lock according to the following pattern of mounting holes (Fig. 3). For further lock dimensions please refer to the Kaba Mauer Catalogue Sheet. 66,7 Fig.
  • Page 3 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit Technical data:  Lift height of bolt 12 mm  Bolt extension in locked-out condition: approx. 14 mm  Bolt width: 25,4 mm; Bolt height: 15 mm  The maximum allowable force acting on the key bolt in opposite direction to the direction of locking, the maximum locking force and the lateral load acting on the bolt, correspond to 1 KN and should not exceed this value.
  • Page 4 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit  Insert actuating spindle as far as it will go with the bored end ahead (locking function warranted only this way).  Cutting to size of the actuating spindle (before assembly): the required length results from the "clearance between mounting plane of lock to mounting plane of control unit"...
  • Page 5 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit  Fasten spindle and knob by means of an Allan key 2.0 mm.  Adjustment of the assembly is correct once the bar dolly after slight clockwise turning jumps back by resilience to its horizontal home position.
  • Page 6 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 4 Crimping of the 4-pole battery connector (version with battery compartment integrated in the door armature Optioncode IBF)  Route cable through provided feed-through opening:  Plug for keypad is factory crimped ...
  • Page 7 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 5 Crimping of the 6-pole battery connector (version with battery compartment integrated in the door armature)  Route cable through provided feed-through opening:  Plug for keypad is factory crimped ...
  • Page 8: Final Check

    Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 6 Final check  Bei in den Beschlag integriertem Batteriefach (option code IBF) wird durch das Einlegen der Batterie der Batteriewechselkontakt aktiviert. Every time the lock is opened a constant acoustic signal will be heard accompanied by alternate red/green flashing LED.
  • Page 9: Mounting Drawings

    Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7 Mounting drawings 7.1 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TOU, BSW) Lock mounting position Control unit mounting position Cable gland ⍁ 10 mm or Ø 11,25 ± 0,05 mm...
  • Page 10 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.2 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TRL, BSW) Lock mounting position Control unit mounting position 1 35,5 Door penetrations Cable glands Adhesive buffer ⍁ 10 mm or (self stick) Ø...
  • Page 11 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.3 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TUO, BSW) Lock mounting position Control unit mounting position Cable gland ⍁ 10 mm or Ø 11,25 ± 0,05 mm...
  • Page 12 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.4 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TLR, BSW) Lock mounting position Control unit mounting position 1 35,5 Door penetrations Adhesive buffer Cable gland (self stick) ⍁ 10 mm or Ø 11,25 ±...
  • Page 13 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.5 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TRS, BSS, bolt downwards) Lock mounting position Control unit mounting position 1 3 5,5 Door penetrations Adhesive buffer Cable gland (self stick) ⍁...
  • Page 14 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.6 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TRS, BSS, bolt upwards) Lock mounting position Control unit mounting position 1 35,5 Door penetrations Adhesive buffer Cable gland (self stick) ⍁...
  • Page 15 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.7 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TLS, BSS, bolt downwards) Lock mounting position Control unit mounting position 1 35,5 Door penetrations Cable gland Adhesive buffer (self stick) ⍁...
  • Page 16 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.8 82132/33 Code-Combi B with aluminium control unit (option codes BAS, TLS, BSS, bolt upwards) Lock mounting position Control unit mounting position 1 35,5 Door penetrations Adhesive buffer (self stick) Cable gland ⍁...
  • Page 17 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.9 82132/33 Code-Combi B with aluminium control unit (option codes BAK, TRL) Lock mounting position Control unit mounting position 1 00 1 35,5 O 1 8 Door penetrations Cable gland ⍁ 10 mm or Ø 11,25 ± 0,05 mm...
  • Page 18 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.10 82132/33 Code-Combi B with aluminium control unit (option codes BAH, TOU, BSW) Lock mounting position Control unit mounting position Cable gland ⍁ 10 mm or Ø 11,25 ± 0,05 mm...
  • Page 19 Mounting Instructions 82132/33 Code-Combi B with Aluminium Control Unit 7.11 82132/33 Code-Combi B with aluminium control unit Unter dem Punkt 6 Montageskizzen (Seite 6 bis 15) ist das Kabeldurchführungsloch (max. 100 mm²) zeichnerisch idealerweise positioniert. Abweichend davon wird es den Schrank-, Tresor und Anlagenbauern ermöglicht, das Kabeldurchführungsloch (siehe unten Abb.
