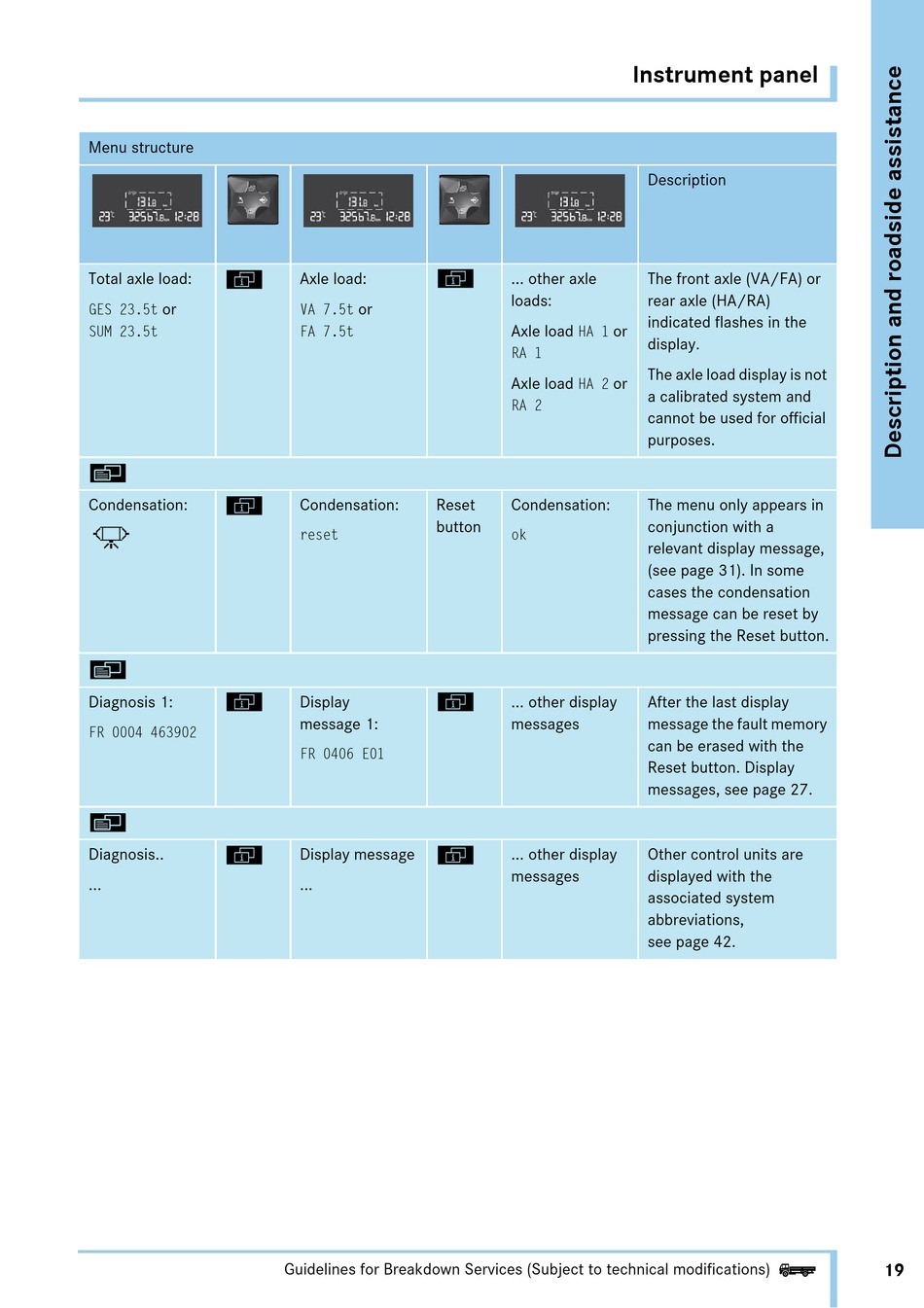

Menu structure
q
Total axle load:
GES 23.5t or
SUM 23.5t
è
q
Condensation:
Æ
è
q
Diagnosis 1:
FR 0004 463902
è
q
Diagnosis..
...
q
Axle load:
VA 7.5t or
FA 7.5t
Condensation: Reset
button
reset
q
Display
message 1:
FR 0406 E01
q
Display message
...
Guidelines for Breakdown Services (Subject to technical modifications)
Instrument panel
Description
... other axle The front axle (VA/FA) or
loads: rear axle (HA/RA)
indicated flashes in the
Axle load HA 1 or
display.
RA 1
The axle load display is not
Axle load HA 2 or
a calibrated system and
RA 2
cannot be used for official
purposes.
Condensation: The menu only appears in
conjunction with a
ok
relevant display message,
(see page 31). In some
cases the condensation
message can be reset by
pressing the Reset button.
... other display After the last display
messages message the fault memory
can be erased with the
Reset button. Display
messages, see page 27.
... other display Other control units are
messages displayed with the
associated system
abbreviations,
see page 42.
