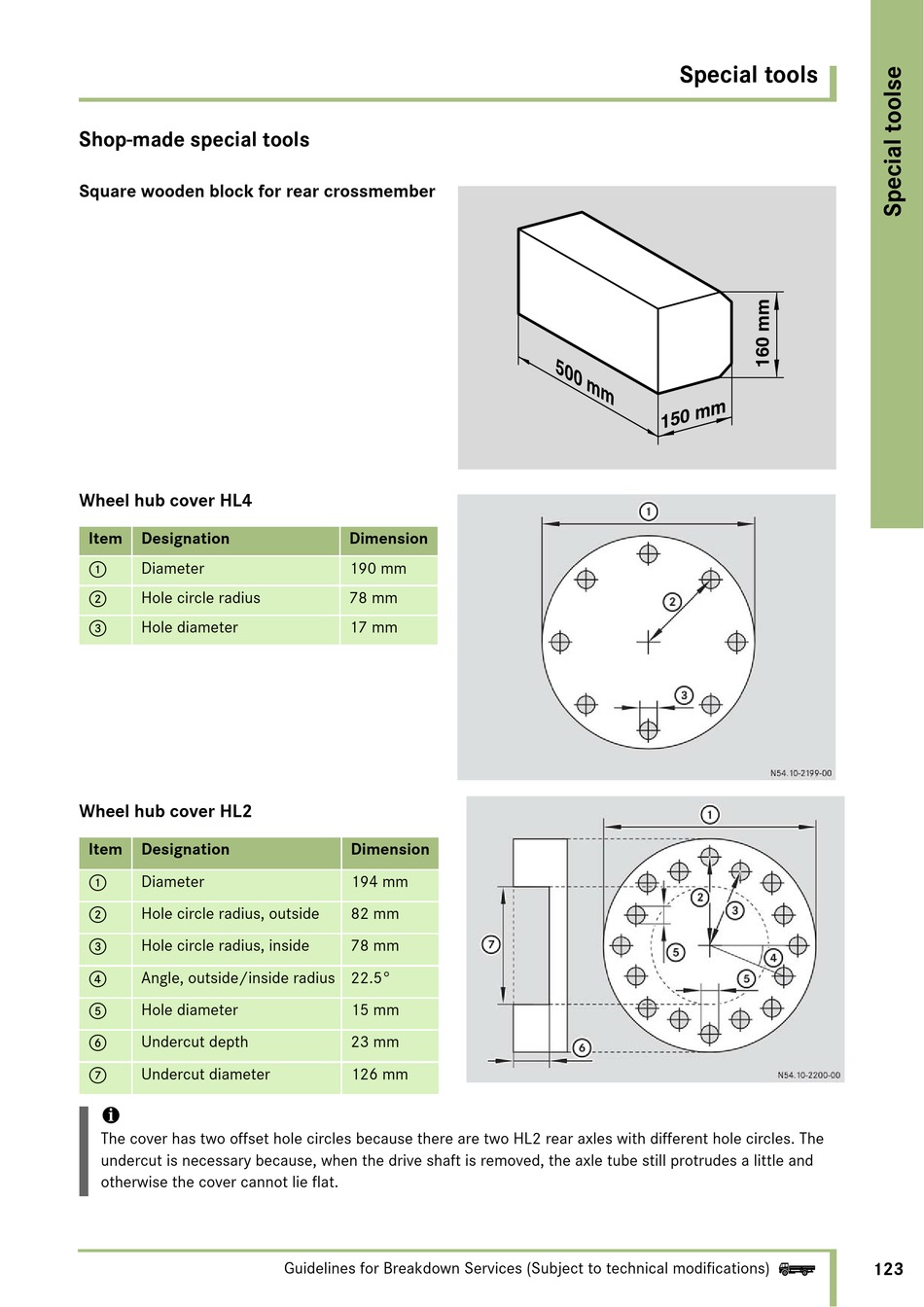

Shop-made special tools
Square wooden block for rear crossmember
Wheel hub cover HL4
Item Designation
1
Diameter
2
Hole circle radius
3
Hole diameter
Wheel hub cover HL2
Item Designation
1
Diameter
2
Hole circle radius, outside
3
Hole circle radius, inside
4
Angle, outside/inside radius 22.5°
5
Hole diameter
6
Undercut depth
7
Undercut diameter
i
The cover has two offset hole circles because there are two HL2 rear axles with different hole circles. The
undercut is necessary because, when the drive shaft is removed, the axle tube still protrudes a little and
otherwise the cover cannot lie flat.
Dimension
190 mm
78 mm
17 mm
Dimension
194 mm
82 mm
78 mm
15 mm
23 mm
126 mm
Guidelines for Breakdown Services (Subject to technical modifications)
