Page 1: Instruction Manual
Instruction Manual X-Premium Professional Automotive Rear Seat Entertainment System... -
Page 2: Fcc Statement
X-Premium Instruction Manual Regulatory Statements FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 3 X-Premium Instruction Manual IC Caution: RSS-Gen Issue 5 April 2018”&”CNR-Gen 5e April 2018: • English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 4 X-Premium Instruction Manual This device meets the EU requirements (2014/53/EU) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. Google, Android, Google Play, Youtube and other marks are trademarks of Google LLC. WEEE Compliance Statement This symbol on the product or on the packaging indicates that this can not be disposed of as household waste.
-
Page 5: Safety Instructions
X-Premium Instruction Manual Safety Instructions Read through this manual carefully and observe the following safety instructions before operating this device. • Use only the car power cable and accessories supplied by dealer. Use of unauthorized accessories may void the warranty. •... -
Page 6: Table Of Contents
X-Premium Instruction Manual Contents Product Definition ..................8 Package Contents ................... 9 X-Premium (X1/X2) ..................9 X-Premium (X1+X2) ................10 Detailed Specifications ...................11 Media Support List ..................13 USB Format: .................... 13 DVD Format: .................... 13 Product Overview ..................14 Player ....................... 14 Stanchion Mount .................. - Page 7 X-Premium Instruction Manual Using the DVD Player (X1 Model Only) ........... 31 Using the Media Menu ................32 Accessing Apps ..................... 36 Configuring the System Settings ..............37 Launcher Setting ..................38 EN-7...
-
Page 8: Product Definition
X-Premium Instruction Manual Product Definition “X-Premium” is the newest technology Rear Seat Entertainment (RSE) product. It conforms with the ECE R21/R17 quality certification that ensures you a safe and secure entertainment experience. There are two models of “X-Premium”, X1 and X2. The major difference between those models is that X1 is equipped with a DVD player while X2 does not include a DVD player. -
Page 9: Package Contents
X-Premium Instruction Manual Package Contents The following items come with your package. If any of them is missing, please contact your local dealer. X-Premium (X1/X2) Player Stanchion Mount Remote Control Carrying Bag T-cable 1 T-cable Quick Start Guide 12V/5A 5V/2.4A Quick Start Guide Cigarette Charger Cable Lock Hex Key L-wrench... -

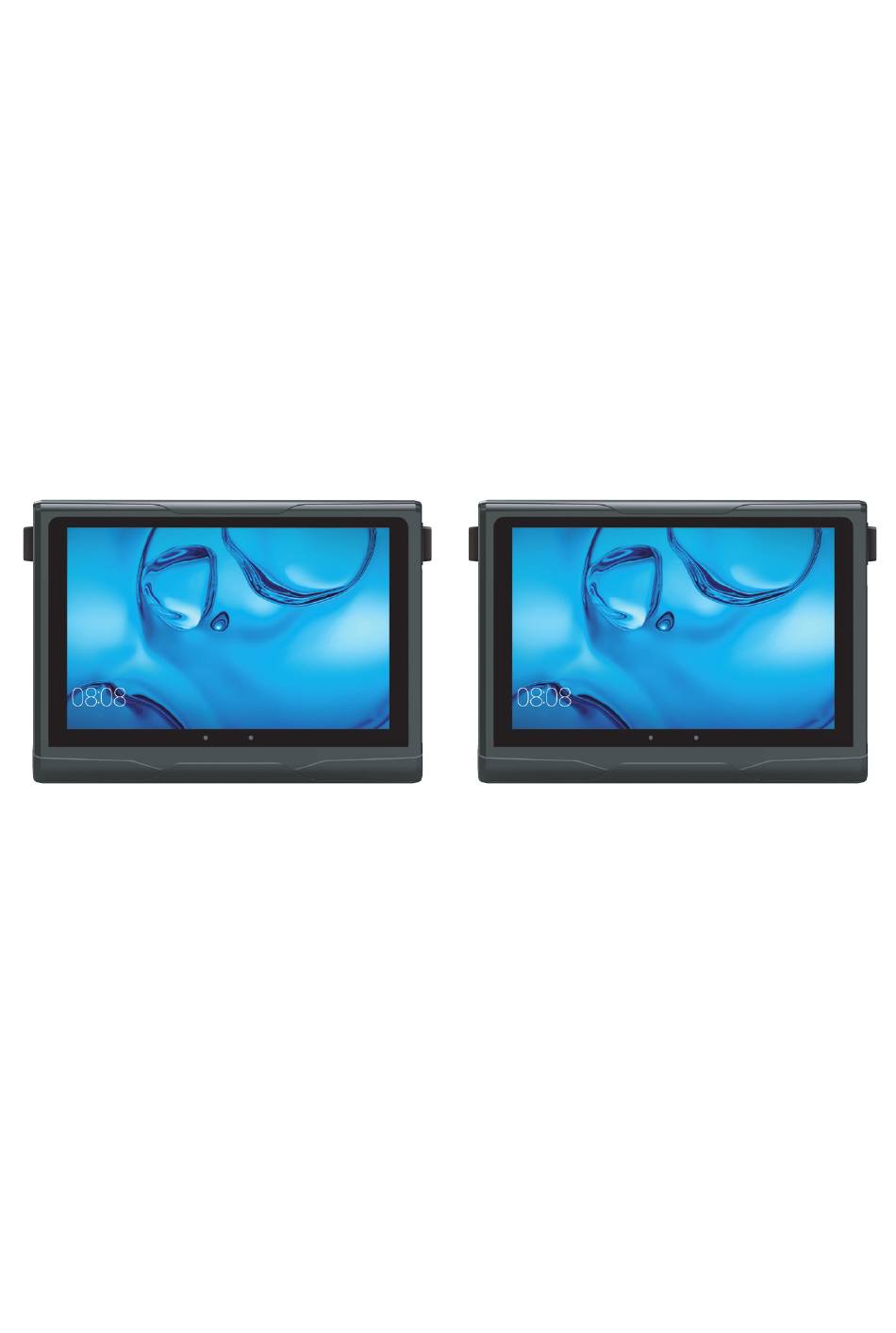

Page 10: X-Premium (X1+X2)
X-Premium Instruction Manual X-Premium (X1+X2) Players Quick Start Guide Stanchion Mounts Remote Control Carrying Bag Quick Start Guide 12V/5A 5V/2.4A T-cable 1 T-cable 2 T-cable 3 Cigarette Cable Lock Hex Key Charger L-wrench Note: ♦ The actual products might appear slightly different from illustration shown above. ♦... -
Page 11: Detailed Specifications
X-Premium Instruction Manual Detailed Specifications Description Item 10.1” Active Matrix 10.1” Active Matrix Display Color TFT LCD Color TFT LCD Aspect Ratio 16:9 16:9 Panel Resolution 1280 x 800 1280 x 800 Luminance 200nits (typical) 200nits (typical) DVD, DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-R Supported Disc DL, DVD-RW DL,... - Page 12 X-Premium Instruction Manual Description Item -5°C to 50°C -5°C to 50°C functional but may not functional but may not Function Temperature meet specifications meet specifications (any deviations must (any deviations must be recoverable) be recoverable) Storage Temperature -20°C to 60°C -20°C to 60°C Housing Dimension 267 x 195 x 32 mm...
-
Page 13: Media Support List
X-Premium Instruction Manual Media Support List USB Format: Video Format Support • • H.263 • • H.264 • • MPEG1/2/4 Music Support • Photo Support • JPEG • DVD Format: Support • MPEG: MPEG-1 (ISO/IEC 11172-2) • MPEG-2 (ISO/IEC 13818-2) •... -
Page 14: Product Overview
X-Premium Instruction Manual Product Overview Player X1 Front Panel Volume (up) key Volume (down) key Power key 0.3MP Camera 2MP Camera X2 Front Panel Volume (up) key Volume (down) key Power key 0.3MP Camera 2MP Camera EN-14... -
Page 15: Stanchion Mount
X-Premium Instruction Manual X1 Rear Panel HDMI port Microphone USB port Headphone jack DC IN jack Speakers Open button X2 Rear Panel HDMI port Microphone USB port Headphone jack DC IN jack Speakers Stanchion Mount Locking latches Bracket Latch pads Backplate DC IN jack EN-15... -
Page 16: Remote Control
X-Premium Instruction Manual Remote Control Functions Overview Standby button Enter/exit standby mode. Home button Access the Home screen. Back button Return to the previous Navigation buttons screen or menu. Navigate through menus and choose an item. OK button Confirm the selection or enter the submenu. -
Page 17: Getting Started
X-Premium Instruction Manual Getting Started Installing X-Premium in Vehicle This device is specifically designed to be mounted behind the driver and/or passenger seat(s). 1 Remove the headrest(s) and carefully route the cable(s). For X1/X2 Route the T-cable into the hole of the pole on the seat. EN-17... - Page 18 X-Premium Instruction Manual For X1+X2 Route the T-cable 2 and T-cable 3 into the holes of the poles on each side of the seat. Then from the bottom of the seat, connect both ends of the T-cable 2 and T-cable 3 to the T-cable 1 connectors. 2 Replace the headrest(s) into place.
- Page 19 X-Premium Instruction Manual 4 Position the bracket on the bars of the headrest. Fasten the screws on both locking latches to fix the bracket firmly on the bars. 5 Connect the player with the AV/Power cable (one end of the car power cable) as shown in the following illustration.
-
Page 20: Basic Connection
X-Premium Instruction Manual 7 Adjust the player to the desired viewing angle. Note: ♦ To remove the player from the stanchion mount, pull and hold the release latch upwards and then slide the player off to disengage the connection. Basic Connection For proper connection method, refer to the illustration below. -
Page 21: Turning The Power On/Off
X-Premium Instruction Manual Turning the Power On/Off Make sure the cigarette charger is properly connected to the cigarette lighter socket of your vehicle. Turn the Power On Press the key on the player to turn this device on. Note: ♦ Press the button on the remote control to allow the device to enter or to exit the standby mode. -
Page 22: Making Connection
X-Premium Instruction Manual Making Connection This section guides you on how to insert a DVD disc and connect your X-Premium to an external device. Note: ♦ Do not unplug the USB flash drive or disconnect the cable connection during the file playback. -
Page 23: Connect To Hdmi Input Source
X-Premium Instruction Manual Connect to HDMI Input Source You can use this device to play your favorite multimedia content (videos, pictures, and music) from your portable device (i.e. smartphone or tablet). 1 Connect one end of the HDMI cable to the HDMI port of the player. 2 Connect the other end of the HDMI cable to the HDMI port of the portable device. -
Page 24: Monitor Sharing
X-Premium Instruction Manual Press the button repeatedly to toggle the IR headphones channel. IR Channel A IR Channel B IR Off Note: ♦ When the headphones are connected, the speakers of X-Premium will be muted. ♦ When the IR headphones are connected, the built-in speakers are not muted. To adjust the volume level of the speakers, do the following: B On the player, you can adjust the volume level by pressing the VOL- or VOL+ key on the device or pressing the volume button (... - Page 25 X-Premium Instruction Manual 2 Tap Listen. “Waiting for connection invitation from other devices.” note appears on the screen of the receiver player. 3 On the transmitter player, tap on the name of the receiver player (for example, Android_30b0) on the Home screen > Mirror > Transmitter > Screen Output menu.
-
Page 26: Screen Mirroring With Your Smartphone
X-Premium Instruction Manual Both players will display the same screen. 6 To finish mirroring the screen, on the transmitter player, tap DISCONNECT at the Home screen > Mirror > Transmitter > Screen Output prompt. Screen Mirroring With Your Smartphone With this function, you can mirror the content from your Android portable device (i.e. - Page 27 X-Premium Instruction Manual 4 Tap Listen. “Waiting for connection invitation from other devices.” note appears on the screen of the player. 5 On your portable device, enable the “Cast” function. Then tap on the player name. 6 On the player, tap ACCEPT to confirm the mirroring request. EN-27...
- Page 28 X-Premium Instruction Manual Once connected, your smartphone display will be mirrored on the screen. Note: ♦ The screen mirroring is not supported in iOS devices. ♦ The available “Cast” function may vary depending on the device UI. 7 To finish mirroring the screen, on your portable device, tap on the player and then tap DISCONNECT.
-
Page 29: Using The X-Premium
X-Premium Instruction Manual Using the X-Premium Navigating the Home Screen After powering on the player, you will see the Home screen. The Home screen shortcuts slightly vary depending on the model. Google Search HDMI-IN menu Refer to page 23. Screen Mirroring DVD menu Refer to pages Refer to page 31. -
Page 30: Adjusting The Volume Level
X-Premium Instruction Manual ♦ When you need to input data, the on-screen keyboard opens automatically. Adjusting the Volume Level To adjust the volume level, do the following: • Press the button on the remote control or press the VOL- key on the player to decrease the volume level. -
Page 31: Using The Dvd Player (X1 Model Only)
X-Premium Instruction Manual Using the DVD Player (X1 Model Only) To play media content saved to a DVD, perform the following: 1 Place a DVD disc to the player. Refer to page 22. 2 Tap DVD on the Home screen. The DVD playback starts automatically. 3 During the playback, tap anywhere on the screen to view and access the playback controls: Note:... -
Page 32: Using The Media Menu
X-Premium Instruction Manual • : Set the playback repeat mode. Tap repeatedly to toggle between: - For DVD: CHAPTER, TITLE, or ALL. - For CD/VCD: TRACK or ALL. - For MP3: SHUFFLE, SINGLE, ONE, or FOLDER. • Menu: Return to the DVD root menu or to the VCD PBC menu. • Title: Select a subtitle language programmed on the DVD (if available). -
Page 33: Playing Music
X-Premium Instruction Manual Playing Videos To play videos, perform the following: 1 In Videos menu, swipe the screen to the left or to the right to select your preferred video. Then tap on the video to play it. The video playback starts automatically. Note: ♦... - Page 34 X-Premium Instruction Manual • Genres: View and play tracks by genres. • Artists: View and play tracks by artists. • Tracks: View all tracks. After you have selected the track, tap on it to start the playback. Note: ♦ to open the help center and add or remove app shortcuts. 2 During the playback, tap anywhere on the screen to view and access the playback controls: Note:...
- Page 35 X-Premium Instruction Manual Note: ♦ You can control the music playback also in Android Quick Settings menu. Simply swipe the screen from up to down and use the playback controls directly or tap on the track to access the Now Playing menu. Viewing Photos To view photos, perform the following: 1 In the Photos menu, select the album or photo that you want to view.
-
Page 36: Accessing Apps
X-Premium Instruction Manual Accessing Apps A complete list of all apps that are installed on the player, can be viewed and accessed on the Apps screen. To open the Apps screen, perform the following: 1 On the Home screen, tap Apps. 2 Do any of the following: •... -
Page 37: Configuring The System Settings
X-Premium Instruction Manual Configuring the System Settings To access the Settings menu, tap Settings on the Home screen. The system settings are described in the following table: Menu Option Description Configure the Wi-Fi settings, view data usage, Network & Internet configure hotspot and tethering settings, setup Virtual Private Network (VPN), and enable airplane mode. -
Page 38: Launcher Setting
X-Premium Instruction Manual Launcher Setting IMPORTANT! ♦ If you upgrade the system or reset all the settings to the factory defaults, follow the steps in this section to set the device back to the original operation interface (launcher). Step 1: After system upgrade or reset: a) Start the device to open the Google Default Launcher. - Page 39 X-Premium Instruction Manual Step 3: a) Tap Advanced > Default apps to access the default apps configuration menu. Step 4: a) Tap Home app to set the default startup app. Step 5: a) Tap X-PREMIUM to set it as the default startup app. b) Close the Settings menu.
- Page 40 X-Premium Instruction Manual Step 6: The Home screen opens automatically. Note: ♦ The next time you start the device, the Home screen is opened automatically until you upgrade or reset the system again. After the next upgrade or reset, please follow the steps in this section to set the default startup app. ♦...
