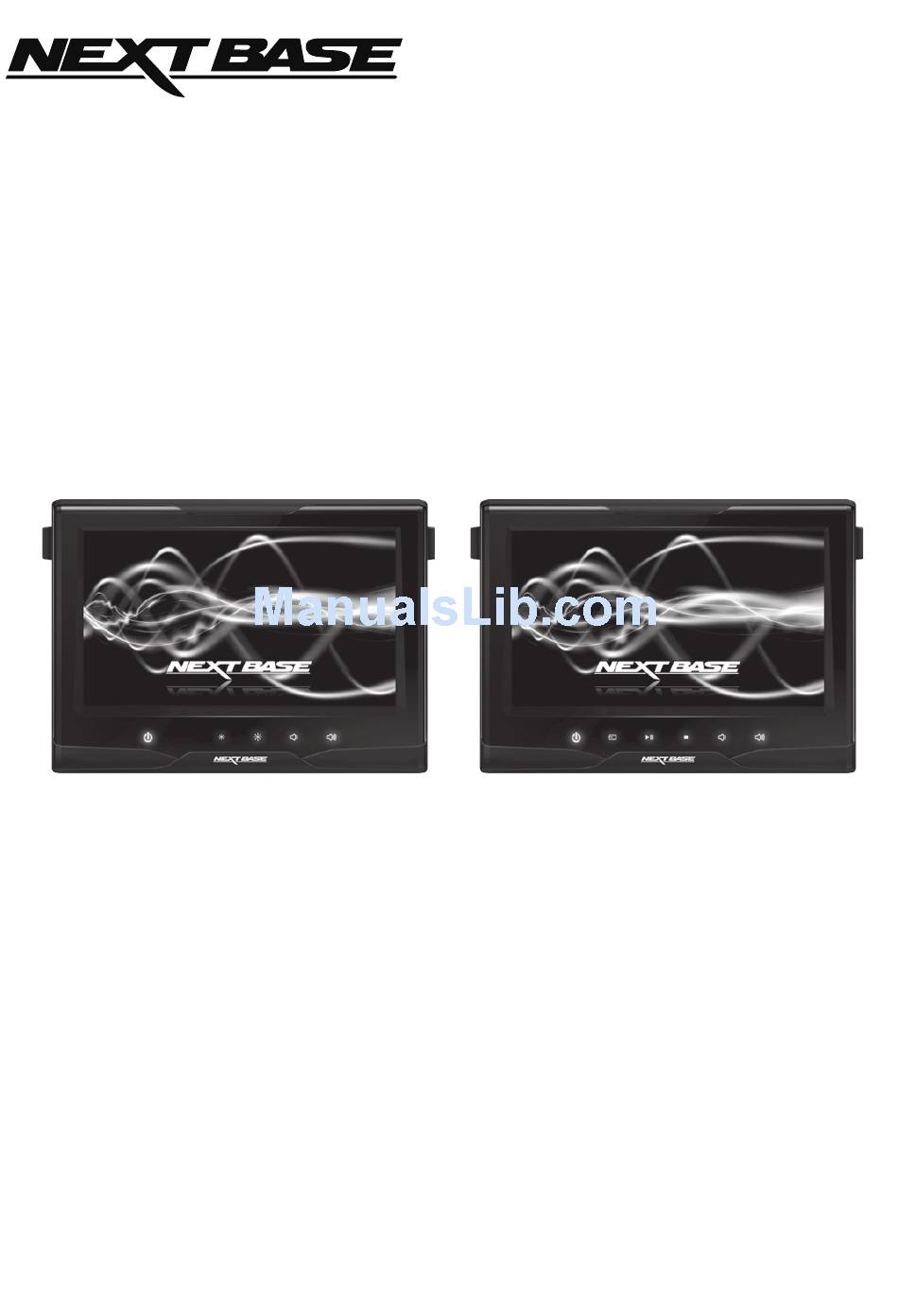

Page 1: Instruction Manual
Instruction Manual Duo Cinema Professional Automotive Rear Seat Entertainment System... -
Page 2: Fcc Statement
Duo Cinema Instruction Manual Regulatory Statements FCC Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Safety Instructions
Read through this manual carefully and observe the following safety instructions before operating this device. • Use only the car power cable and accessories supplied by NEXTBASE dealer. Use of unauthorized accessories may void the warranty. • Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat. -
Page 4: Table Of Contents
Remote Control ....................8 Functions Overview ................... 8 Replacing the Battery ................8 Getting Started ....................9 Installing Duo Cinema in Vehicle ..............9 Turning the Power On/Off ................11 Turn the Power On..................11 Turn the Power Off ..................11 Making Connection ..................12 Insert the DVD Disc ................. -
Page 5: Introduction
Duo Cinema Instruction Manual Introduction NEXTBASE “Duo Cinema” is a new dual-screen rear seat car entertainment system that will revolutionize the way we view in car entertainment. Duo Cinema has been designed to keep passengers entertained on the move with the greatest of ease. -
Page 6: Product Overview
Duo Cinema Instruction Manual Product Overview Player IR Headphone LEDs Play/Pause Stop key Source key Volume (Down) key Power key Volume (Up) key Mount slot HDMI1 port HDMI2 port USB port Headphone jack Speakers DC IN jack Open button EN-6... -

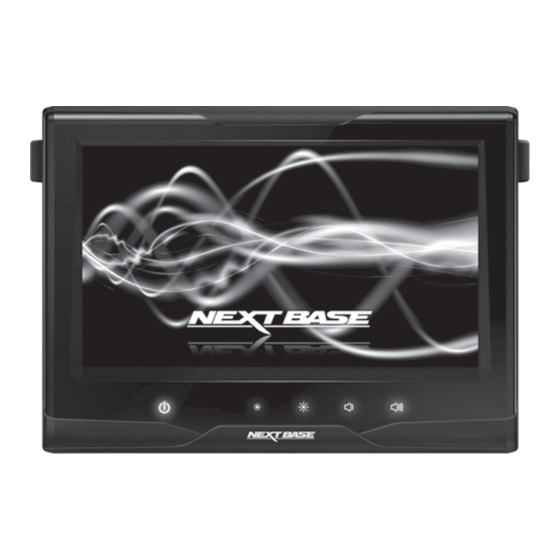

Page 7: Monitor
Duo Cinema Instruction Manual Monitor Backlight (Up) key Backlight (Down) key Volume (Down) key Power key Volume (Up) key Mount slot Speakers Headphone jack Stanchion Mounts Locking latches Bracket Backplate DC IN jack AV IN port Latch pads AV IN port... -
Page 8: Remote Control
Duo Cinema Instruction Manual Remote Control Functions Overview IR Headphones button Function button Switch the IR headphones channel. Access the Function menu. Power button Turn this device on/off. Setup button Access the Setup menu. Source button Navigation buttons Switch the input source. -
Page 9: Getting Started
Duo Cinema Instruction Manual Getting Started Installing Duo Cinema in Vehicle This device is specifically designed to be mounted behind the driver and passenger seats. 1 Remove the screws to release both locking latches on the stanchion mount. 2 Position the bracket on the bars of the headrest. Fasten the screws on both locking latches to fix the bracket firmly on the bars. - Page 10 Duo Cinema Instruction Manual 4 Slide the mount slot of the player into the backplate of the stanchion mount fully until it clicks into place. Repeat the same procedure to install the monitor on the LEFT headrest. 5 Adjust the player/monitor to the desired viewing angle.
-
Page 11: Turning The Power On/Off
Duo Cinema Instruction Manual Turning the Power On/Off Use only the supplied car power cable to power on this device. Note: ♦ The supplied car power cable is for 12VDC vehicles usage only. If the player is used in a 24VDC vehicle, it may cause damage that is not covered by warranty. -
Page 12: Making Connection
Duo Cinema Instruction Manual Making Connection This section guides you on how to insert a DVD disc and connect your Duo Cinema to an external device. Note: ♦ Do not unplug the USB flash drive or disconnect the cable connection during the file playback. -
Page 13: Connect To Hdmi Input Source
Duo Cinema Instruction Manual Connect to HDMI Input Source You can use this device to play your favorite multimedia content (videos, pictures, and music) from your portable device (i.e. smartphone or tablet). 1 Connect one end of the HDMI cable to the HDMI1/HDMI2 port of the player. -
Page 14: Connect Headphones
Duo Cinema Instruction Manual Connect Headphones Duo Cinema is equipped with built-in speakers. However, you may also use a set of headphones for personal listening. To use headphones, just plug in your headphone cable into the headphone jack of the player and/or monitor. -
Page 15: Configuring The Settings
Duo Cinema Instruction Manual Configuring the Settings General Operations Switch the Input Source By default, this device is in DVD mode when it is turned on. To switch the input source, perform the following: Source 1 Press the button. 2 Press the button to select the desired input source. -
Page 16: Using The Function Menu
Duo Cinema Instruction Manual Using the Function Menu To access the Function menu during playback, perform the following: 1 Press the button to bring up the Function menu. 2 Use the , or button to select the desired function. 3 Press the button to confirm the selection. -
Page 17: Adjusting The Screen Brightness
Duo Cinema Instruction Manual Adjusting the Volume Level To adjust the volume level, do the following: • Press the button on the remote control or touch the key on the player/monitor to decrease the volume level. • Press the button on the remote control... -
Page 18: Configuring The Settings
Duo Cinema Instruction Manual Configuring the Settings DVD Menu (DVD/USB input source only) Setup 1 Press the button to bring up the main menu. DVD Menu 2 Press the button to select DVD Menu. Then press the button to enter DVD Menu. - Page 19 Duo Cinema Instruction Manual The following menu options are available in DVD Menu: Menu Option Description General Audio Video Preference - - General Setup Page - - TV Display 4:3 Panscan Angle Mark 4:3 Letter Box Screen Saver 16:9 Widescreen...
- Page 20 Duo Cinema Instruction Manual Menu Option Description General Audio Video Preference - - Video Setup Page - - Resolution AUTO 480I 480P27 720P60 Video 576I 576P27 720P50 Resolution Select the video resolution. General Audio Video Preference - - Preference Page - -...
-
Page 21: Screen Menu
Duo Cinema Instruction Manual Screen Menu 1 Press the button to bring up the main menu. Note: ♦ For HDMI input source, skip Step 2. 2 Press the button to select Screen Menu. Then press the button to enter Screen Menu.
