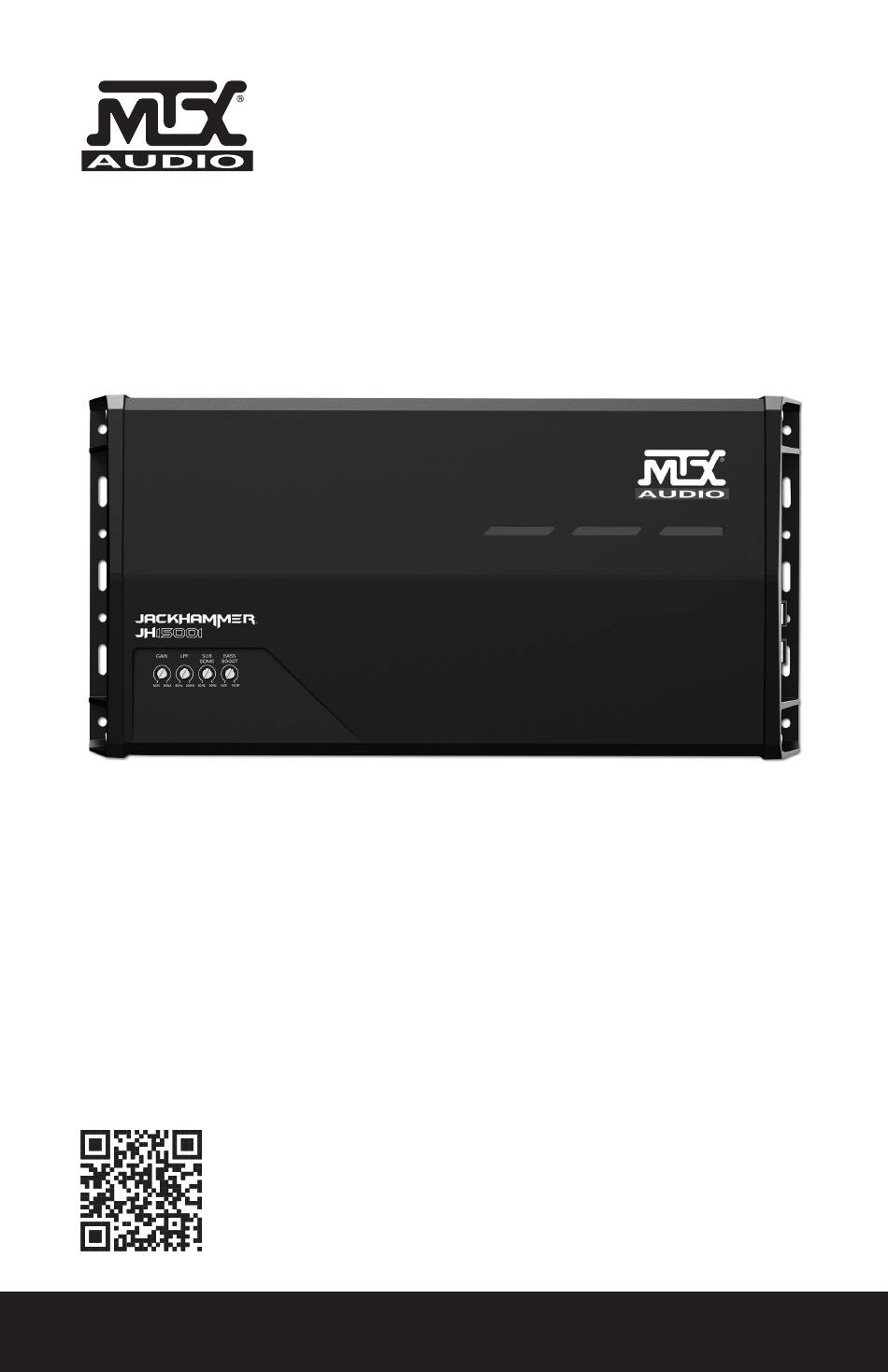

- Page 1 JACKHAMMER SERIES AMPLIFIER OWNER’S MANUAL Use your smartphone to scan or visit youtube.com/user/MTXAudioUSA to learn how to properly install this amplifier. M T X . C O M...
-
Page 2: Product Information
Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations... -
Page 3: Control Functions
CONTROL FUNCTIONS 1. Speakers - Connect speakers/subwoofers to these terminals. Be sure to check wire for proper polarity. Never connect the speaker cables to the chassis ground. 2. +BATT (+12 Volt Power) - Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of the vehicle battery or the positive terminal of an isolated audio system battery. -
Page 4: Panel Layout
PANEL LAYOUT JH3004 4-Channel Amplifier Panel Layout FRONT REAR L CH L CH JH3004 AUTO INPUT INPUT TURN ON MODE LEVEL R CH R CH PRE IN AUDIO SPK IN LINE INPUT + L CH – + R CH – +12V FRONT POWER... - Page 5 PANEL LAYOUT JH7005 5-Channel Amplifier Panel Layout FRONT REAR FRONT REAR L CH L CH L CH JH7005 L CH L CH L CH JH7005 AUTO INPUT INPUT INPUT TURN ON MODE MODE LEVEL AUTO INPUT INPUT INPUT TURN ON MODE MODE LEVEL...
- Page 6 PANEL LAYOUT JH5001 / JH10001 / JH15001 Mono Block Amplifier Panel Layout JH15001 L CH AUTO INPUT TURN ON LEVEL R CH PRE IN LINE INPUT AUDIO SPK IN +12V 1Ω MINIMUM POWER INPUT SPEAKER OUTPUT – – M T X . C O M...
-
Page 7: Wiring Diagram
(GND) terminal on the MTX amplifier. 6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier’s (REM) terminal. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit’s Power Antenna lead. -
Page 8: Installation
INSTALLATION For proper perfomance and safety, MTX recommends installing an inline fuse per the owner’s manual instructions according to the following. JH15001 150A Fuse (External) JH10001 100A Fuse (External) JH5001 60A Fuse JH7005 100A Fuse JH3004 50A Fuse TROUBLESHOOTING Problem... -
Page 9: Specifications
SPECIFICATIONS Model JH15001 JH10001 JH5001 JH7005 JH3004 Mono Block Mono Block Mono Block Class-AB + Description Class-AB Class-D Class-D Class-D Class-D Primary Ratings 60W x 4 from 600W at 4Ω, 400W at 4Ω, 200W at 4Ω, 20-20kHz and 60W x 4 at 4Ω,... -
Page 10: Información Del Producto
MTX, produce un sonido y un rendimiento de calidad superior durante incontables horas de placer, sea que esté despertando a los vecinos o simplemente disfrutando de su música. Felicitaciones, y disfrute de lo máximo en experiencias de audio con MTX. CARACTERÍSTICAS •... - Page 11 10. Filtro de pasaaltas (gama completa de frecuencias). Esto controla las frecuencias que se reproducen por los canales delanteros y transeros. Las frecuencias bajas se pueden eliminar desde apagado 40Hz hasta 250 Hz. 11. Control de modalidad de crossover y frecuencias (gama completa). Estos controles permiten controlar las frecuencias que se reproducen por los canales traseros.
- Page 12 + R CH – SUB – BRIDGE + L CH – + R CH – SUB – BRIDGE DISPOSICIÓN DEL PANEL JH5001 / JH10001 / JH15001 Disposición del panel del amplificador de monobloque JH15001 L CH AUTO INPUT TURN ON LEVEL R CH...
-
Page 13: Diagrama De Cableado
6. Conecte un cable de encendido a distancia de la fuente a la terminal (REM) del amplificador MTX. Si la fuente no tiene cable dedicado al encendido a distancia, puede conectar el cable de la antena eléctrica de la fuente a la terminal (REM) del amplificador MTX. -
Page 14: Instalación
INSTALACIÓN Para un correcto funcionamiento y seguridad MTX recomienda instalar un fusible en línea según las instrucciones del Manual del Propietario de acuerdo a lo siguiente. JH15001 150A Fusible JH10001 100A Fusible JH5001 60A Fusible JH7005 100A Fusible JH3004 50A Fusible DETECCIÓN Y REPARACIÓN DE AVERÍAS... -
Page 15: Especificaciones
ESPECIFICACIONES Modelo JH15001 JH10001 JH5001 JH7005 JH3004 Mono Bloque Mono Bloque de Mono Bloque de Clase-AB + Descripción Clase-AB de banda ancha banda ancha banda ancha Clase-D Calificaciones primarias 60W x 4 de 600W a 4Ω, 400W a 4Ω, 200W a 4Ω, 20-20kHz y 60W x 4 a 4Ω,... -
Page 16: Informações Sobre O Produto
Data de compra INTRODUÇÃO Agradecemos pela sua compra de um amplificador de ·áudio de alto desempenho MTX. Uma instalação bem feita com alto-falantes e subwoofers MTX oferece reprodução sonora e desempenho superiores para horas infindáveis de prazer, quer para acordar os vizinhos ou simplesmente para curtir suas músicas preferidas. - Page 17 11. Modo X-Over e controle de frequência (faixa completa) - Estes controles permitem controlar as frequências reproduzidas para os canais traseiros. Há opções para passa-baixa (LP), faixa completa (FR) ou passa-alta (HP). No modo LP ou HP, a frequência de crossover pode ser ajustada de 45 Hz a 250 Hz. 12.
- Page 18 + R CH – SUB – BRIDGE + L CH – + R CH – SUB – BRIDGE LAYOUT DO PAINEL JH5001 / JH10001 / JH15001 Layout do painel do amplificador monobloco JH15001 L CH AUTO INPUT TURN ON LEVEL R CH...
-
Page 19: Diagrama De Conexão
1. Desconecte o cabo do terminal negativo da bateria do veículo. 2. Escolha o local de instalação do amplificador MTX. Deve haver fluxo de ar suficiente para permitir um bom arrefecimento. Marque os orifícios de montagem do amplificador para serem perfurados. -
Page 20: Solução De Problemas
INSTALAÇÃO Para um desempenho adequado e Segurança MTX recomenda a instalação de um fusível em linha por Manual de Instruções do Proprietário de acordo com o seguinte. JH15001 150A Fusível JH10001 100A Fusível JH5001 60A Fusível JH7005 100A Fusível JH3004 50A Fusível... - Page 21 ESPECIFICAÇÕES Modelo JH15001 JH10001 JH5001 JH7005 JH3004 Mono Bloco Mono Bloco Mono Bloco Class-AB + Descrição gama larga gama larga gama larga Class-AB Class-D Class-D Class-D Class-D Classificações primárias 60W x 4 de 600W a 4Ω, 400W a 4Ω, 200W a 4Ω, 20-20kHz e 60W x 4 a 4Ω,...
-
Page 22: Informations Sur Le Produit
Merci de votre achat de l’amplificateur audio MTX hautes performance. Son installation correcte associée à des haut-parleurs et des caissons de graves MTX vous apportera un son et des performances de qualité supérieure que vous apprécierez pendant des heures en diffusant de la musique pour le plaisir de vos voisins ou simplement de vous-même. - Page 23 10. Filtre passe-haut (pleine gamme) – Ceci contrôle les fréquences provenant des canaux avant et arrière. La coupure des basses fréquences peut être réglée de la position 40 Hz à 250 Hz. 11. Commande du mode répartiteur et commande de la fréquence (pleine gamme) – Ces commandes permettent de contrôler les fréquences pour les canaux arrière.
- Page 24 + R CH – SUB – BRIDGE + L CH – + R CH – SUB – BRIDGE PRESENTATION DU PANNEAU JH5001/JH10001/JH15001 Présentation du panneau de l’amplificateur monobloc JH15001 L CH AUTO INPUT TURN ON LEVEL R CH PRE IN...
-
Page 25: Schema De Cablage
6. Raccordez un fil de mise en marche à distance de l’unité source à la borne (REM) de l’amplificateur MTX. Si l’appareil source n’est pas doté d’un fil de mise en marche à distance dédié, vous pouvez brancher la borne REM de l’amplificateur MTX au fil d’antenne électrique de l’appareil source. -
Page 26: En Cas De Difficulte
INSTALLATION Pour la bonne exécution et de la sécurité MTX recommande d’installer un fusible en ligne par les instructions du mode d’emploi selon la formule suivante. JH15001 150A Fusible JH10001 100A Fusible JH5001 60A Fusible JH7005 100A Fusible JH3004 50A Fusible EN CAS DE DIFFICULTE Problème... -
Page 27: Caracteristiques Techniques
CARACTERISTIQUES TECHNIQUES Modèle JH15001 JH10001 JH5001 JH7005 JH3004 Mono canal Mono canal Mono canal Classe-AB + Description large bande large bande large bande Classe-AB Classe-D Classe-D Classe-D Classe-D Classement primaire 60W x 4 de Puissance 600W à 4Ω, 400W à 4Ω, 200W à... -
Page 28: Wiring Diagram
WIRING DIAGRAM Mono Block Amplifier Wiring (Single Subwoofer Load) FUSE 1 Ohm Minimum Remote Signal Source Unit RCA Signal JH15001 L CH AUTO INPUT TURN ON LEVEL R CH PRE IN LINE INPUT AUDIO SPK IN M T X . C O M... - Page 29 NOTA: La carga equivalente de woofers paralelos no puede ser menos que el valor nominal de la carga. Estos son amplificadores de monobloque, no amplificadores multicanal. La carga mínima para el amplificador JH15001, JH10001 y JH5001 es 1 Ω. La carga mínima para la canal de subwoofer de amplificador JH7005 es 2 Ω.
- Page 30 WIRING DIAGRAM JH3004 Amplifier Wiring (4-Channel Mode) Crossover Crossover FUSE Remote Signal Crossover Crossover Source Unit RCA Signal RCA Signal FRONT REAR L CH L CH JH3004 AUTO INPUT INPUT TURN ON MODE LEVEL R CH R CH PRE IN AUDIO SPK IN LINE INPUT...
- Page 31 WIRING DIAGRAM JH3004 Amplifier Wiring (3-Channel Mode) Crossover Crossover FUSE Remote Signal Source Unit 4-Ohm to 8-Ohm RCA Signal RCA Signal FRONT REAR L CH L CH JH3004 AUTO INPUT INPUT TURN ON MODE LEVEL R CH R CH PRE IN AUDIO SPK IN LINE INPUT...
- Page 32 WIRING DIAGRAM JH7005 Amplifier Wiring (5-Channel Mode) Crossover 2-Ohm to 4-Ohm Crossover FUSE Remote Signal Crossover Crossover Source Unit RCA Signal RCA Signal FRONT REAR L CH L CH L CH JH7005 AUTO INPUT INPUT INPUT TURN ON MODE MODE LEVEL R CH R CH...
- Page 33 NOTES: M T X . C O M...
- Page 34 NOTES: M T X . C O M...
-
Page 35: Warranty Information
WARRANTY INFORMATION Mitek Mobile products (including MTX, Streetwires, Coustic and Magnum) purchased in the USA after 1/1/2015 from an authorized Mitek retailer are guaranteed to be free from material defects in products and workmanship for two (2) years to the original end user purchaser, subject to the terms and conditions below. - Page 36 © 2019 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.
