RS232C (RF4QR/NA GB Operation Board)
Fri. Sept., 06/2002

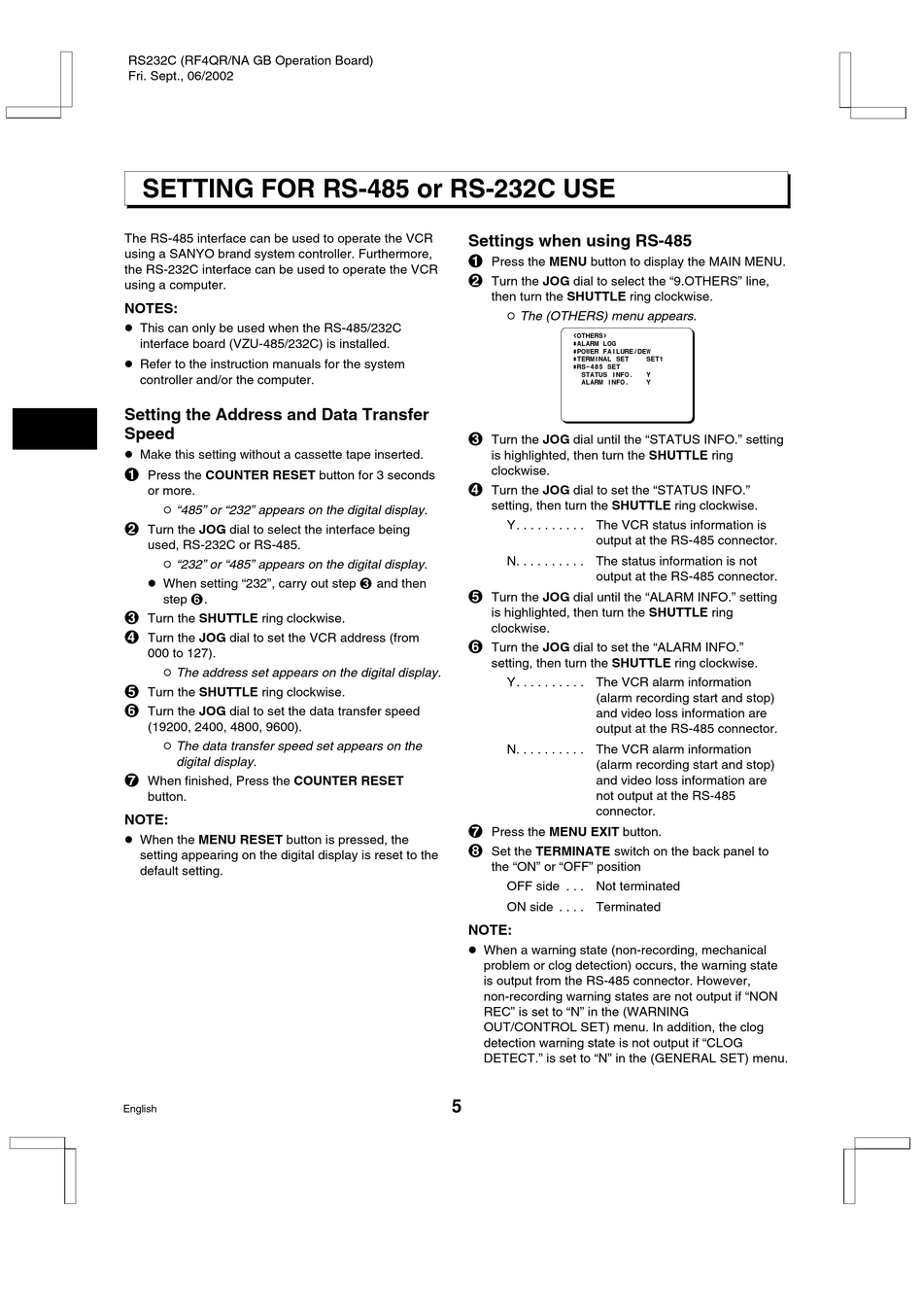

SETTING FOR RS-485 or RS-232C USE

The RS-485 interface can be used to operate the VCR
using a SANYO brand system controller. Furthermore,
the RS-232C interface can be used to operate the VCR
using a computer.
NOTES:
œ This can only be used when the RS-485/232C
interface board (VZU-485/232C) is installed.
œ Refer to the instruction manuals for the system
controller and/or the computer.
Setting the Address and Data Transfer
Speed
œ Make this setting without a cassette tape inserted.
1
Press the COUNTER RESET button for 3 seconds
or more.
ø "485" or "232" appears on the digital display.
2
Turn the JOG dial to select the interface being
used, RS-232C or RS-485.
ø "232" or "485" appears on the digital display.
œ When setting "232", carry out step 3 and then
step 6.
3
Turn the SHUTTLE ring clockwise.
4
Turn the JOG dial to set the VCR address (from
000 to 127).
ø The address set appears on the digital display.
5
Turn the SHUTTLE ring clockwise.
6
Turn the JOG dial to set the data transfer speed
(19200, 2400, 4800, 9600).
ø The data transfer speed set appears on the
digital display.
7
When finished, Press the COUNTER RESET
button.
NOTE:
œ When the MENU RESET button is pressed, the
setting appearing on the digital display is reset to the
default setting.
English
Settings when using RS-485
1
Press the MENU button to display the MAIN MENU.
2
Turn the JOG dial to select the "9.OTHERS" line,
then turn the SHUTTLE ring clockwise.
ø The (OTHERS) menu appears.
<OTHERS>
*ALARM@LOG
*POWER@FAILURE/DEW
*TERMINAL@SET@@@@SET1
*RS-485@SET
@@STATUS@INFO.@@@Y
@@ALARM@INFO.@@@@Y
3
Turn the JOG dial until the "STATUS INFO." setting
is highlighted, then turn the SHUTTLE ring
clockwise.
4
Turn the JOG dial to set the "STATUS INFO."
setting, then turn the SHUTTLE ring clockwise.
Y. . . . . . . . . . The VCR status information is
output at the RS-485 connector.
N. . . . . . . . . . The status information is not
output at the RS-485 connector.
5
Turn the JOG dial until the "ALARM INFO." setting
is highlighted, then turn the SHUTTLE ring
clockwise.
6
Turn the JOG dial to set the "ALARM INFO."
setting, then turn the SHUTTLE ring clockwise.
Y. . . . . . . . . . The VCR alarm information
(alarm recording start and stop)
and video loss information are
output at the RS-485 connector.
N. . . . . . . . . . The VCR alarm information
(alarm recording start and stop)
and video loss information are
not output at the RS-485
connector.
7
Press the MENU EXIT button.
8
Set the TERMINATE switch on the back panel to
the "ON" or "OFF" position
OFF side . . . Not terminated
ON side . . . . Terminated
NOTE:
œ When a warning state (non-recording, mechanical
problem or clog detection) occurs, the warning state
is output from the RS-485 connector. However,
non-recording warning states are not output if "NON
REC" is set to "N" in the (WARNING
OUT/CONTROL SET) menu. In addition, the clog
detection warning state is not output if "CLOG
DETECT." is set to "N" in the (GENERAL SET) menu.
5
