RS232C (RF4QR/NA GB Operation Board)
Fri. Sept., 06/2002

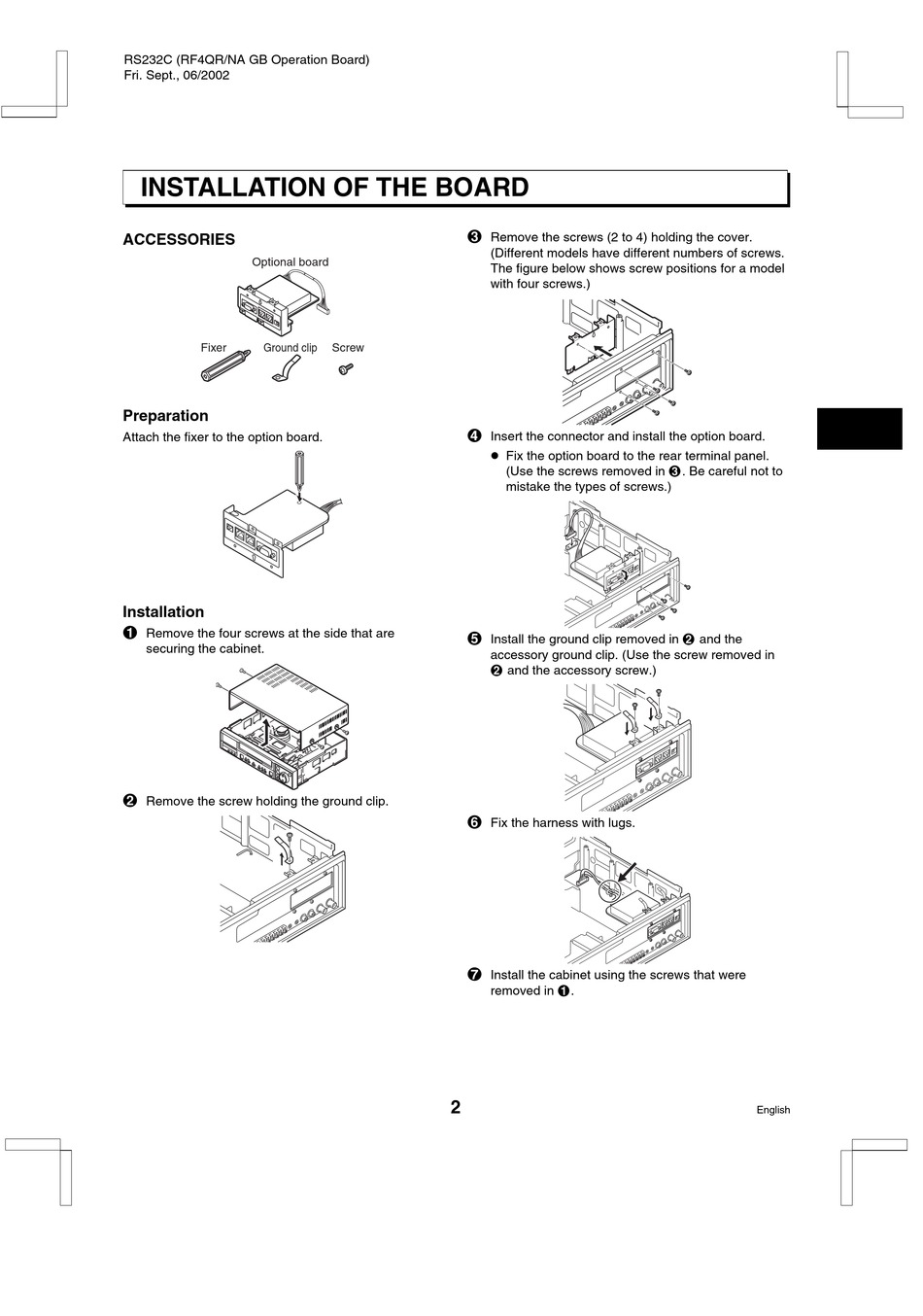

INSTALLATION OF THE BOARD
ACCESSORIES
Optional board
Fixer
Ground clip
Preparation
Attach the fixer to the option board.
Installation
1
Remove the four screws at the side that are
securing the cabinet.
2
Remove the screw holding the ground clip.
3
Remove the screws (2 to 4) holding the cover.
(Different models have different numbers of screws.
The figure below shows screw positions for a model
with four screws.)
Screw
4
Insert the connector and install the option board.
œ Fix the option board to the rear terminal panel.
(Use the screws removed in 3. Be careful not to
mistake the types of screws.)
5
Install the ground clip removed in 2 and the
accessory ground clip. (Use the screw removed in
2 and the accessory screw.)
6
Fix the harness with lugs.
7
Install the cabinet using the screws that were
removed in 1.
2
English
